TrakMotive NI-8202 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

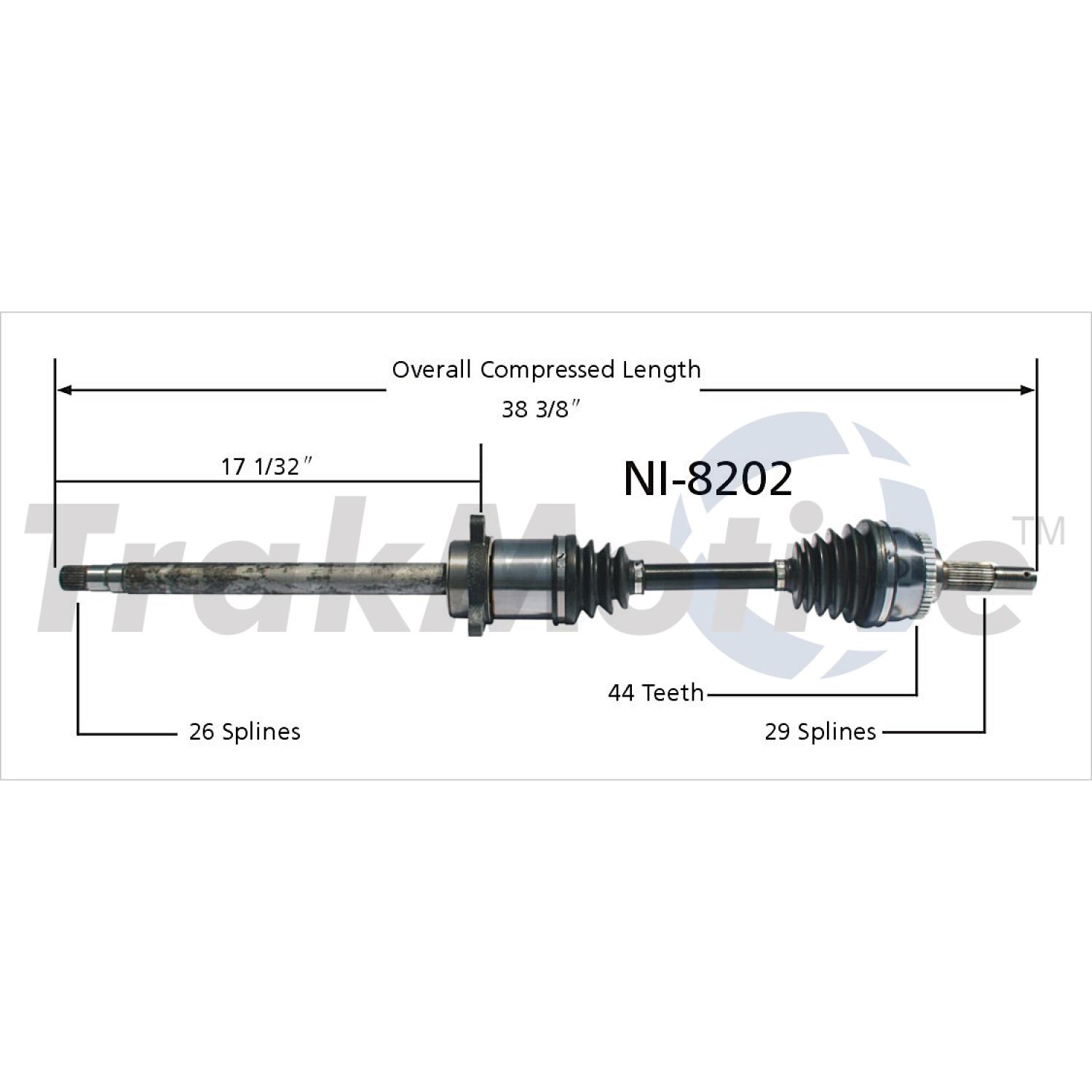

Overall Compressed Length (mm)	975
Overall Compressed Length (in)	38.39
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	26
Number Of Outboard Splines	29
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	44
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	35
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.71
Axle Nut Length (in)	1.57
Axle Nut Height (mm)	18
Axle Nut Length (mm)	40
Axle Nut Locking Type	Standard
Axle Nut Hex Size (in)	1.375
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	35
UPC	844084072023
Origin Country:	CN
Weight:	23.17Lb. (10.54 kg.)
Package Dimensions:	45.3" x 5.1" x 5.1" (115 cm x 13 cm x 13 cm)

1 Year Warranty
