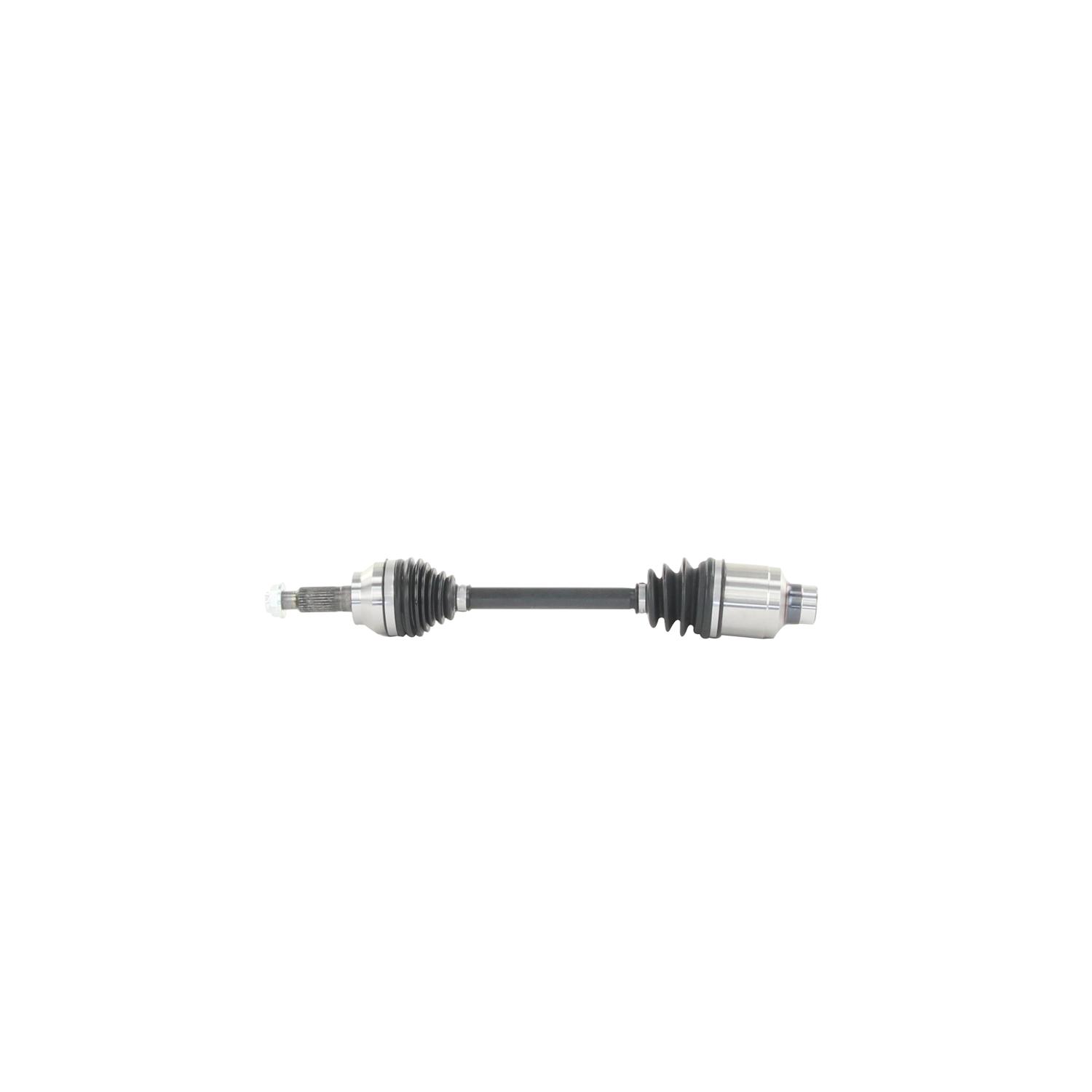

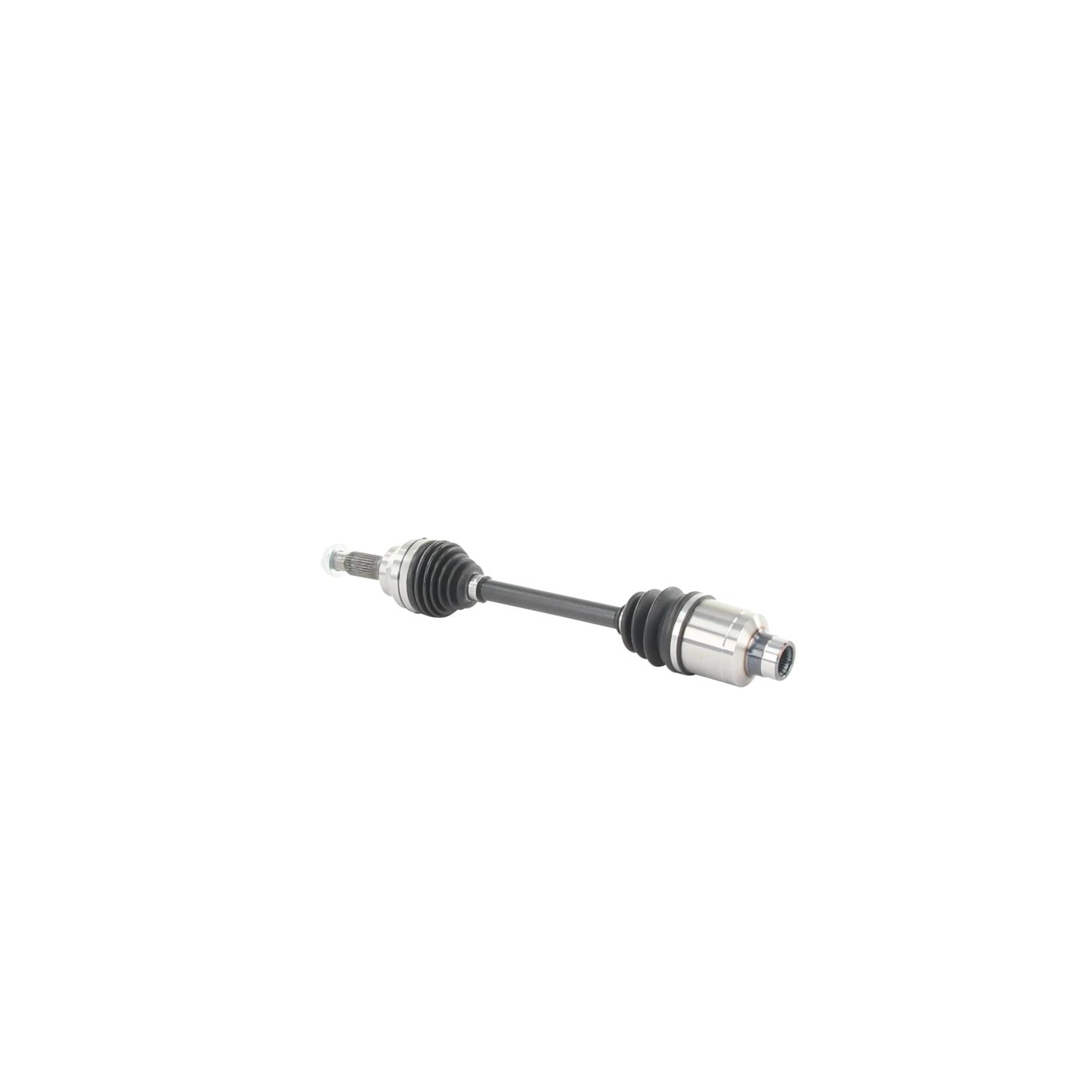

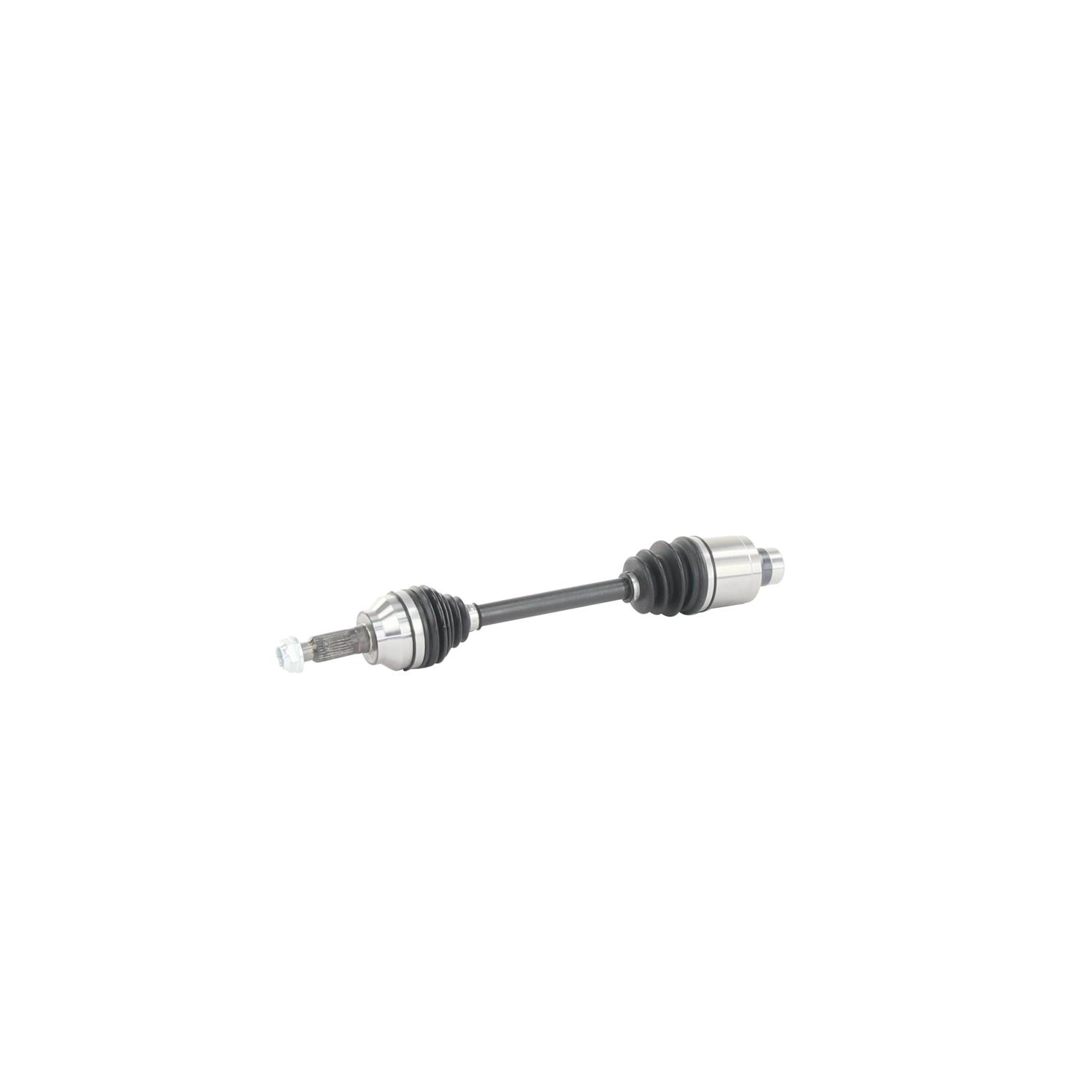

TrakMotive MZ-86001 CV Axle Shaft

AAR CV Axle Shaft

$155.01 CAD

In Stock

Ships: Today, Oct. 17th

Pick-Up: Ready in 1 Hour (Order before 4:00 PM)

Stock #: MZ86001

Condition: New

UPC: 00840140507164

Weight: 13.98 lb.(6.36 kg.)

Dimensions: 26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	557
Overall Compressed Length (in)	21.93
Overall Extended Length (in)	23.86
Overall Extended Length (mm)	606
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	28-2T
Number Of Outboard Splines	28
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (mm)	19
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Outboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00840140507164
Origin Country:	CN
Weight:	13.98Lb. (6.36 kg.)
Package Dimensions:	26.8" x 4.3" x 4.3" (68 cm x 11 cm x 11 cm)
