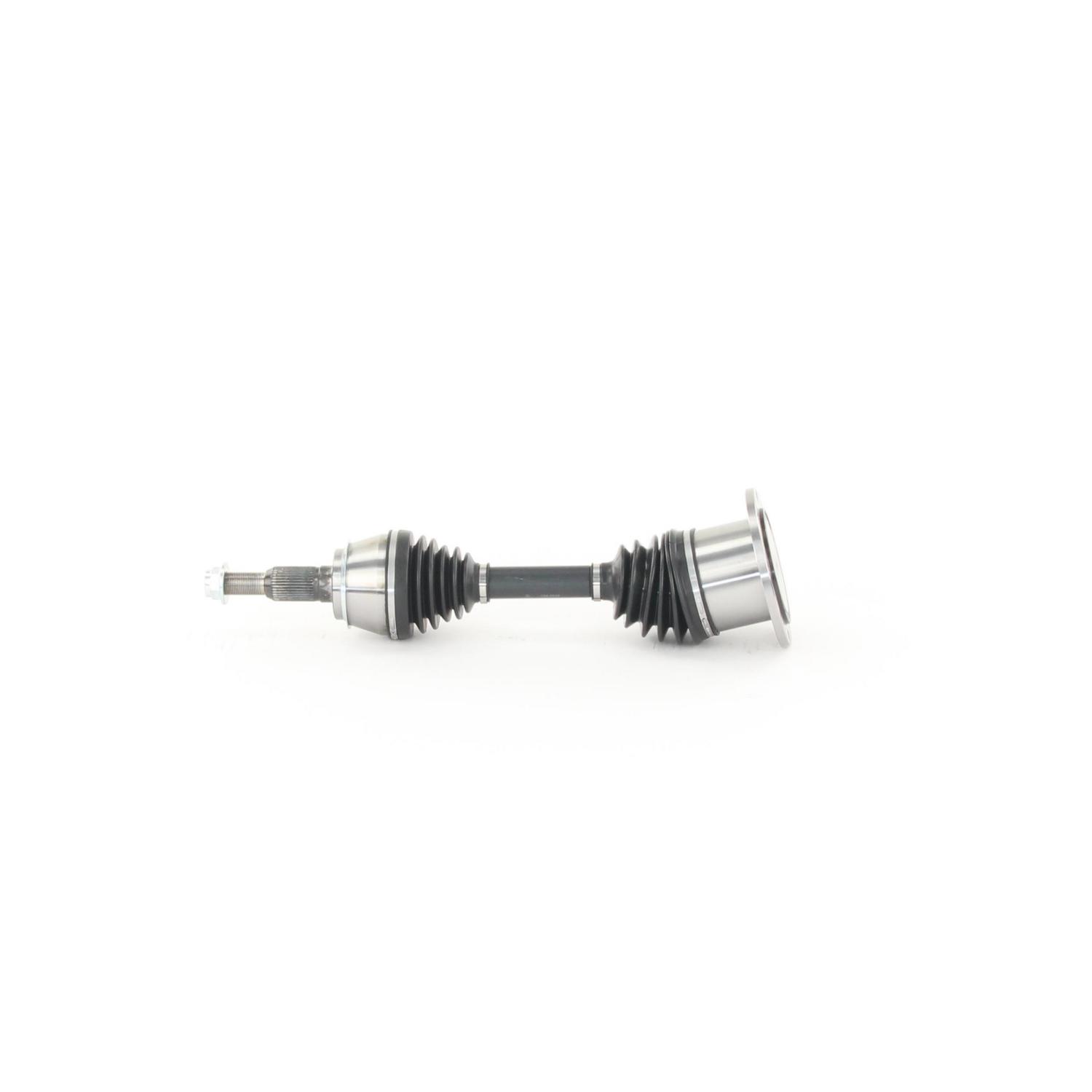

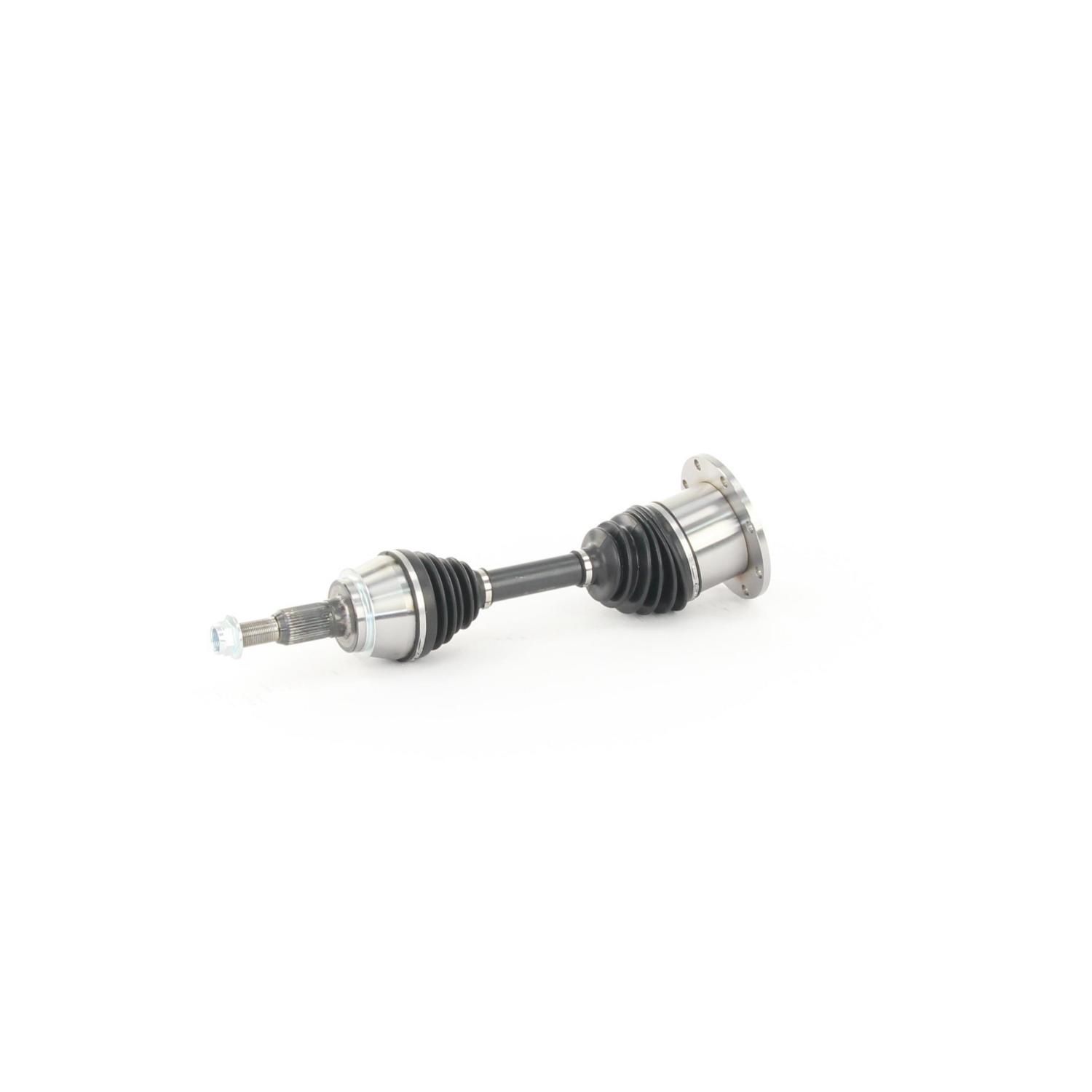

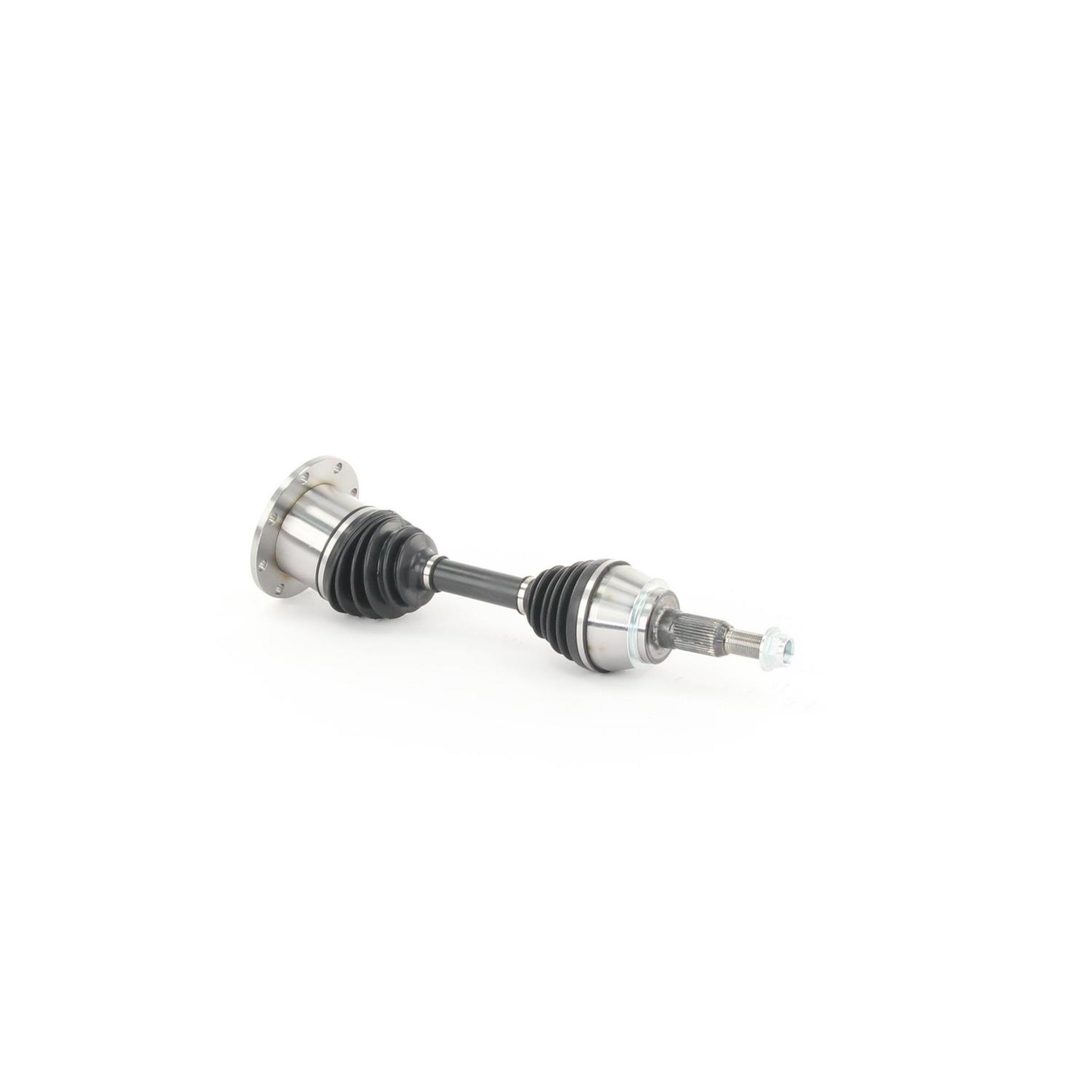

TrakMotive GM-8519 CV Axle Shaft

CV Axle Shaft

$248.37 CAD

10+ In Stock

Ships: Today, Oct. 16th

Pick-Up: Ready in 2-3 Hours (Order before 3:00 PM)

Stock #: GM8519

Condition: New

UPC: 00840140506587

Weight: 30.67 lb.(13.95 kg.)

Dimensions: 33.5" x 7.9" x 7.9" (85 cm x 20 cm x 20 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	582
Overall Compressed Length (in)	25.61
Overall Extended Length (in)	25.61
Overall Extended Length (mm)	651
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	33
Axle Nut Thread Size	M27x2
Axle Nut Head Type	Hex
Axle Nut Height (mm)	22
Axle Nut Length (mm)	38
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	8
Grade Type	Premium
Axle Nut Socket Size	33
UPC	00840140506587
Origin Country:	CN
Weight:	30.67Lb. (13.95 kg.)
Package Dimensions:	33.5" x 7.9" x 7.9" (85 cm x 20 cm x 20 cm)
