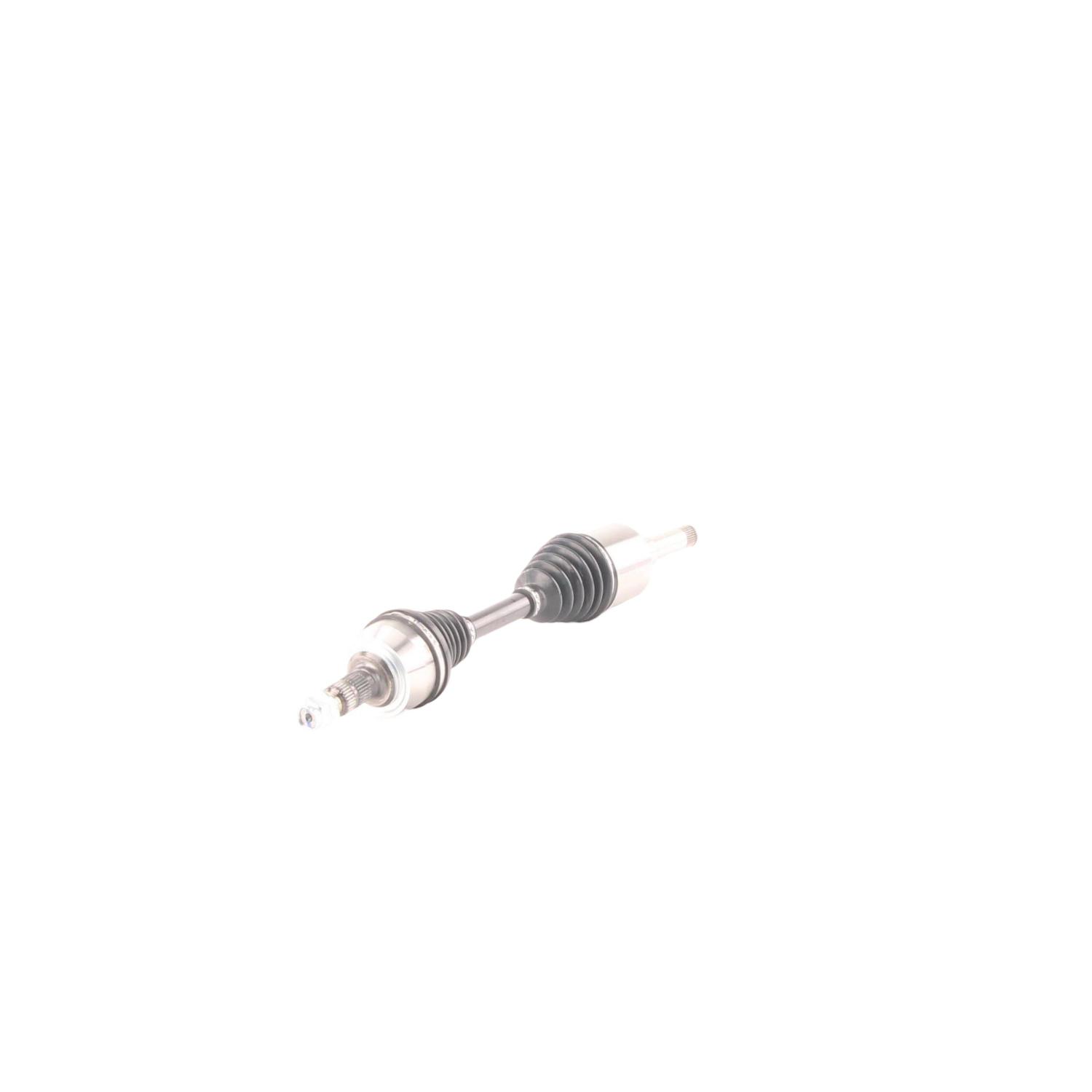

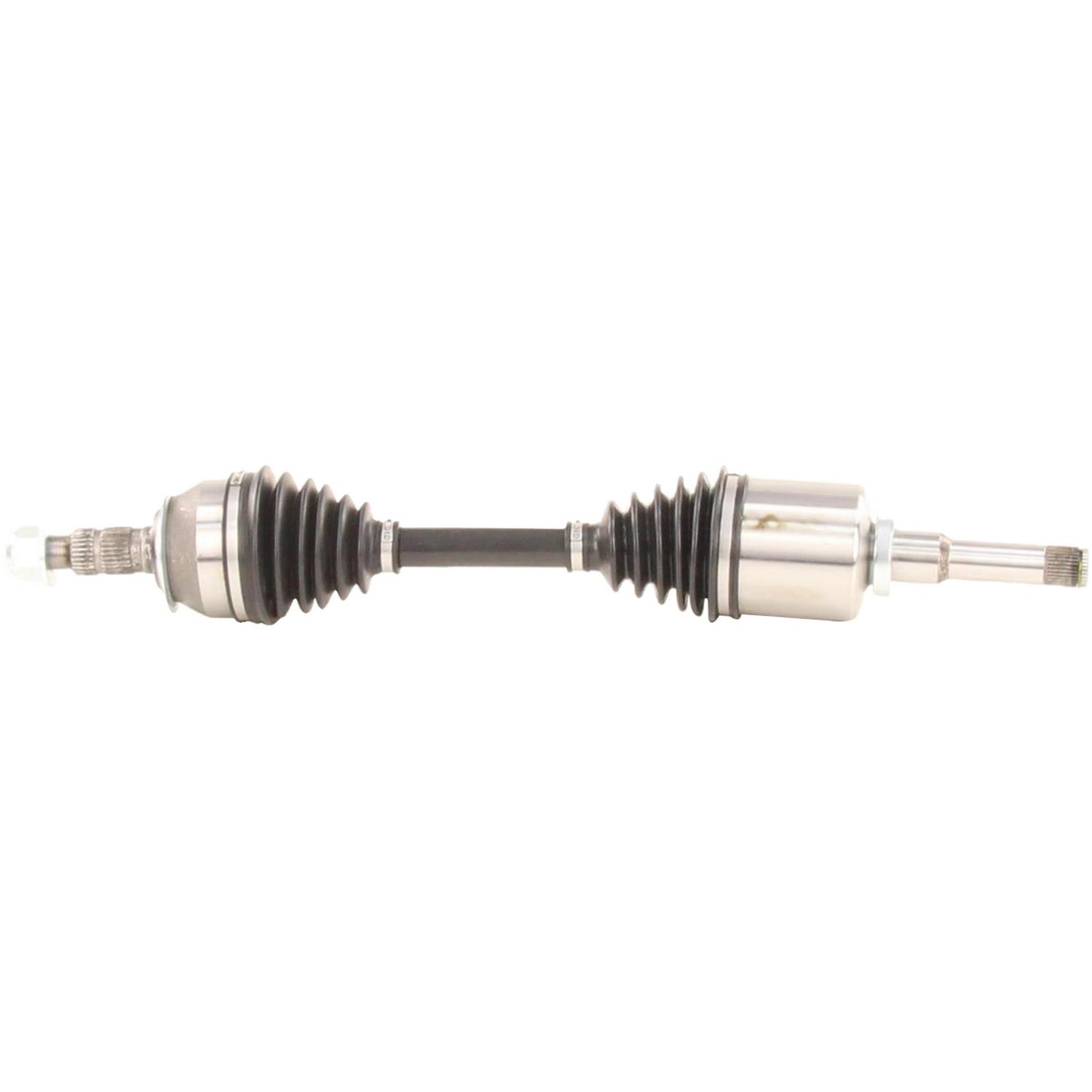

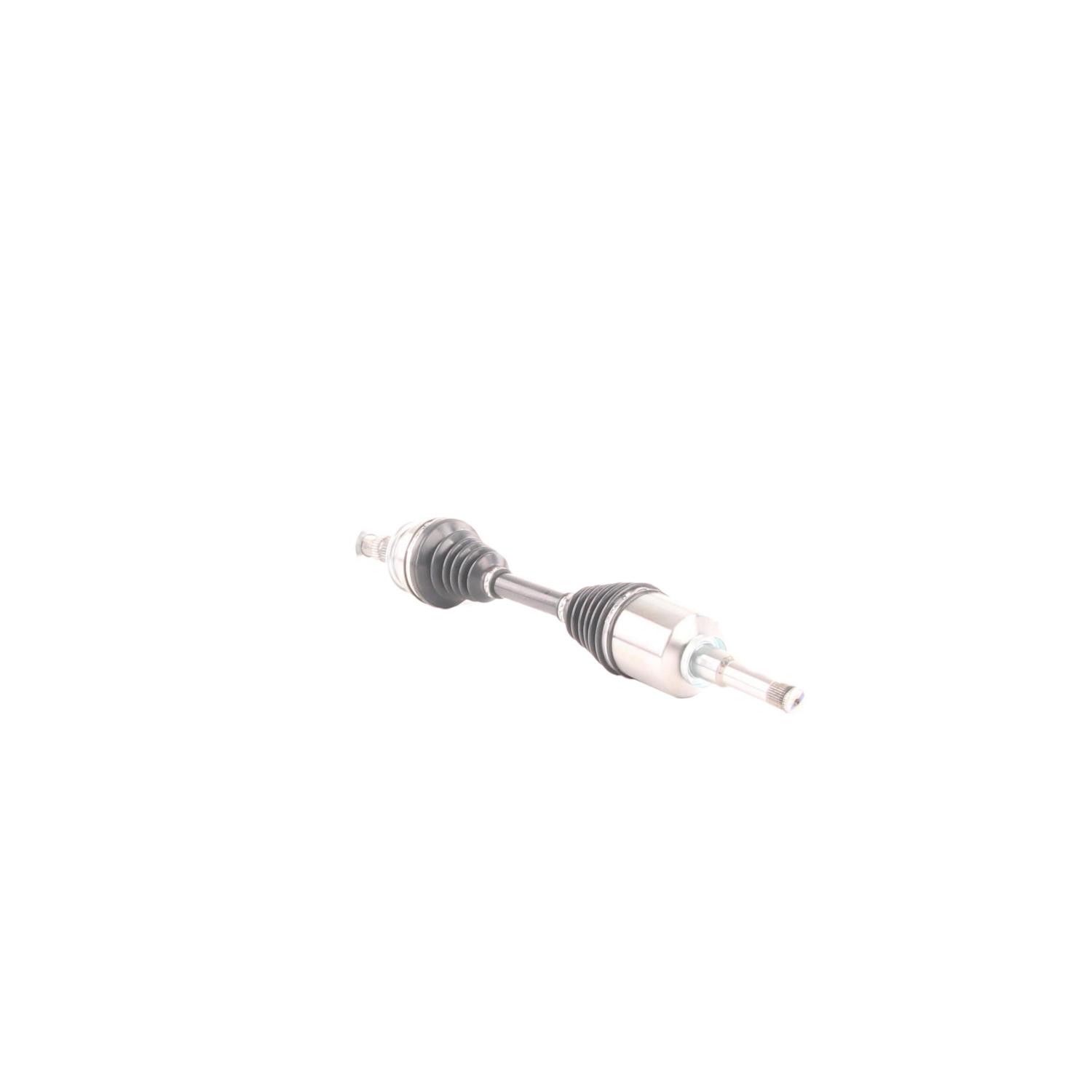

TrakMotive GM-8485 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	661
Overall Compressed Length (in)	26.02
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	34
Number Of Outboard Splines	30
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	1.1
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	28
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084095510
Origin Country:	CN
Weight:	18.79Lb. (8.54 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

1 Year Warranty

TrakMotive GM-8485 CV Axle Shaft
