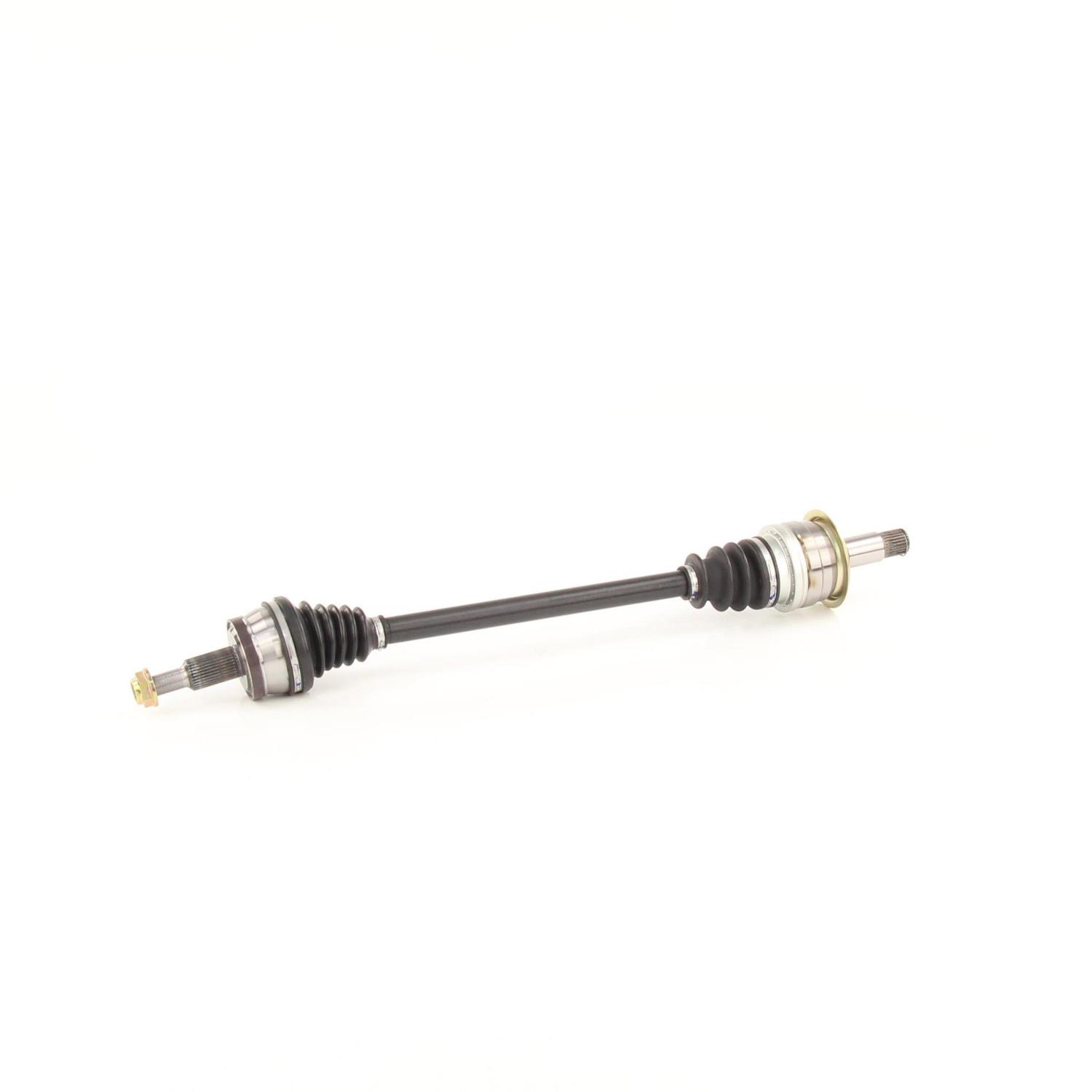

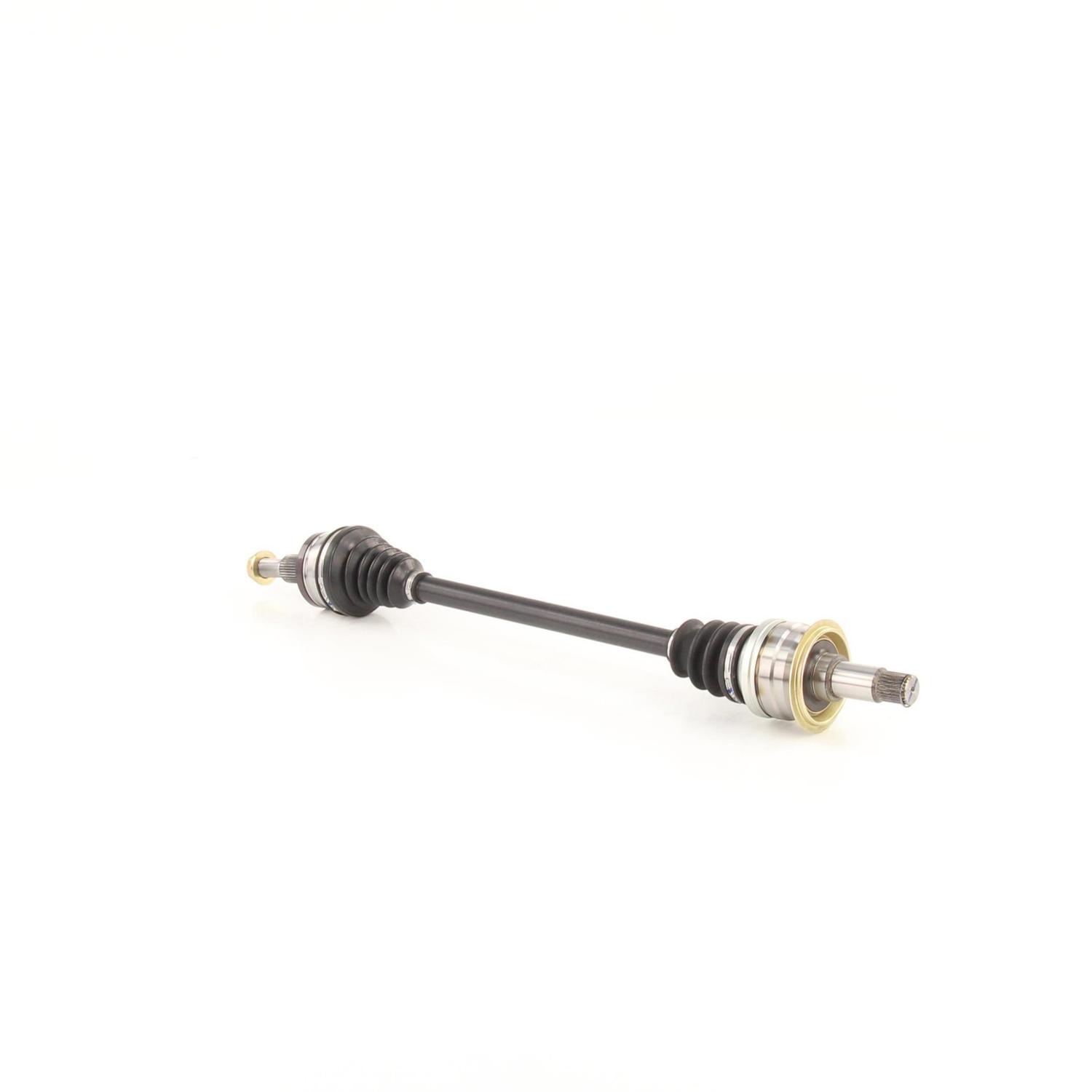

TrakMotive CH-8286 CV Axle Shaft

Name: TrakMotive CH-8286 CV Axle Shaft
Brand: TrakMotive
SKU: CH8286
Price: 187.8 CAD
Availability: InStock

CV Axle Shaft

$187.80 CAD

10+ In Stock

Ships: Monday Sep. 22nd

Pick-Up: Ready in 1 Hour Monday Sep. 22nd

Stock #: CH8286

Condition: New

UPC: 844084012869

Weight: 19.65 lb.(8.93 kg.)

Dimensions: 37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

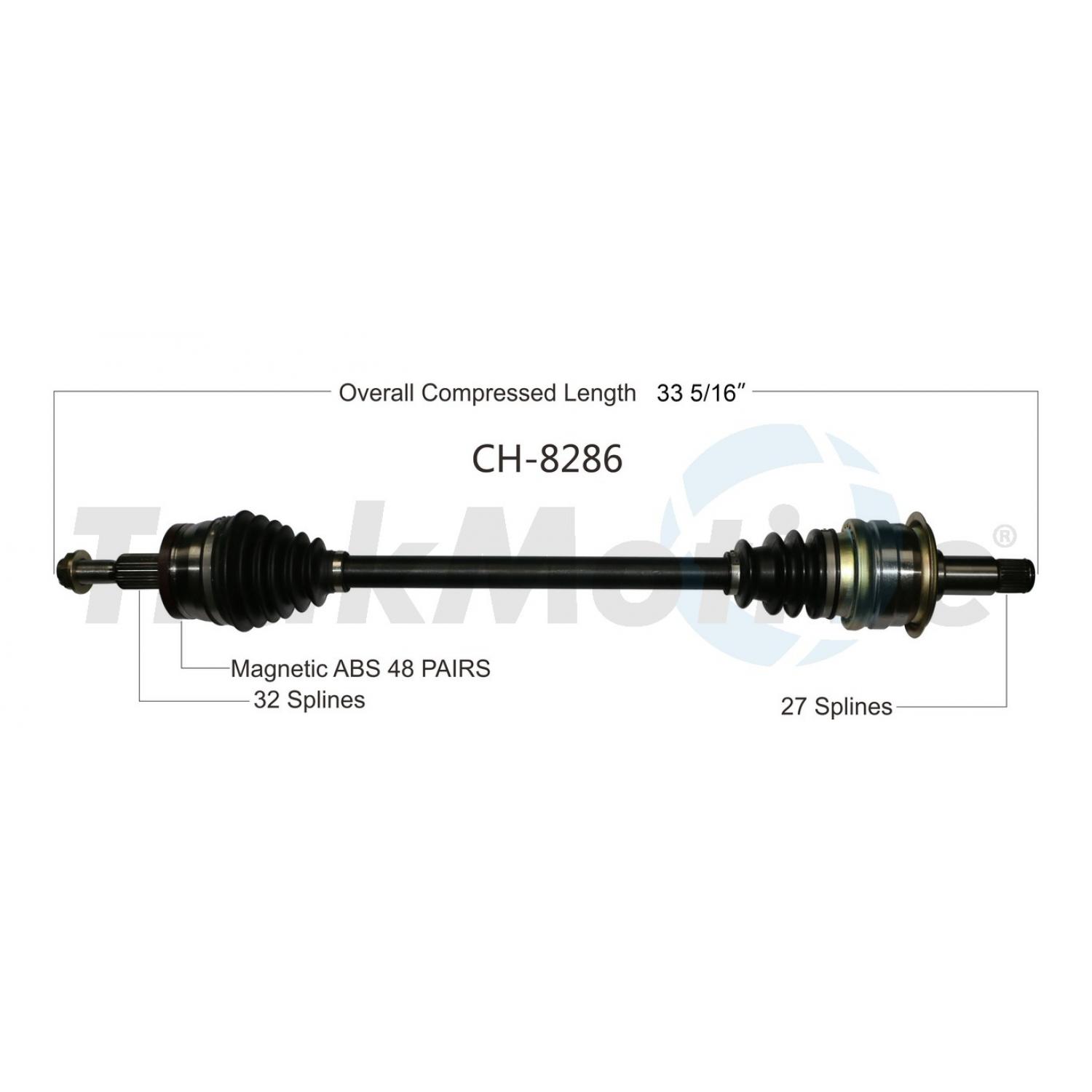

Overall Compressed Length (mm)	846
Overall Compressed Length (in)	33.31
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	27
Number Of Outboard Splines	32
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	48
Abs Ring Type	Magnetic
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.75
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	19
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084012869
Origin Country:	CN
Weight:	19.65Lb. (8.93 kg.)
Package Dimensions:	37.4" x 4.3" x 4.3" (95 cm x 11 cm x 11 cm)
