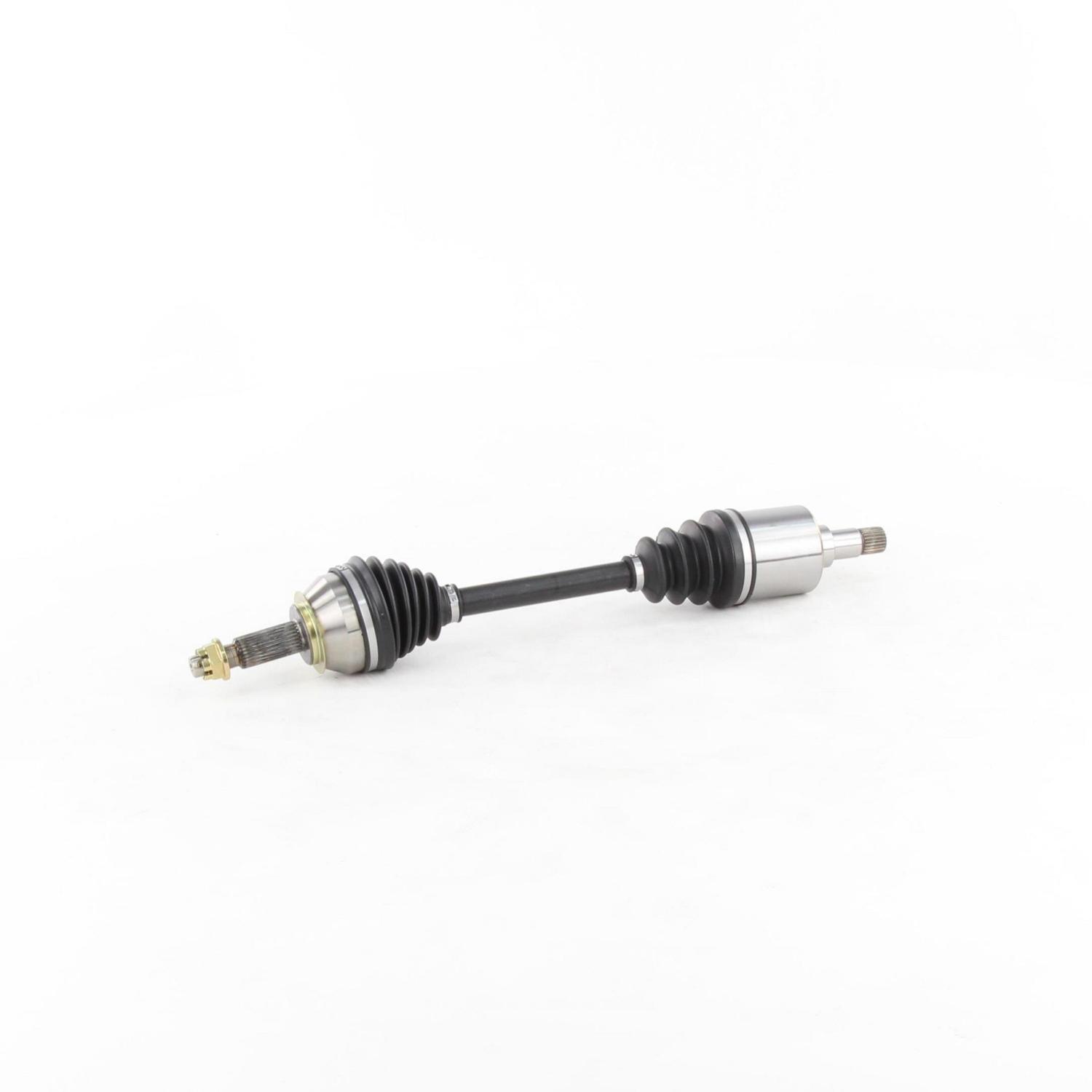

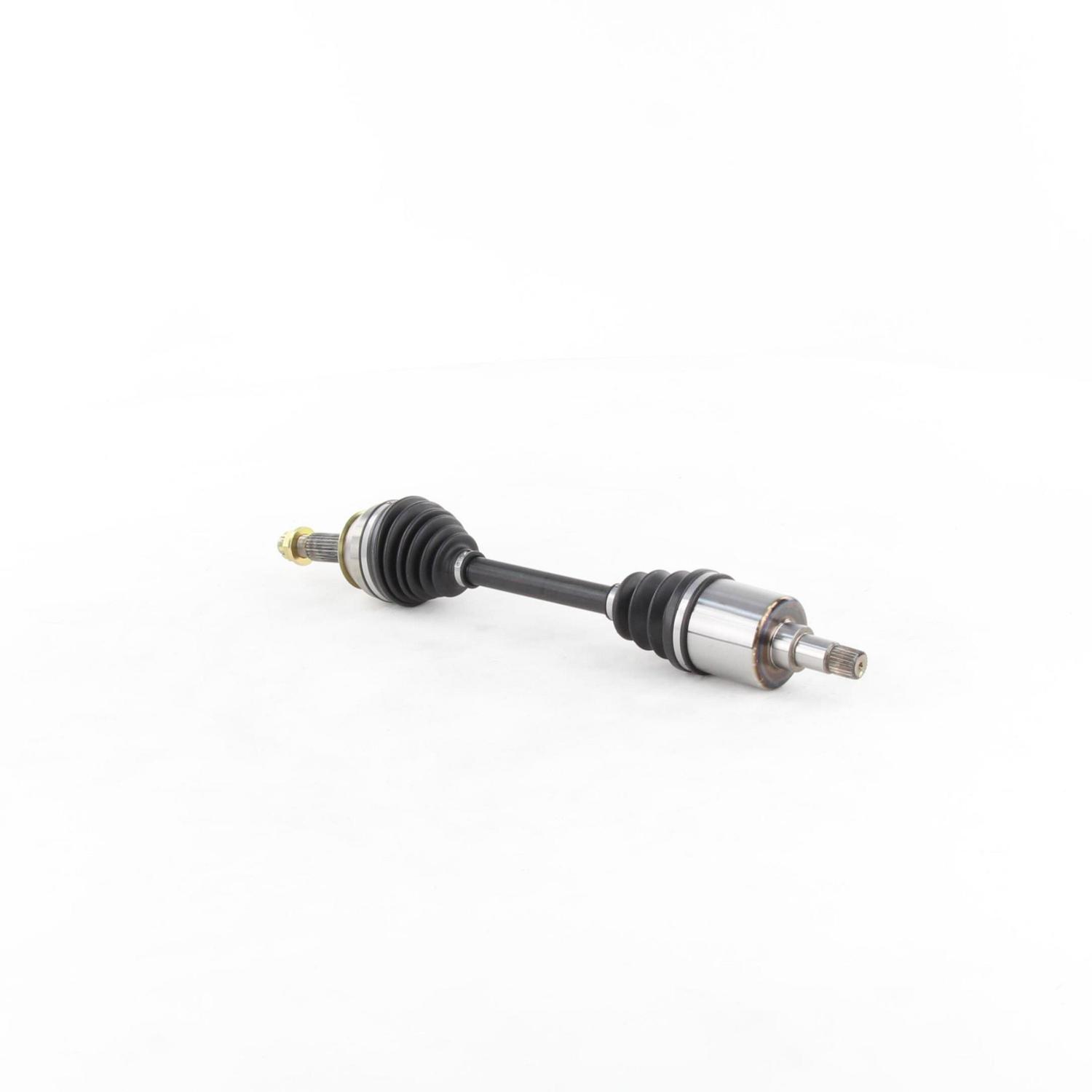

TrakMotive CH-8052 CV Axle Shaft

Name: TrakMotive CH-8052 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-ch8052
Price: 100.09 CAD
Availability: InStock

CV Axle Shaft

$158.20$100.09 CAD

In Stock

Ships: Today, Dec. 2nd

Pick-Up: Ready in 1 Hour (Order before 4:00 PM)

Stock #: CH8052

Condition: New

UPC: 844084010520

Weight: 15.05 lb.(6.84 kg.)

Dimensions: 31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

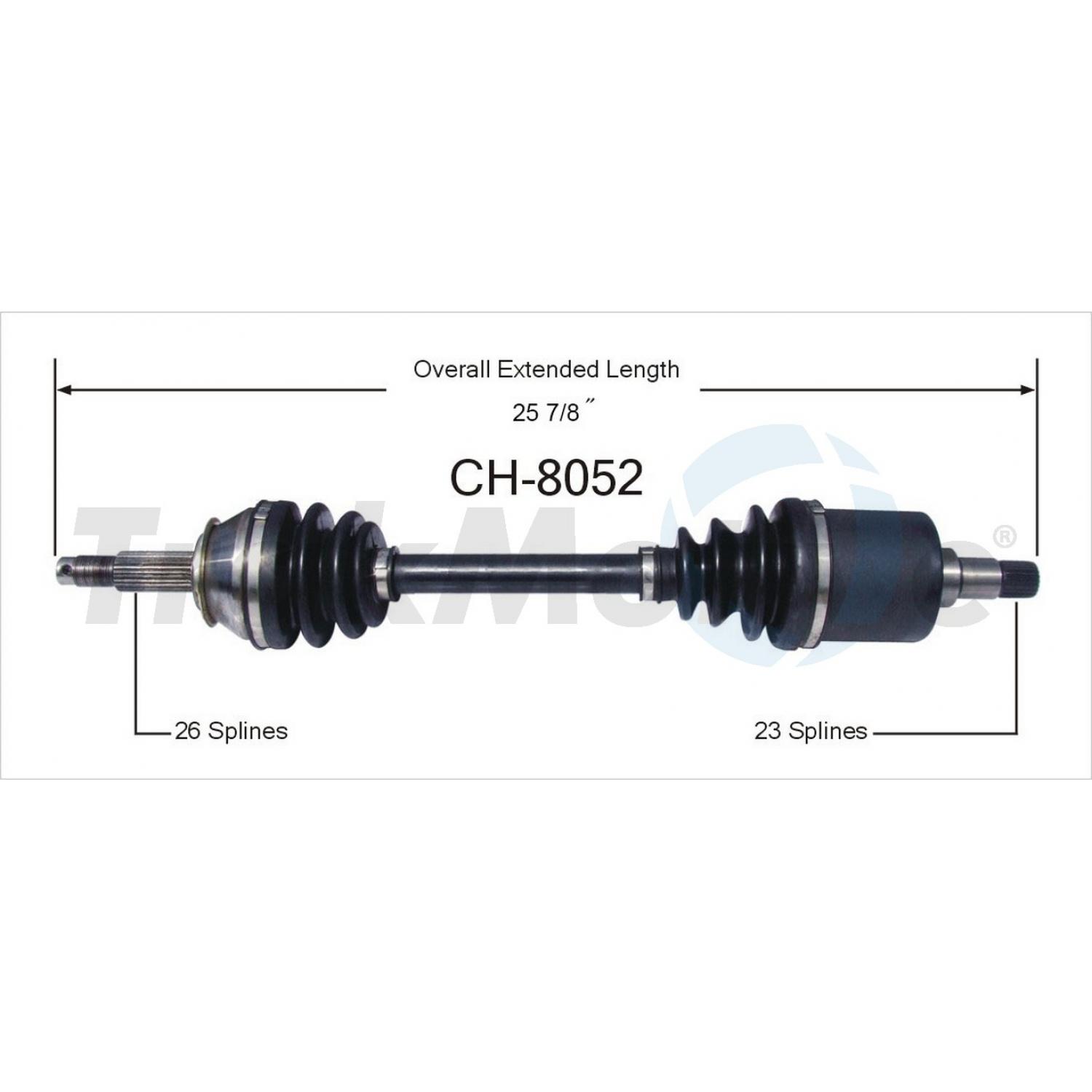

Overall Compressed Length (mm)	612
Overall Compressed Length (in)	24.09
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	23
Number Of Outboard Splines	26
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	30
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.83
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	21
Axle Nut Length (mm)	35
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.67
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	30
UPC	844084010520
Origin Country:	CN
Weight:	15.05Lb. (6.84 kg.)
Package Dimensions:	31.1" x 4.3" x 4.3" (79 cm x 11 cm x 11 cm)
