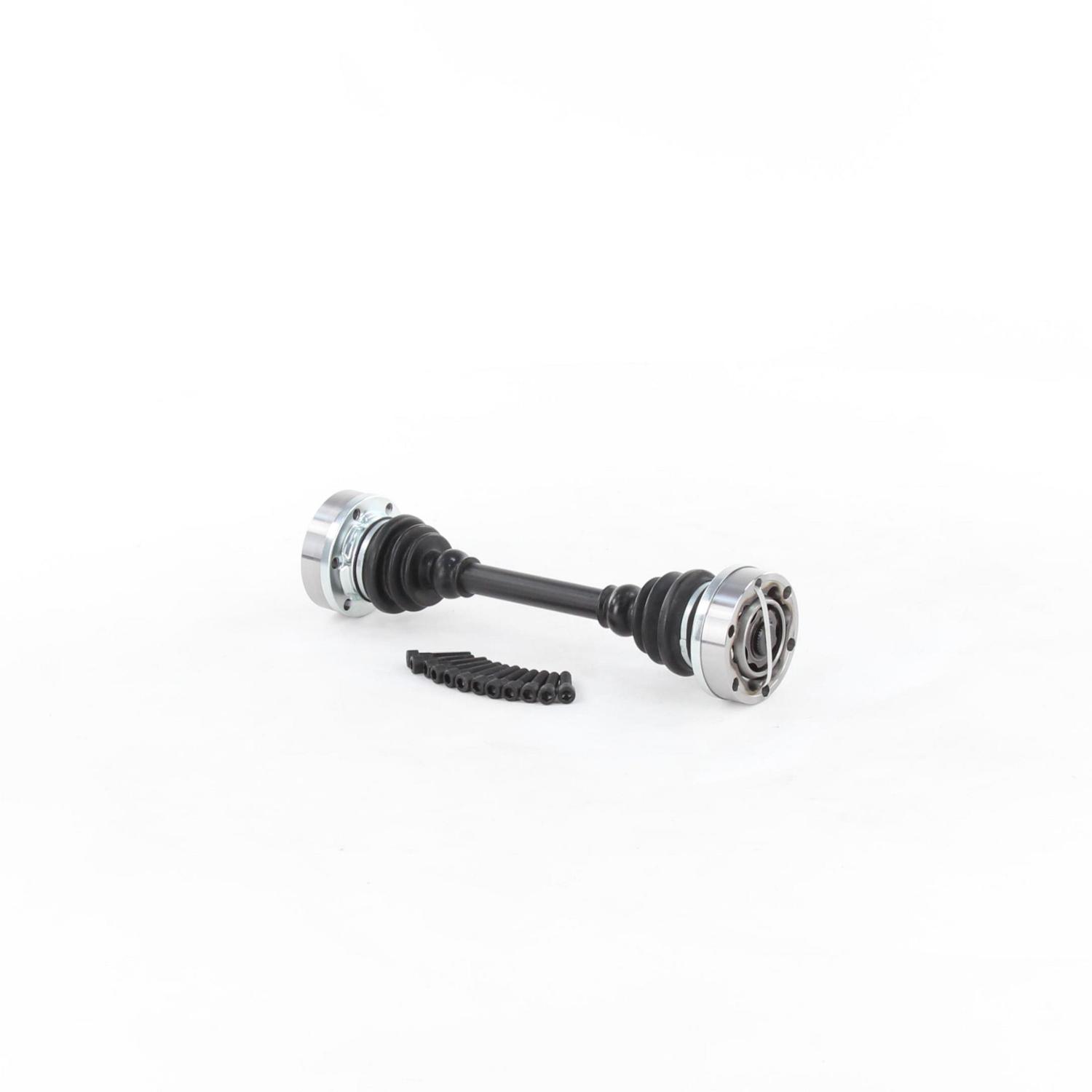

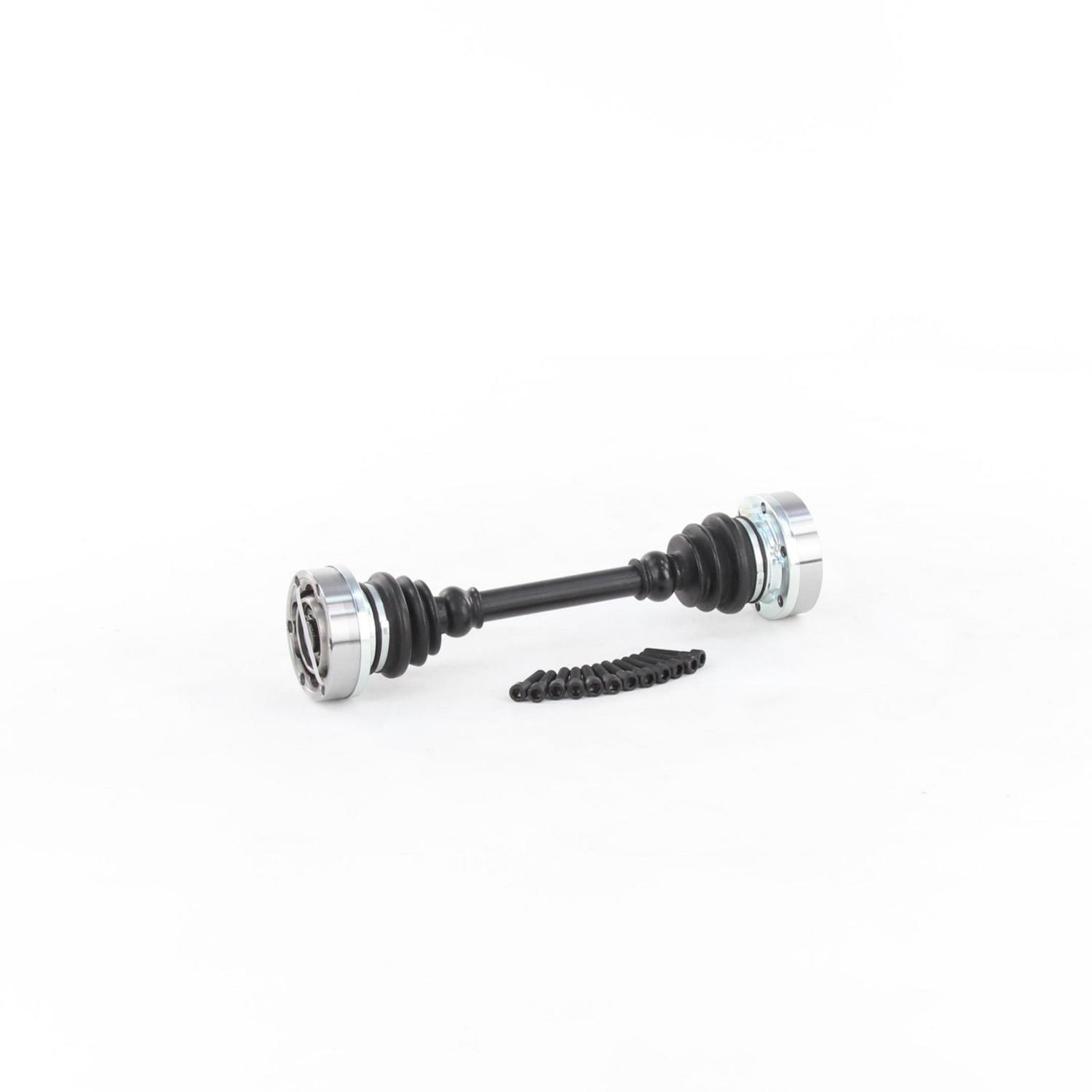

TrakMotive BM-8002 CV Axle Shaft in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

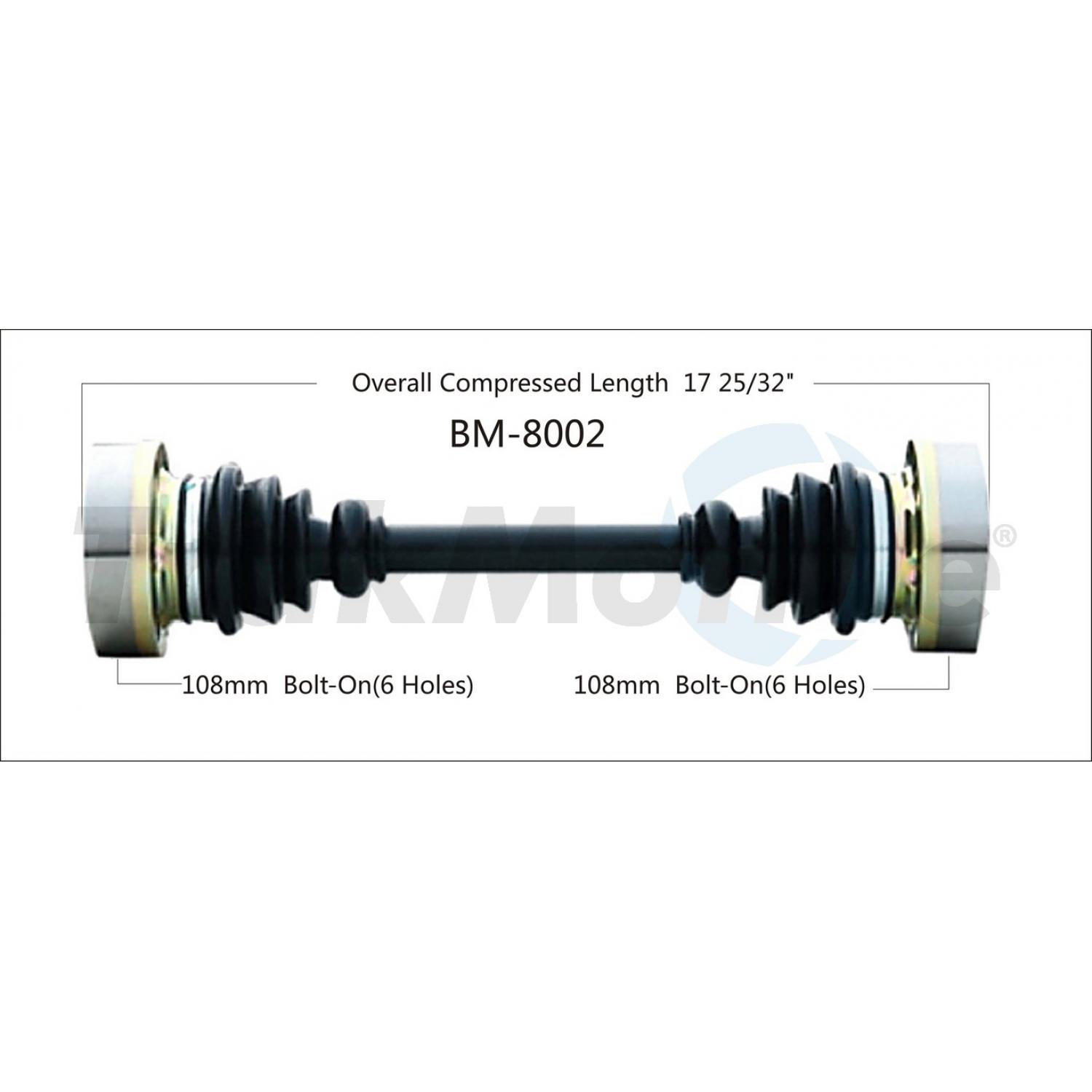

Overall Compressed Length (mm)	452
Overall Compressed Length (in)	17.8
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Bolt-on
Number Of Inboard Splines	0
Number Of Outboard Splines	0
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	No
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	8
Inboard Bolt Head Size (in)	.33
Inboard Bolt Length (mm)	55
Inboard Bolt Length (in)	2.17
Outboard Bolt Head Type	Allen
Outboard Bolt Head Size (mm)	8
Outboard Bolt Head Size (in)	.33
Outboard Bolt Length (mm)	55
Outboard Bolt Length (in)	2.17
Outboard Joint Bolt Thread Size	M10x1.5
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Bolt-on
Outboard Joint Type	Bolt-on
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	6
Grade Type	Premium
UPC	844084005021
Origin Country:	CN
Weight:	14.86Lb. (6.76 kg.)
Package Dimensions:	24" x 5.1" x 5.1" (61 cm x 13 cm x 13 cm)

1 Year Warranty
