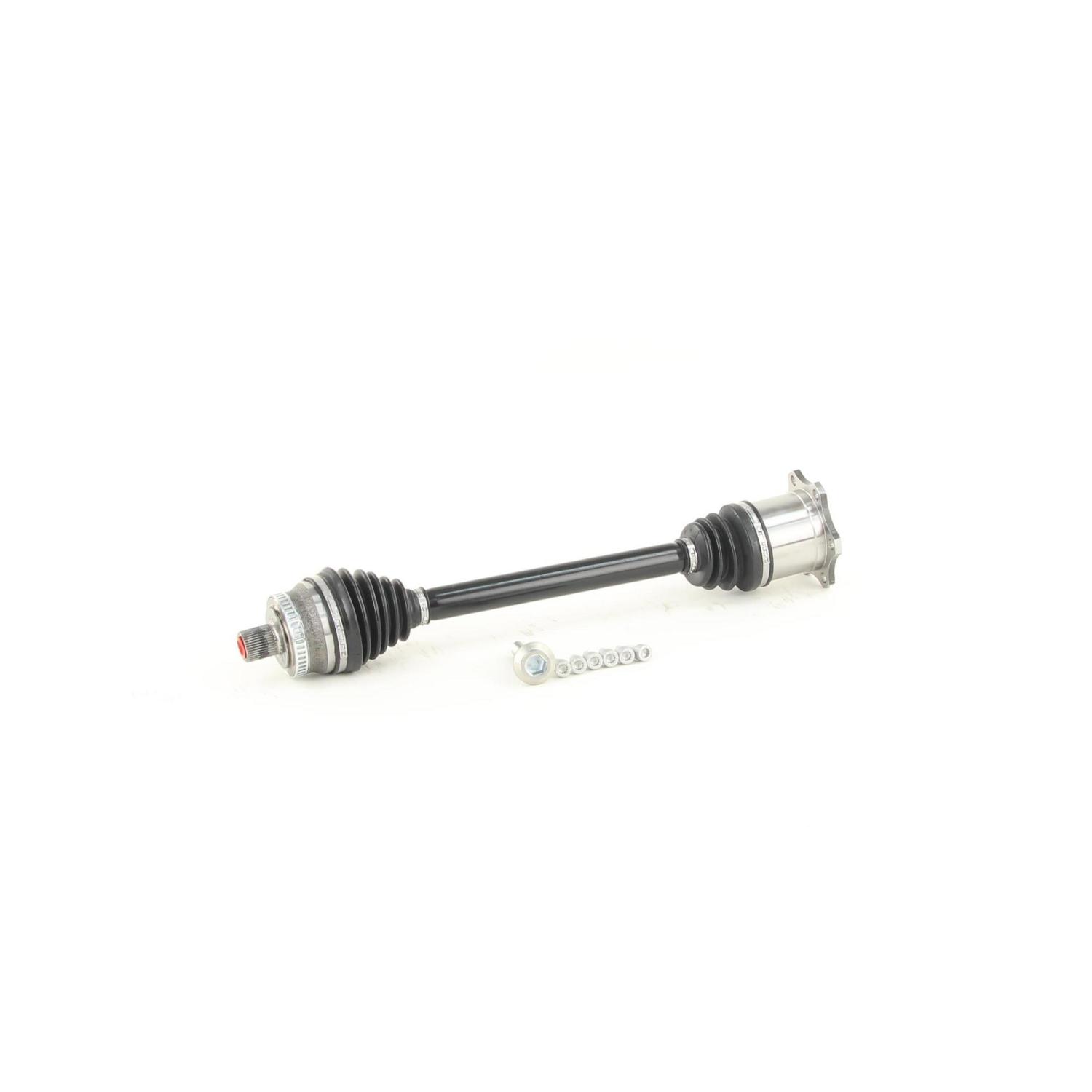

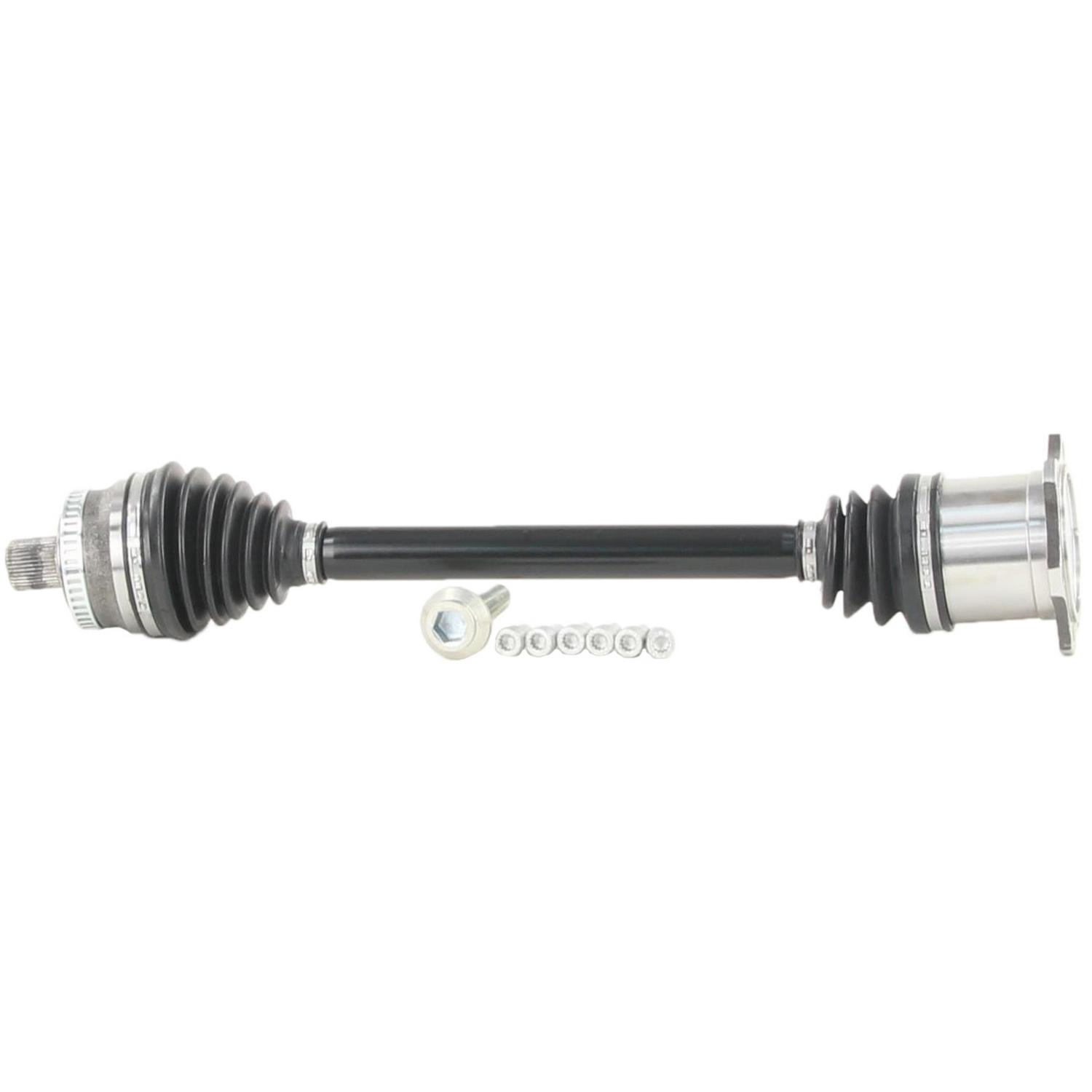

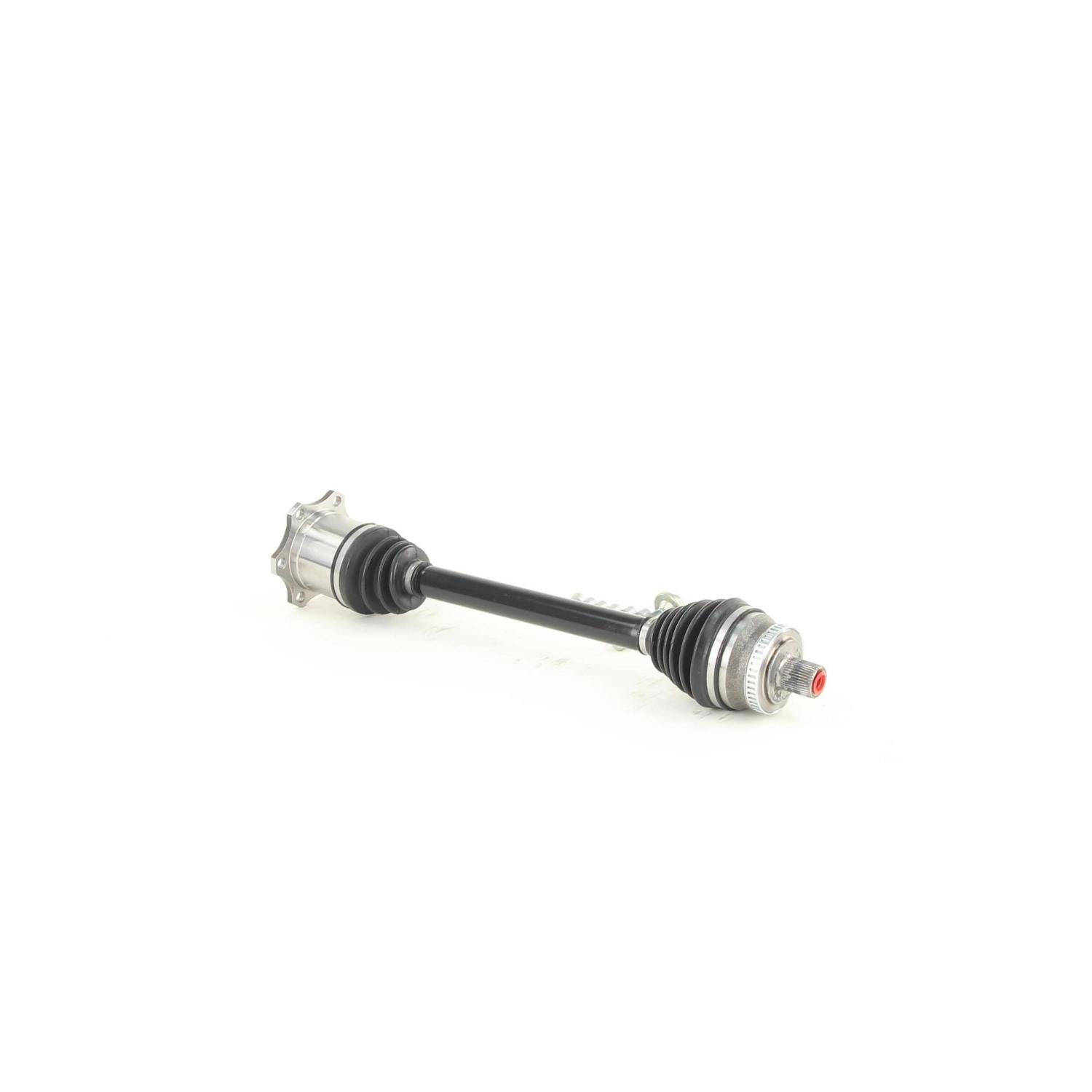

TrakMotive AD-8187 CV Axle Shaft

CV Axle Shaft

$331.19 CAD

In Stock

Ships: Today, Oct. 17th

Pick-Up: Ready in 2-3 Hours (Order before 3:00 PM)

Stock #: AD8187

Condition: New

UPC: 00195013073032

Weight: 12.13 lb.(5.52 kg.)

Dimensions: 26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	579
Overall Compressed Length (in)	22.78
Overall Extended Length (in)	24.96
Overall Extended Length (mm)	634
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	38
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	45
Abs Ring Type	Window
Axle Nut Included	No
Number Of Bolt Holes	0
Axle Bolt Length (mm)	85
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	17
Inboard Joint Boot Material	Neoprene
Inboard Bolt Head Type	Allen
Inboard Bolt Thread Size	M10x1.5
Inboard Bolt Head Size (mm)	12
Inboard Bolt Head Size (in)	.44
Inboard Bolt Length (mm)	30
Inboard Bolt Length (in)	1.19
Number Of Inboard Shaft Bolts	6
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	6
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	00195013073032
Origin Country:	CN
Weight:	12.13Lb. (5.52 kg.)
Package Dimensions:	26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)
