TrakMotive AD-8103 CV Axle Shaft

Name: TrakMotive AD-8103 CV Axle Shaft
Brand: TrakMotive
SKU: AD8103
Price: 138.25 CAD
Availability: InStock

CV Axle Shaft

$216.25$138.25 CAD

In Stock

Ships: Today, Sep. 30th

Pick-Up: Ready in 2-3 Hours (Order before 3:30 PM)

Stock #: AD8103

Condition: New

UPC: 844084004031

Weight: 15.71 lb.(7.14 kg.)

Dimensions: 26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

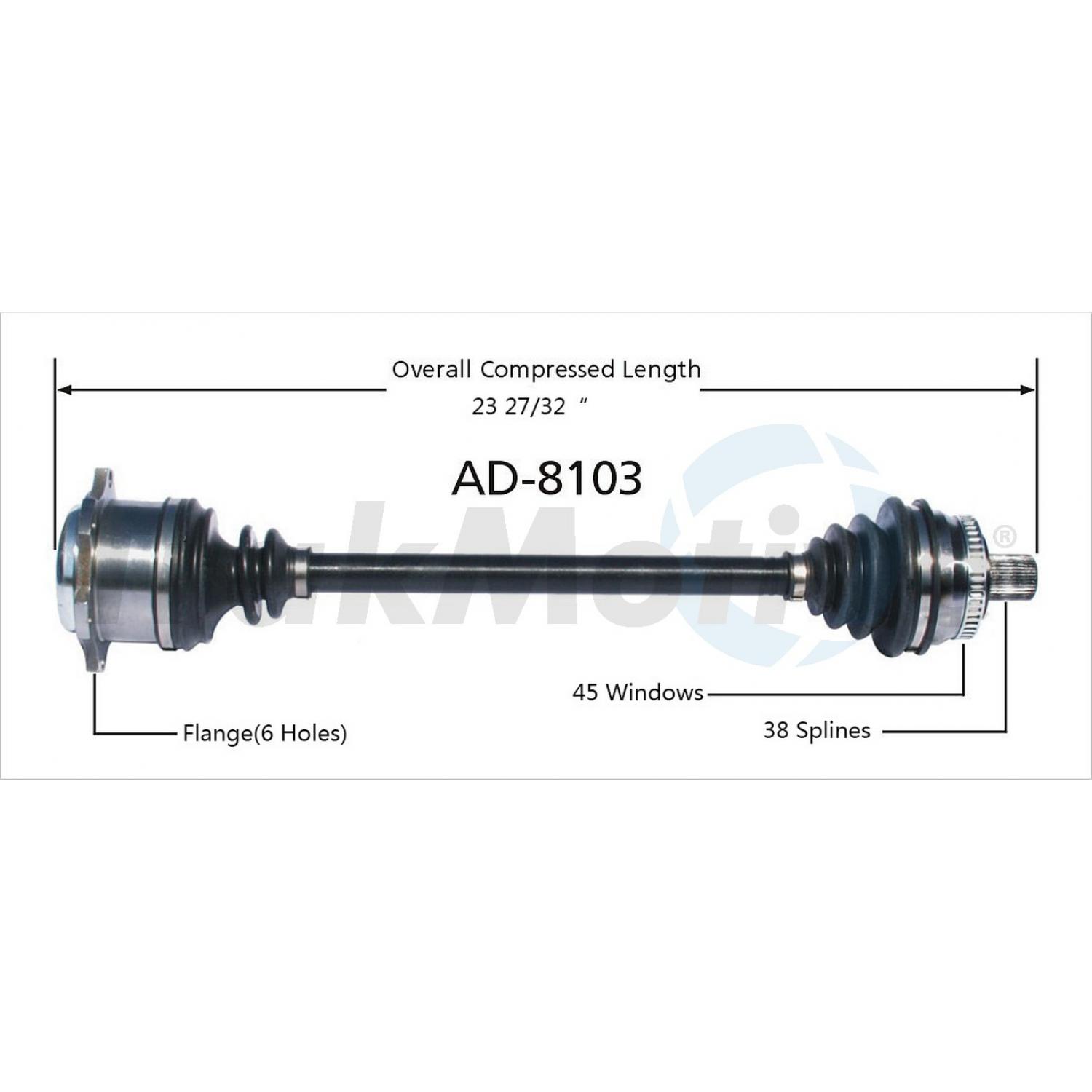

Overall Compressed Length (mm)	606
Overall Compressed Length (in)	23.86
Inboard Shaft Connection Style	Flange
Outboard Shaft Connection Style	Audi Style Spline Bolt
Number Of Inboard Splines	0
Number Of Outboard Splines	38
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	45
Abs Ring Type	Window
Axle Nut Included	No
Number Of Bolt Holes	1
Axle Bolt Length (mm)	97
Axle Bolt Thread Size	M16x1.5
Axle Bolt Hex Size (mm)	27
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	1
Inboard Joint Type	Flange
Outboard Joint Type	Audi Style Spline Bolt
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
UPC	844084004031
Origin Country:	CN
Weight:	15.71Lb. (7.14 kg.)
Package Dimensions:	26.4" x 6.7" x 6.7" (67 cm x 17 cm x 17 cm)
