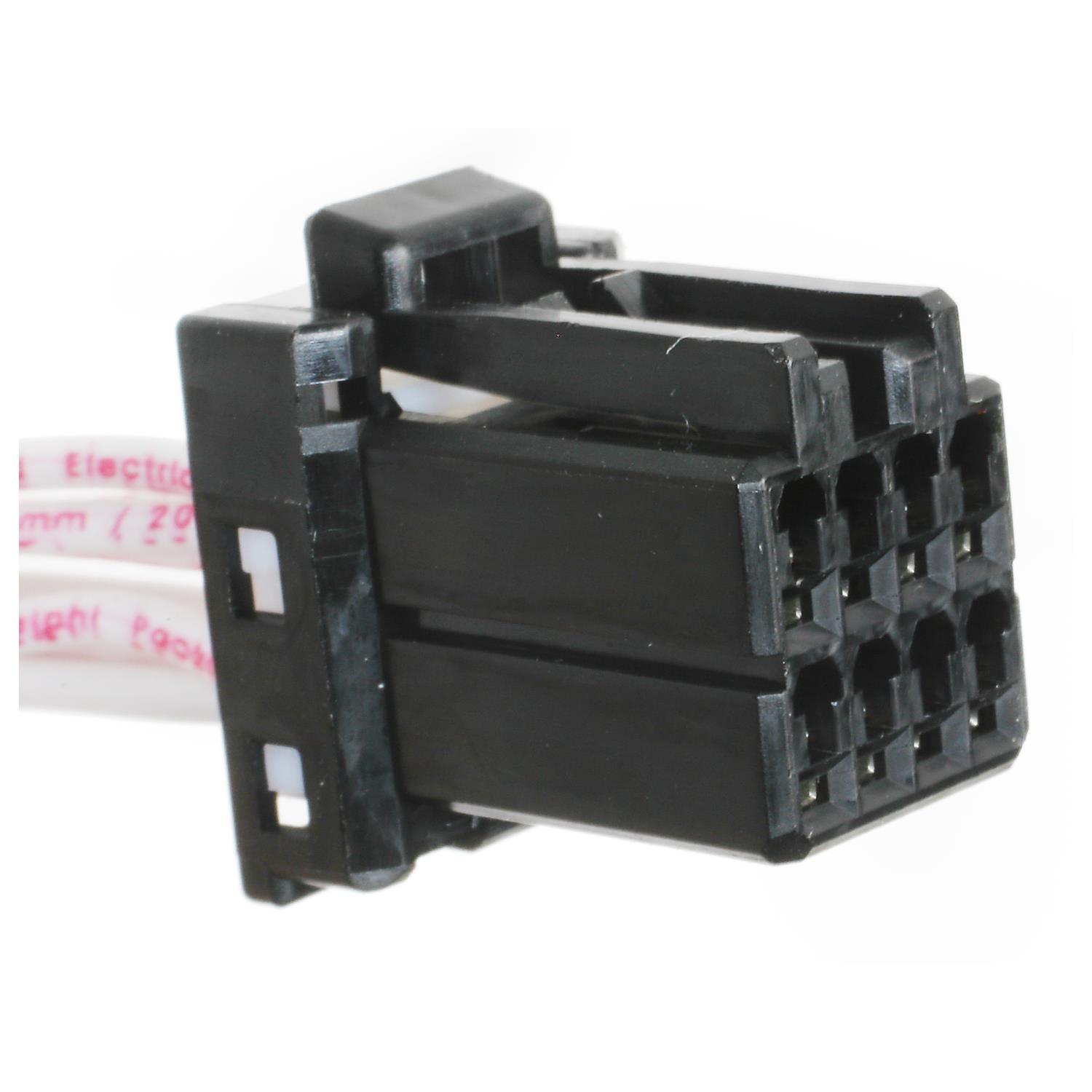

Standard Motor Products S-1823 Heads Up Display Module Connector in Canada

Decades of industry leading research and development focused on meeting the technician's needs
Offering hundreds of high-quality pigtails and sockets for nearly every electrical job
Utilizing high grade materials to ensure peak conductivity and perfect connections
With industry leading expertise, when original equipment fails our products are designed to fix the inherent failure issues

Connector Gender	Male
Terminal Quantity	8
Terminal Type	Blade
Attachment Method	Push On
Connector Quantity	1
Connector Shape	Square
Terminal Gender	Female
Material	Plastic
Wiring Harness Included	Yes
Wire Quantity	8
Water Resistant	No
Wiring Harness Length (in)	17
Wiring Harness Length (mm)	431.8
Dust Shield Included	No

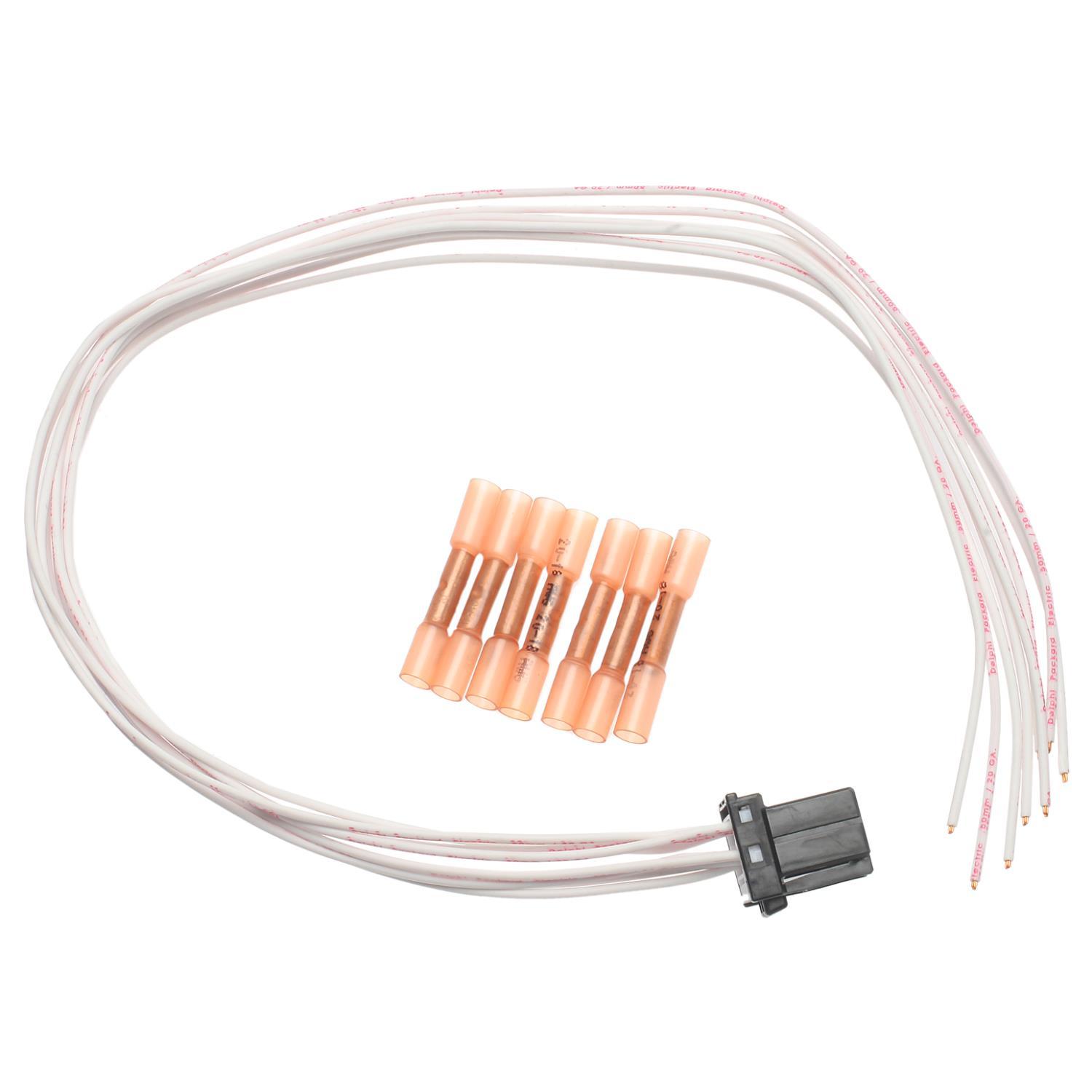

Contents	Includes Butt Splices
Harness Length - inches	17"
Length - Inches	0.75
Contact Terminal Material	Metal

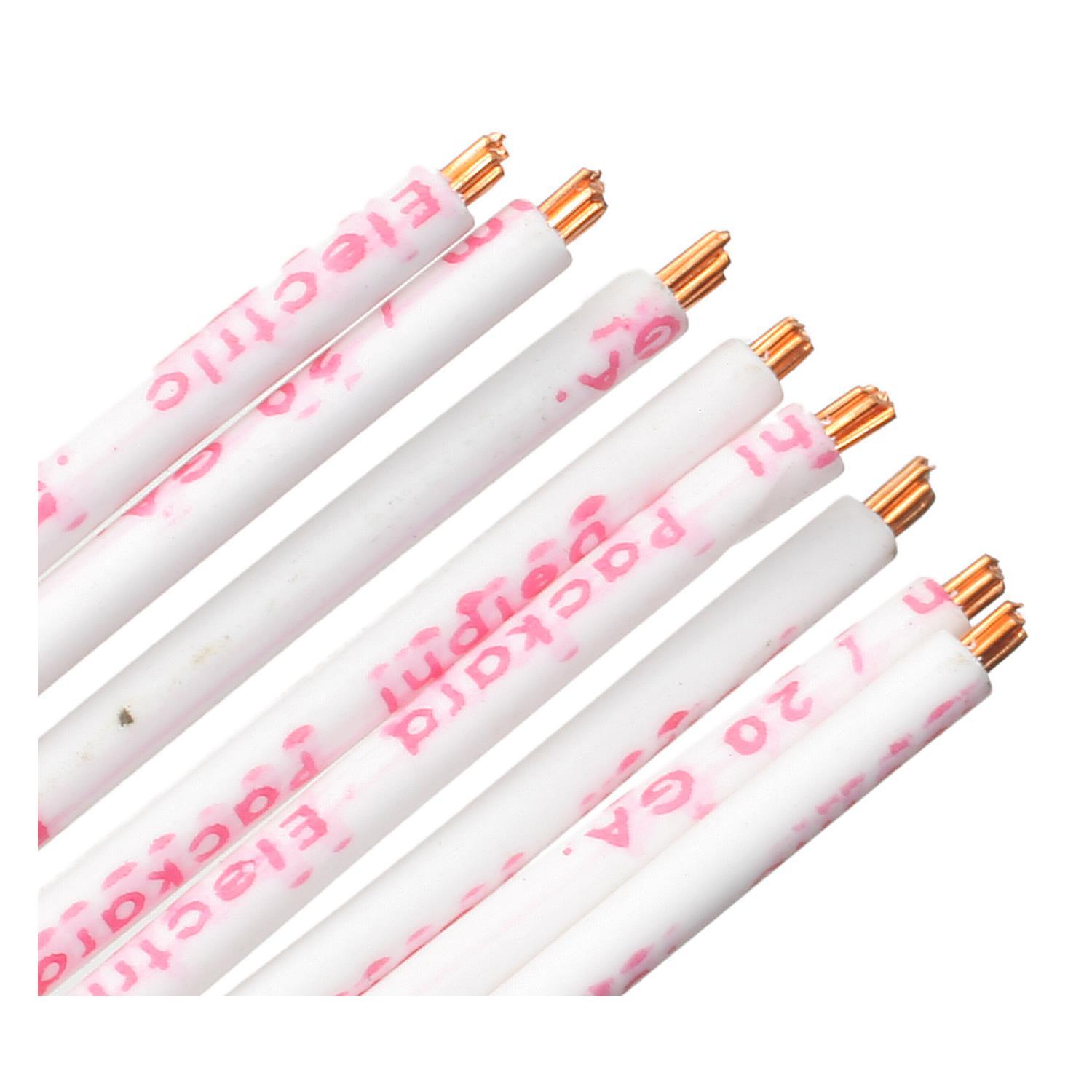

Number of wires	8
Bend Angle (Deg.)	0
Number Of Splice Connectors Includ	8
Splice Connectors Included	Yes
Weatherproof Sealed	Yes
Wire Gauge (ga)	20
UPC	025623251134
Origin Country:	US
Weight:	0.2Lb. (0.09 kg.)
Package Dimensions:	2.2" x 1.9" x 4.1" (5.5 cm x 4.9 cm x 10.5 cm)

1 Year Warranty

Standard Motor Products S-1823 Heads Up Display Module Connector
