ATP Z-495 Auto Trans Flexplate in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability

LineCode	ATP4
Pitch Flywheels	12
Teeth	139
Weight Added	N
Safety Rating	N/A
Diameter (mm)	298.9
Diameter (in)	0.979
SFI Approved	N
SFI Certification Sticker Included	N
UPC	740993068853
Origin Country:	CN
Weight:	6.01Lb. (2.73 kg.)
Package Dimensions:	14.3" x 14.3" x 2" (36.2 cm x 36.2 cm x 5.1 cm)

1 Year Warranty

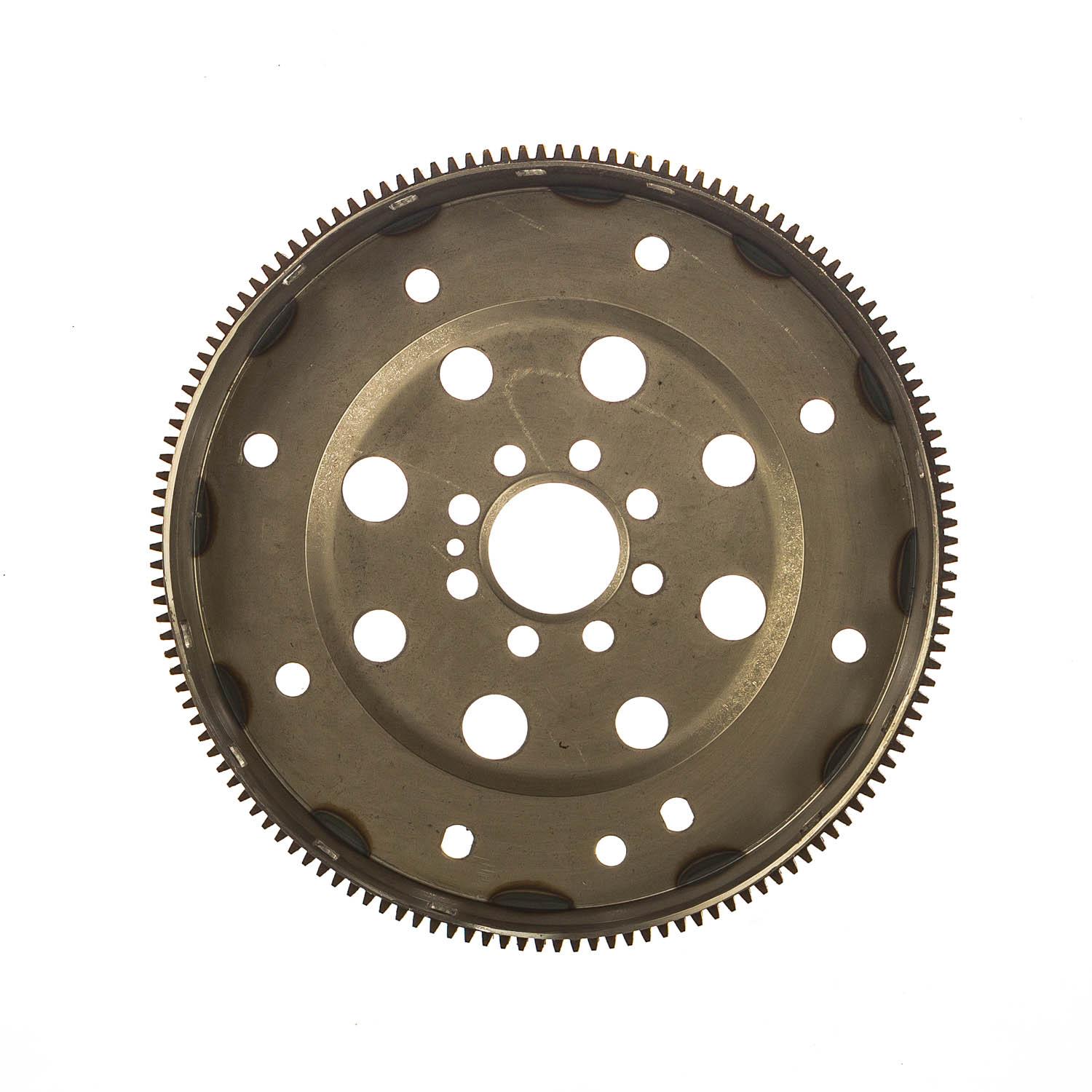

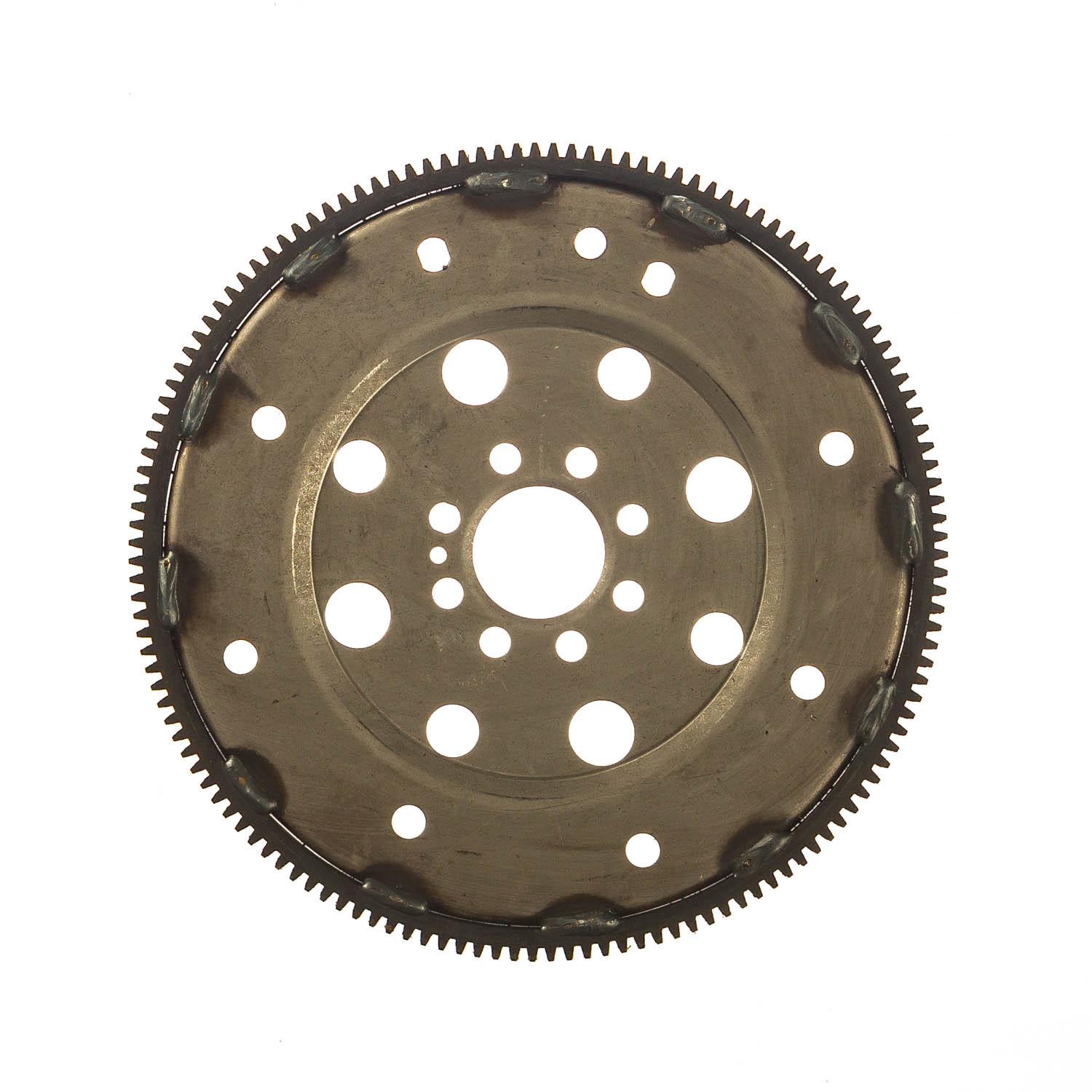

ATP Z-495 Auto Trans Flexplate
