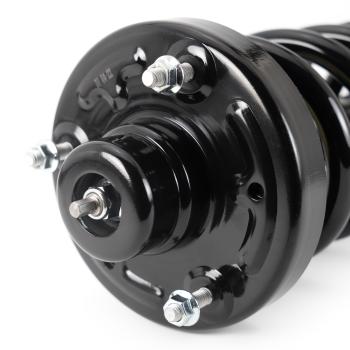

Arnott SK-4209 Suspension Strut and Coil Spring Assembly in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Custom-valved shock adapted to driving style
Electronic to passive shock technology
Engineered and Assembled in the USA
Improved seals to prevent leaks
Fits REAR LEFT
Converts active to passive
Exclusively for Lincoln Navigator (U554)
Replace in Pairs
Arnott's exclusive strut (SK-4209) manufactured for the 2022 and up Lincoln Navigator (U554) rear left side. This passive strut design delivers the stability, handling, control and comfort of the original OE strut without any external commands from the vehicle. Arnott engineers have determined and tested the optimal internal strut settings to mimic the OE performance. Arnott recommends replacing these struts in pairs.

Grade Type	Standard
Housing Material	Steel
Mounting Hardware Included	Yes
Bearing Plate Included	Yes
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Loop/Eyelet
Upper Mount Type	Stud
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	395
Body Diameter	50
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	540
Dust Shield Included	Yes
Dust Shield Material	Plastic
Travel Length	145
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	No
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Outer Housing Diameter	50
Shock/strut Color	Black
UPC	00815710027786
Origin Country:	US
Package Dimensions:	32" x 9.6" x 11" (81.3 cm x 24.5 cm x 27.9 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott SK-4209 Suspension Strut and Coil Spring Assembly
