Name: Arnott AS-3362 Suspension Air Strut
Brand: Arnott
SKU: AS3362
Price: 616.36 CAD
Availability: OutOfStock

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Custom-tuned, premium shock absorber
Engineered and Assembled in the USA
Heavy-Duty Crimping Rings
Multi-ply Continental ContiTech air spring sleeve
Universal fit - right or left side

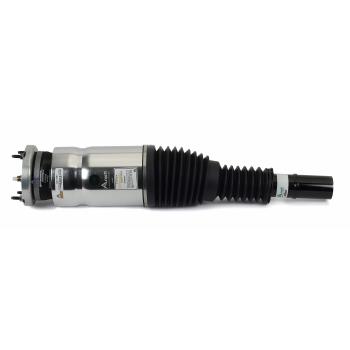

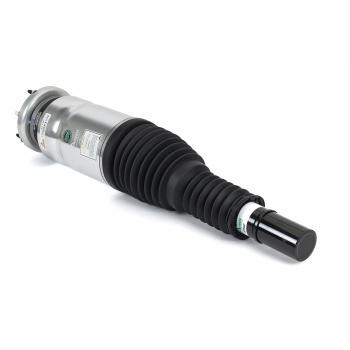

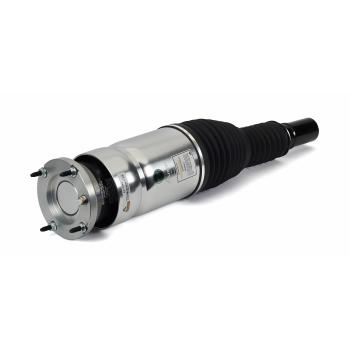

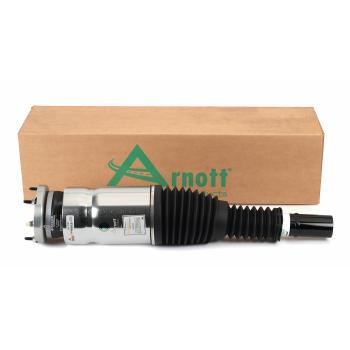

AS-3362 is a new, Arnott engineered, aftermarket air suspension strut for the front right or left side of the 2014-2022 Land Rover Range Rover Sport (L494 Chassis) without CVD. This assembly replaces the OE strut and features a new custom tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with a multi-ply Continental ContiTech air spring sleeve protected by an aluminum can along with an aluminum top mount. The new air strut is assembled in the USA with Arnott's long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and a dust boot to protect the strut.
Replace in Pairs

Mounting Hardware Included	Yes
Bearing Plate Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Base Cup
Upper Mount Type	Stud
Shock Spring Assisted	Yes
Boot Included	Yes
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Progressive
New Or Remanufactured	New
Springs Included	N/A
Progressive Spring Rate	Yes
Spring Seat Included	No
Coil Over Springs Included	N/A
Internal Damper Type	Hydraulic
Air Adjustable	Yes
Air Ride Suspension	Yes
Body End Measuring Point	Center Eye
Bladder Heavy Duty Crimping Rings Included	Yes
Adjustable Compression	No
UPC	00815710019293
Origin Country:	US
Weight:	18.4Lb. (8.37 kg.)
Package Dimensions:	30.5" x 8.5" x 7.5" (77.5 cm x 21.6 cm x 19.1 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott AS-3362 Suspension Air Strut

New Air Suspension Strut
