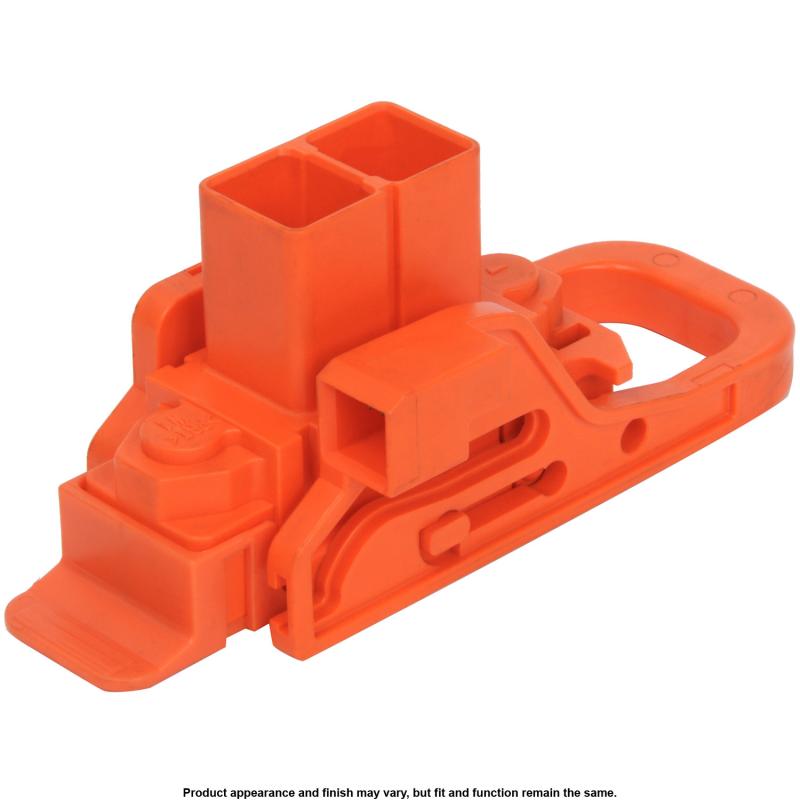

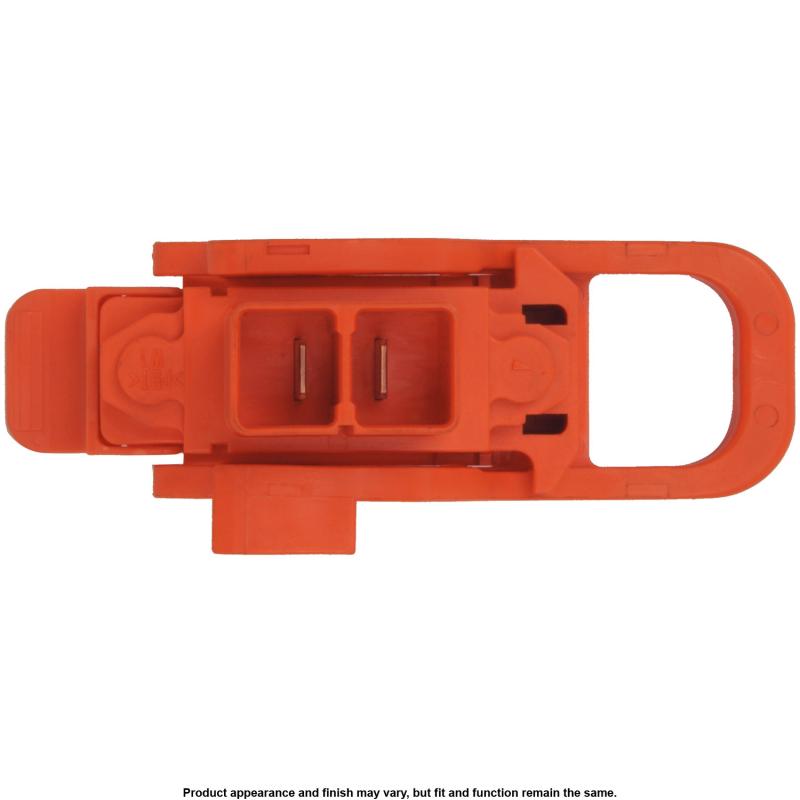

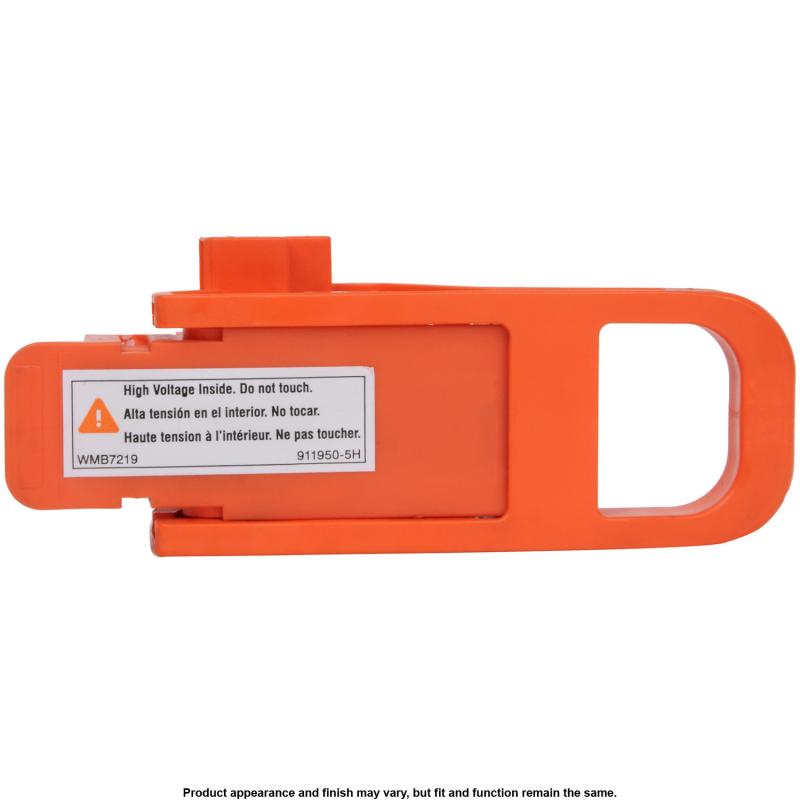

A1 Cardone 5H4015PL Hybrid Battery Service Plug in Canada

Toyota G383447030
Lexus G383447030

All hybrid vehicles are equipped with a safety disconnect switch, commonly known as a hybrid safety plug. These safety plugs are used to cut off high voltage from the rest of the system beyond the battery pack when the vehicle is being serviced. Often, the copper contacts of the plug will corrode, creating a faulty electrical connection that could cause a safety hazard. CARDONE's direct-fit hybrid safety plugs are carefully tested and inspected to match O.E. performance.

Product Condition	Remanufactured
FAQs	What is the function of the safety plug?
FAQs	The Safety Plug disconnects power from the high voltage hybrid battery to the Hybrid Drive System for service or in case of an accident.
FAQs	Are there any other Safety Plugs in the hybrid drive system?
FAQs	Hybrid Drive Systems utilize a series of interlocked connection points that will shut down the entire system if disconnected accidently. The Safety Plug is part of this system and the safest designated access point to disconnect the high voltage battery power supply.
FAQs	Where is the safety plug located on my vehicle?
FAQs	Safety plugs are located on the high voltage hybrid battery in the rear cargo area of the vehicle covered by cargo area interior trim panels. Some safety plugs are designed for easy access and may be visible by lifting the rear cargo area tray or carpeted mat.
FAQs	Are the cargo area interior trim panels removable by hand or do I need a special tool?
FAQs	Most trim panels require a trim removal tool to prevent damage and ease removal.
Features and Benefits	All critical areas of the plug are rigorously cleaned to remove corrosion.
Features and Benefits	The plugâ€™s casing and locking points are thoroughly inspected for wear and defects prior to acceptance.
Features and Benefits	If the unit is equipped with a plug-latching mechanism, 100% testing is completed to ensure proper functionality.
Features and Benefits	The internal fuse of each plug is subjected to a conductive current draw test to guarantee peak performance.
Package Contents	Hybrid Safety Plug
Attachment Type	Push-in & Lock
Color	Orange
Connector Gender	Male
Connector Material	Plastic
Indicator Markings	No
Length (in)	4.65
Material	Plastic
Package Quantity	1
Terminal Gender	Male
Terminal Quantity	2
Terminal/Connector Type	Blade
Water Resistant	No
E-Waste	No
UPC	884548252455
Origin Country:	US
Weight:	0.53Lb. (0.24 kg.)
Package Dimensions:	4.5" x 4.1" x 7.3" (11.4 cm x 10.5 cm x 18.4 cm)

1 Year Warranty

A1 Cardone 5H4015PL Hybrid Battery Service Plug

Drive Motor Battery Service Plug
