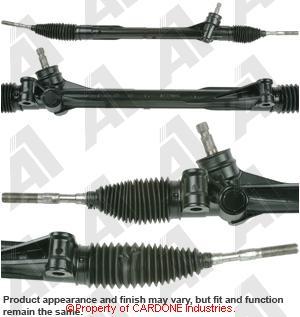

A1 Cardone 24-2694 Rack and Pinion Assembly

Remanufactured Electronic Power Rack and Pinion Complete Unit

$675.72 CAD

Core charge: $88.20

Out of Stock

Superseded by: A1 Cardone 1G2694

Brand: A1 Cardone

Stock #: 242694

Condition: Remanufactured

UPC: 082617884631

Weight: 16 lb.(7.28 kg.)

Dimensions: 48.8" x 10.3" x 6.5" (123.8 cm x 26 cm x 16.5 cm)

Accepted Payments: Visa, MasterCard, PayPal

30-Day Return Policy

NAPA Chassis Parts 2605225
MOOG Chassis Products RK80347
Ingalls Engineering CAK80347
MOOG RK80347

Product Condition	Remanufactured
FAQs	For the first few minutes of driving my car, the steering is hard. Is the rack and pinion bad or the power steering pump?
FAQs	This symptom is classified as "morning sickness". This condition is caused by Teflon sealing rings on the spool valve wearing grooves in the aluminum housing of the rack and pinion resulting in an internal bypass of pressure. Once the housing warms up, the metal will expand and reduce the pressure loss. The rack and pinion must be replaced.
FAQs	I replaced the rack and now the power steering pump is whining. What happened? It never did this before!
FAQs	The most likely cause of power steering pump whine is air in the system. The Steering system must be bled completely.
FAQs	Steering not returning to center coming out of a turn. What could be causing this?
FAQs	The rack and pinion does not return to center by itself. The geometry of the front suspension causes the wheels to return to center coming out of a turn. If the vehicle will not return to center, first, check the front end alignment, then, check for a restricted return line in the power steering system. If the return line is restricted or kinked, this could be blocking the flow of fluid back to the pump.
Features and Benefits	Replacement of Rubber Sealing Components
Features and Benefits	Application of Specialized Lubricant(s) for Extended Life
Features and Benefits	Finished in Protective coating to Prevent Corrosion and/or Rust
Features and Benefits	Each Unit undergoes CARDONEâ€™s Factory Test Drive, simulating extreme operating conditions while verifying all on-car communications.
Input Shaft Length (in)	5.188
Input Shaft Diameter (in)	0.748
Rack Length (in)	43.688
Thread Length (in)	2.043
Mounting Hole Quantity	2
Distance Between Mounting Holes (in)	19.75
Steering Rack Color/Finish	Black
E-Waste	No
Tie Rod Ends Included	Inner
Total Turns Lock to Lock	2.81
Package Contents	Rack and Pinion, Instruction Sheet
Distance Between Mounting Holes (mm)	501.65
Input Shaft Diameter (mm)	19.00
Rack Length (mm)	1109.68
Thread Length (mm)	51.89
Input Shaft Length (mm)	131.78
UPC	082617884631
Origin Country:	MX
Weight:	16Lb. (7.28 kg.)
Package Dimensions:	48.8" x 10.3" x 6.5" (123.8 cm x 26 cm x 16.5 cm)
