A1 Cardone 1B1009 Air Brake Disc Brake Caliper in Canada

Utility Trailer Manufacturing K001909
Utility Trailer Manufacturing K019181
Wabash National K001909
Wabash National K019181

CARDONE Heavy Duty Air Disc Brake Calipers are engineered and remanufactured to meet the high demands of fleet applications. Each unit is completely disassembled, cleaned, inspected and rebuilt with 90% brand new components to match O.E. performance. As an added benefit, every caliper is powder coated to extend product life and prevent rust formation.
All new and renewed components are manufactured to O.E. performance standards
As much as 90% new parts.
Components are torqued to O.E. specifications for proper long-term function.
End of line actuation test on internal clutch chain lever bridge bearings.
Guide pins and bushings tested for slide.
Outfitted with proprietary grease to prolong caliper life.

FAA_A1	ADB calipers generate much shorter stops under the same loads and speeds when compared to drum brakes. ADB calipers enhance braking capability and increase safety. The brake pads may last twice as long as drum linings in most cases. ADB calipers also have a sealed desig n with an integrated automatic brake adjuster for optimal performance. This design also allows for easy access to the brake pads for a significantly quicker installation.
FAA_A2	There are two ADB caliper designs. The first type is a sliding caliper with an integral brake actuator. This consists of a brake actuator that moves an eccentrically supported lever which transmits the force to the brake pads through a bridge with a threaded spindle on the end of the piston. The second type is a floating caliper. This design consists of a main body which includes the actuating and adjustment mechanisms and a brake carrier which enables the caliper to slide while holding the brake pads and transferring the load that is exerted during brake application to the axle.
FAA_A3	Most manufacturers recommend a visual brake pad wear inspection every three months or 20,000 miles. A more thorough inspection is recommended at six months or 50,000 miles. Refer to the service intervals stated by the caliper original equipment manufacturer.
FAA_A4	Most rotor manufacturers state that small radial cracks, no more than 1.5 mm wide and 1 mm deep are acceptable provided the cracks don't extend across more than 75 percent of the disc face. A rotor with cracks that extend to either edge of the rotor should be replaced. Grooves are acceptable as long as the groove is no deeper than 1.5 mm. Refer to the rotor manufacturer for exact specifications.
FAA_A5	For most applications there is no need to remove the wheels. Inspection can be done by checking the wear indicators on the brake caliper with a flashlight.
FAQ_Q1	What advantages do Air Disc Brake (ADB) calipers have compared to drum brakes?
FAQ_Q2	How many types of ADB calipers are there?
FAQ_Q3	How often should the ADB caliper pads be checked?
FAQ_Q4	What is acceptable wear on the rotor face?
FAQ_Q5	Is there a need to remove the wheels for inspection?
UPC	00884548287631
Origin Country:	US
Weight:	53.2Lb. (24.19 kg.)
Package Dimensions:	19.9" x 13.5" x 9.8" (50.5 cm x 34.3 cm x 24.8 cm)

1 Year Warranty

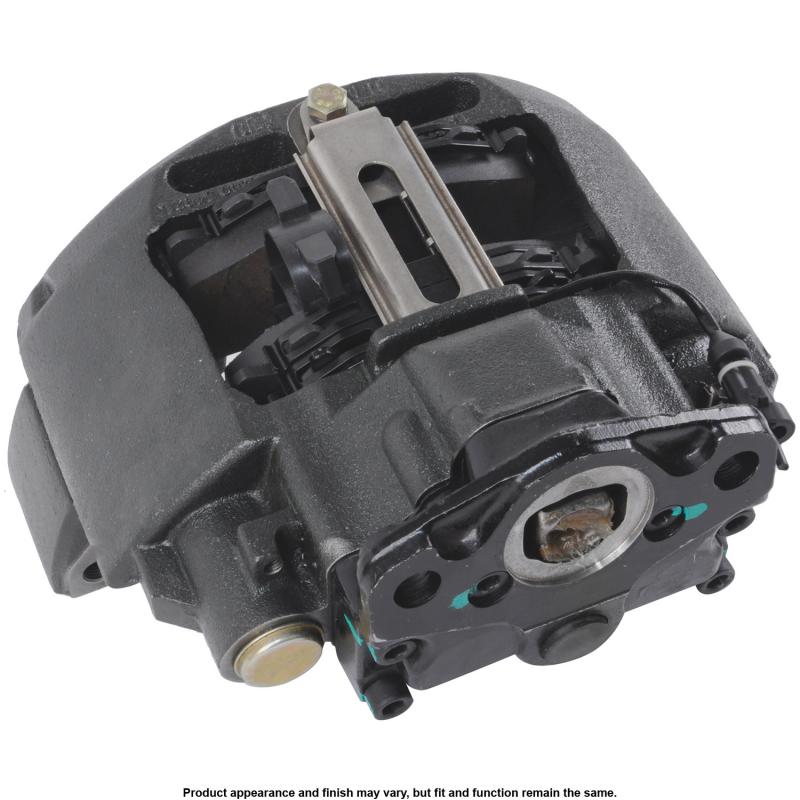

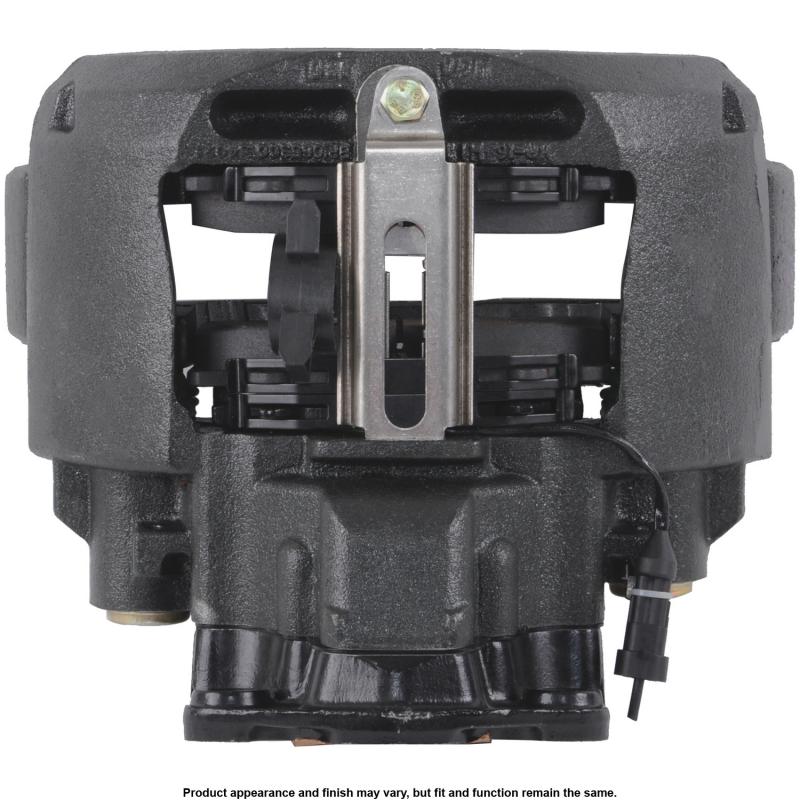

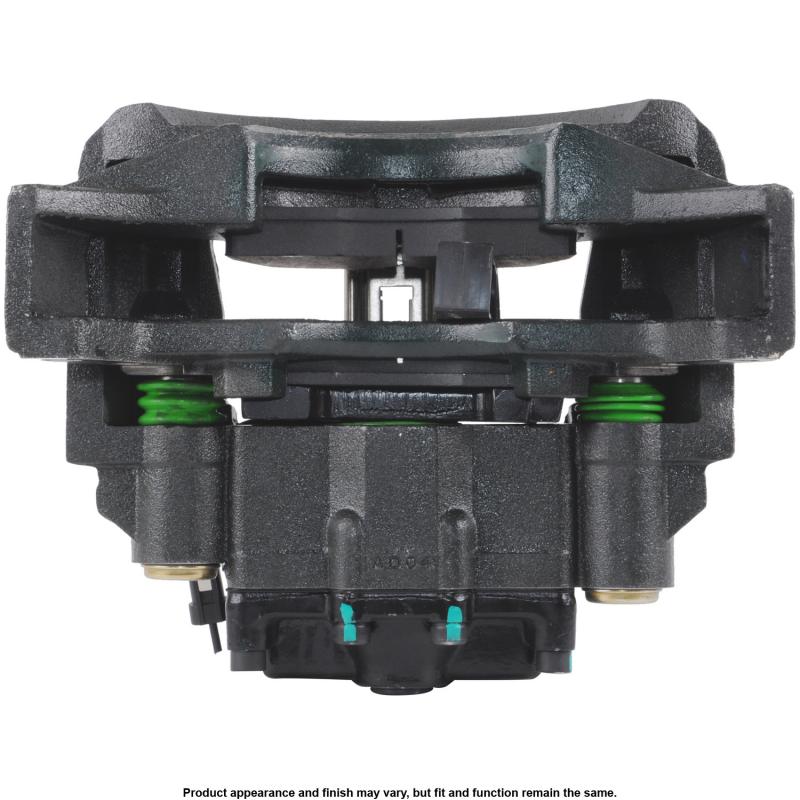

A1 Cardone 1B1009 Air Brake Disc Brake Caliper

Remanufactured Air Disc Brake Caliper
