Name: TrakMotive MB-8077 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-mb8077
Price: 175.50 CAD
Availability: LimitedAvailability

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

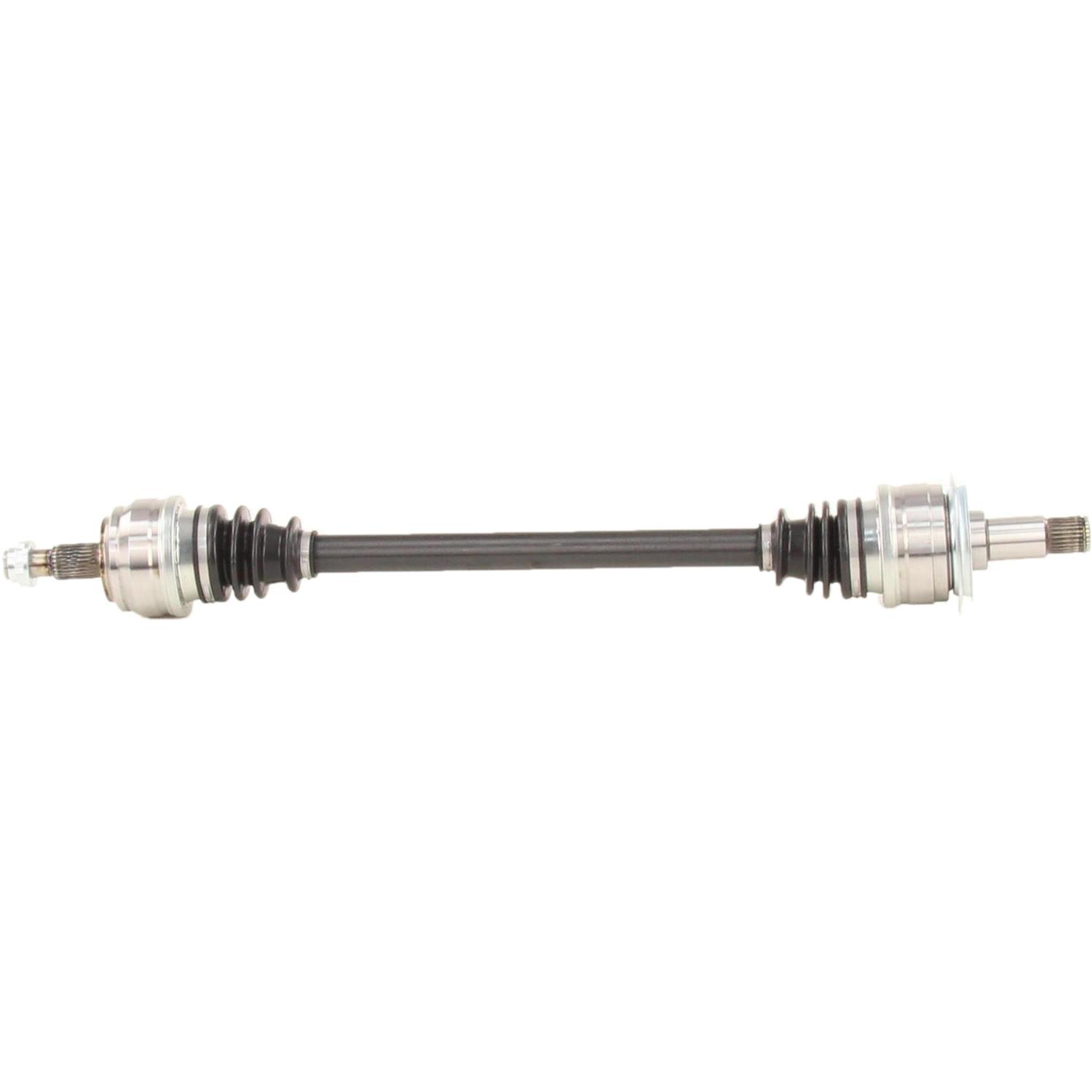

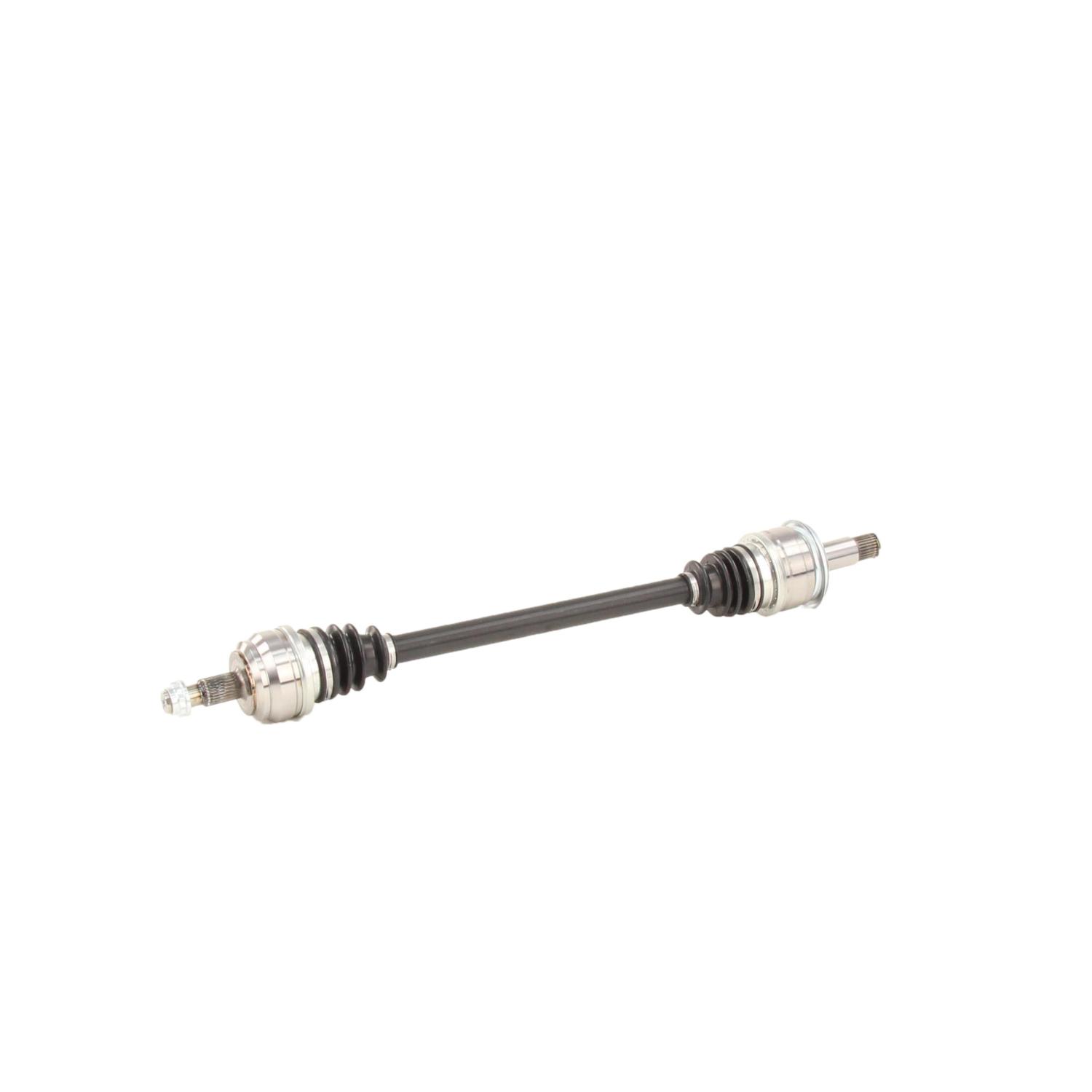

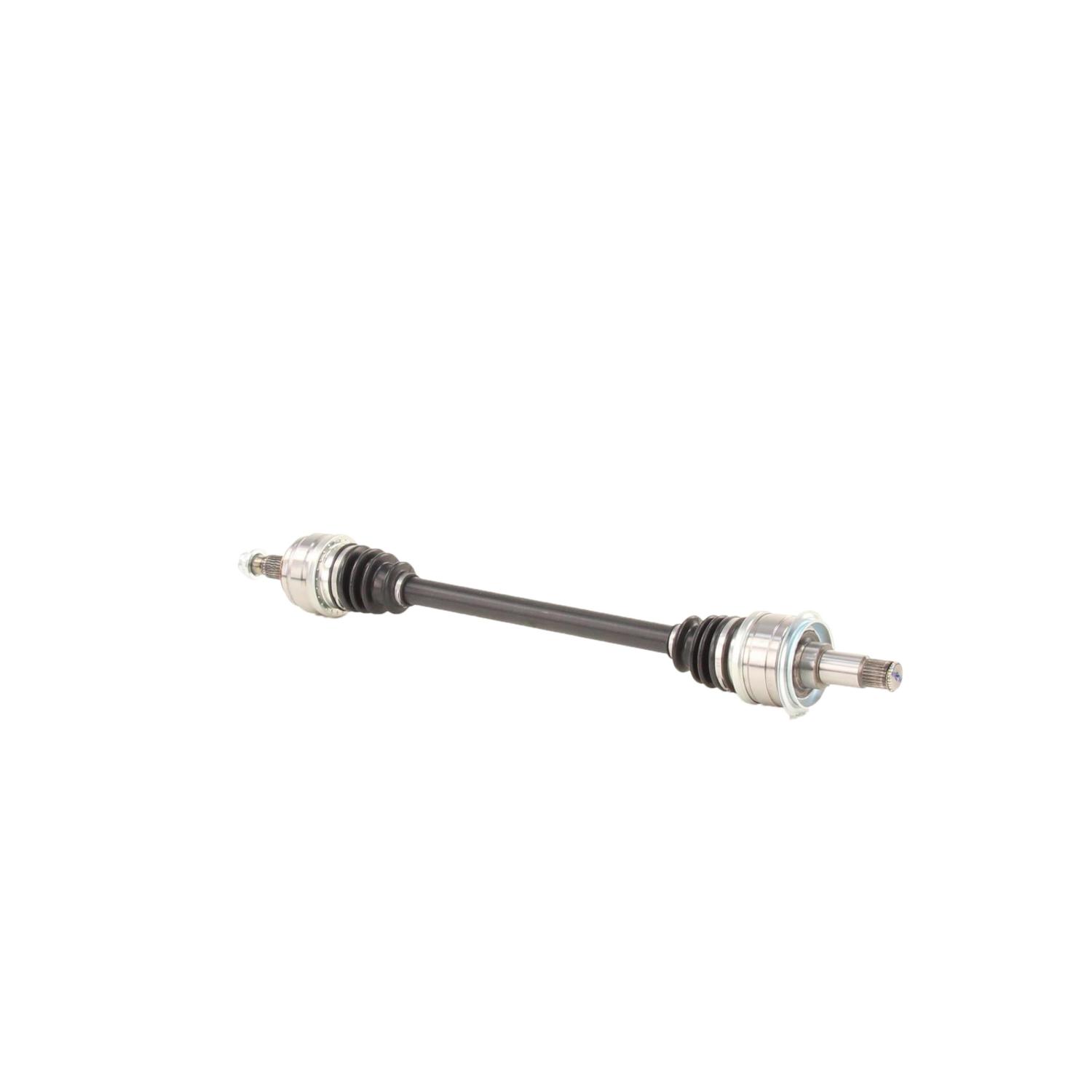

TrakMotive MB-8077

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	806
Overall Compressed Length (in)	31.73
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	27
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M26x1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.69
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	18
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.26
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084093622
Origin Country:	CN
Weight:	17.32 lbs (7.87 kg)
Package Length:	45.3" (115 cm)
Package Width:	5.1" (13 cm)
Package Height:	5.1" (13 cm)

1 Year Warranty
