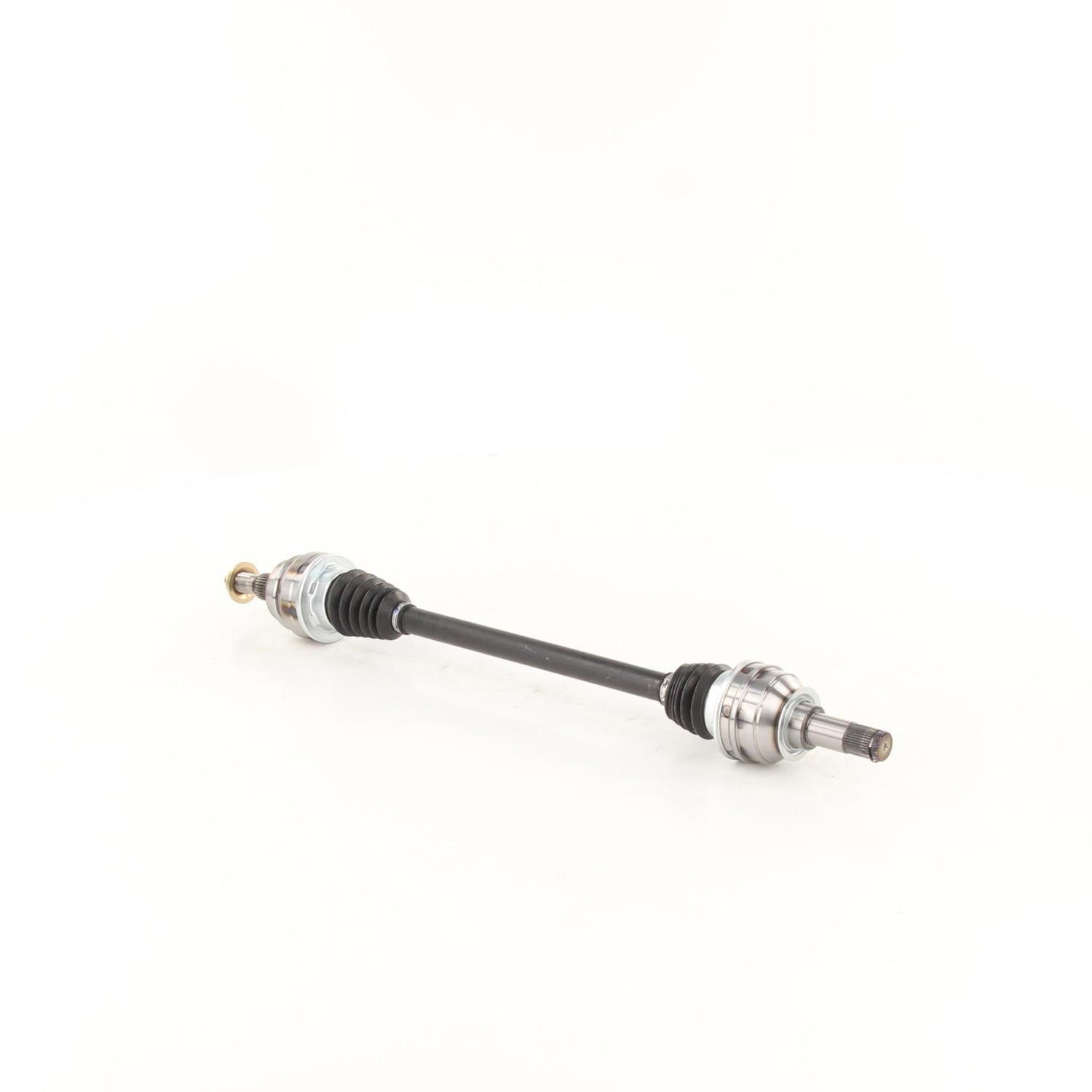

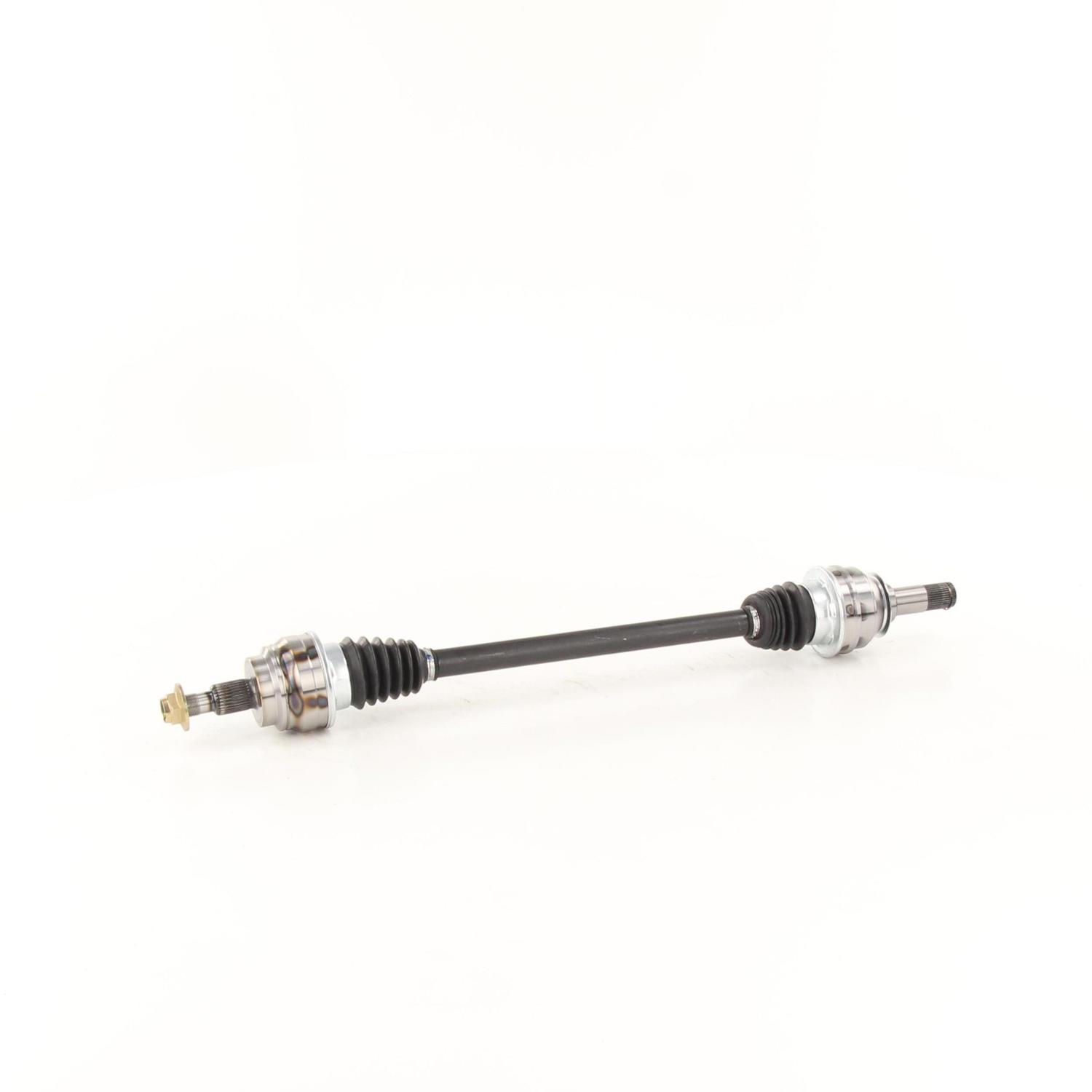

Name: TrakMotive MB-8075 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-mb8075
Price: 178.41 CAD
Availability: InStock

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

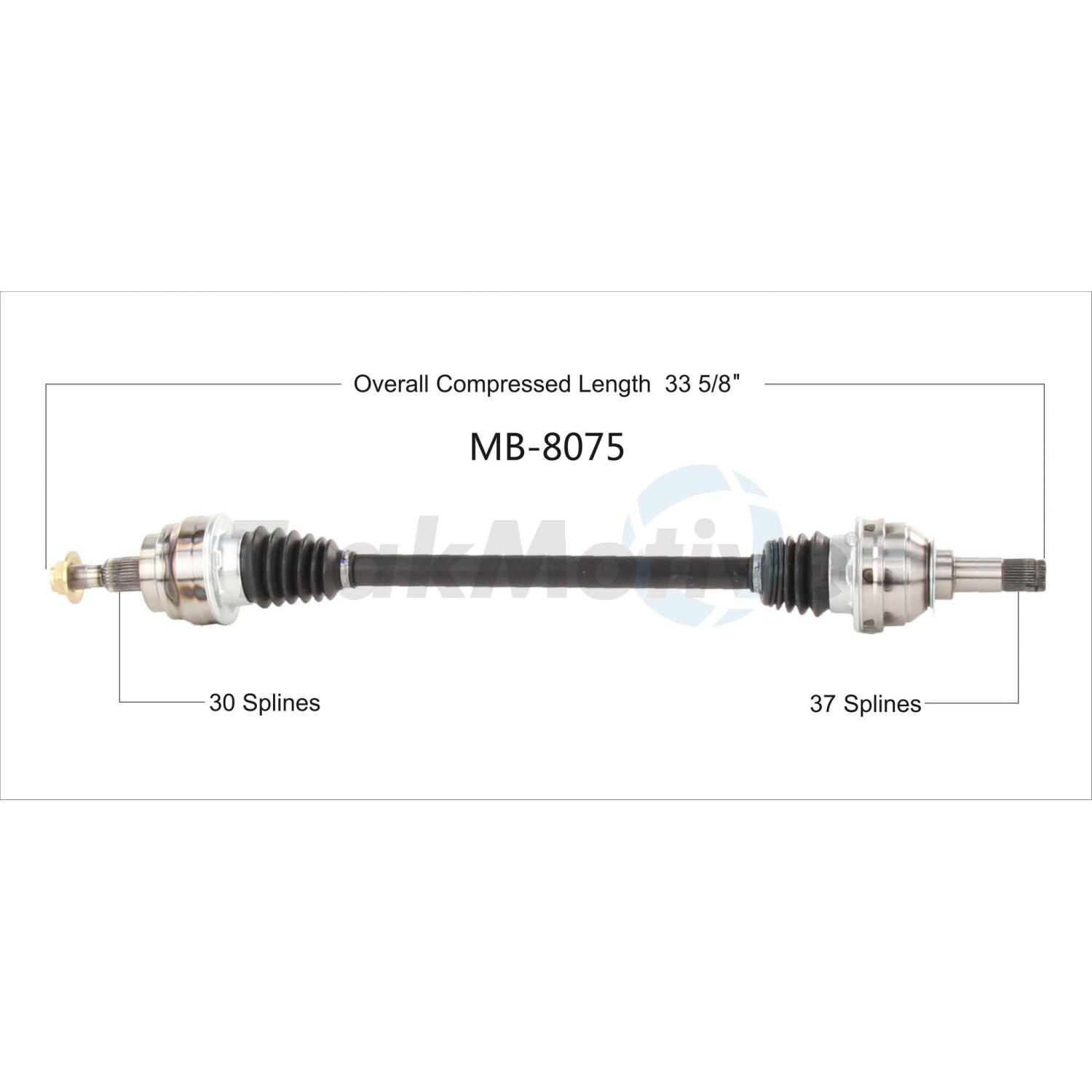

Overall Compressed Length (mm)	854
Overall Compressed Length (in)	33.62
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	37
Number Of Outboard Splines	30
Abs Tone Ring Included	No
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M24X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.87
Axle Nut Length (in)	1.45
Axle Nut Height (mm)	22
Axle Nut Length (mm)	37
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.25
Outboard Joint Boot Material	Neoprene
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Grade Type	Premium
Axle Nut Socket Size	32
UPC	00844084089656
Origin Country:	CN
Weight:	22.18 lbs (10.09 kg)
Package Length:	37.4" (95 cm)
Package Width:	4.3" (11 cm)
Package Height:	4.3" (11 cm)

1 Year Warranty
