TrakMotive HY-8113 CV Axle Shaft

Name: TrakMotive HY-8113 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-hy8113
Price: 128.84 CAD
Availability: InStock

CV Axle Shaft

$200.30

$128.84

In Stock

Ships: Monday Apr. 6th

Pick-Up: Ready in 2-4 Hours Monday Apr. 6th

Brand: TrakMotive

Stock #: HY8113

Condition: New

UPC: 844084003201

Weight: 16.37 lbs (7.44 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

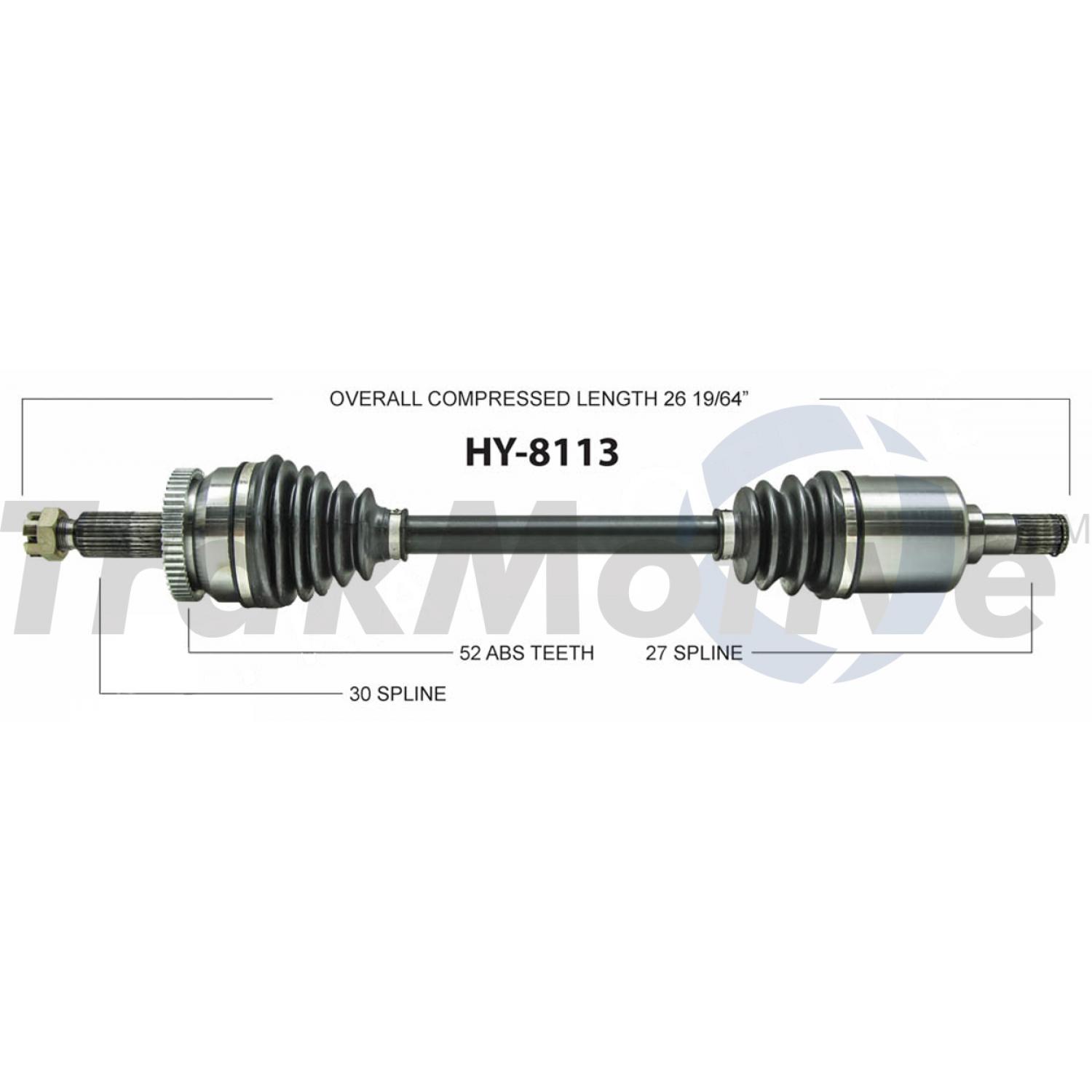

Overall Compressed Length (mm)	668
Overall Compressed Length (in)	26.3
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27
Number Of Outboard Splines	30
Abs Tone Ring Included	Yes
ABS Ring Tooth Count	52
Abs Ring Type	Toothed
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.86
Axle Nut Length (in)	1.5
Axle Nut Height (mm)	22
Axle Nut Length (mm)	37
Axle Nut Locking Type	Cotter Pin
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084003201
Origin Country:	CN
Weight:	16.37 lbs (7.44 kg)
Package Length:	31.1" (79 cm)
Package Width:	4.3" (11 cm)
Package Height:	4.3" (11 cm)
