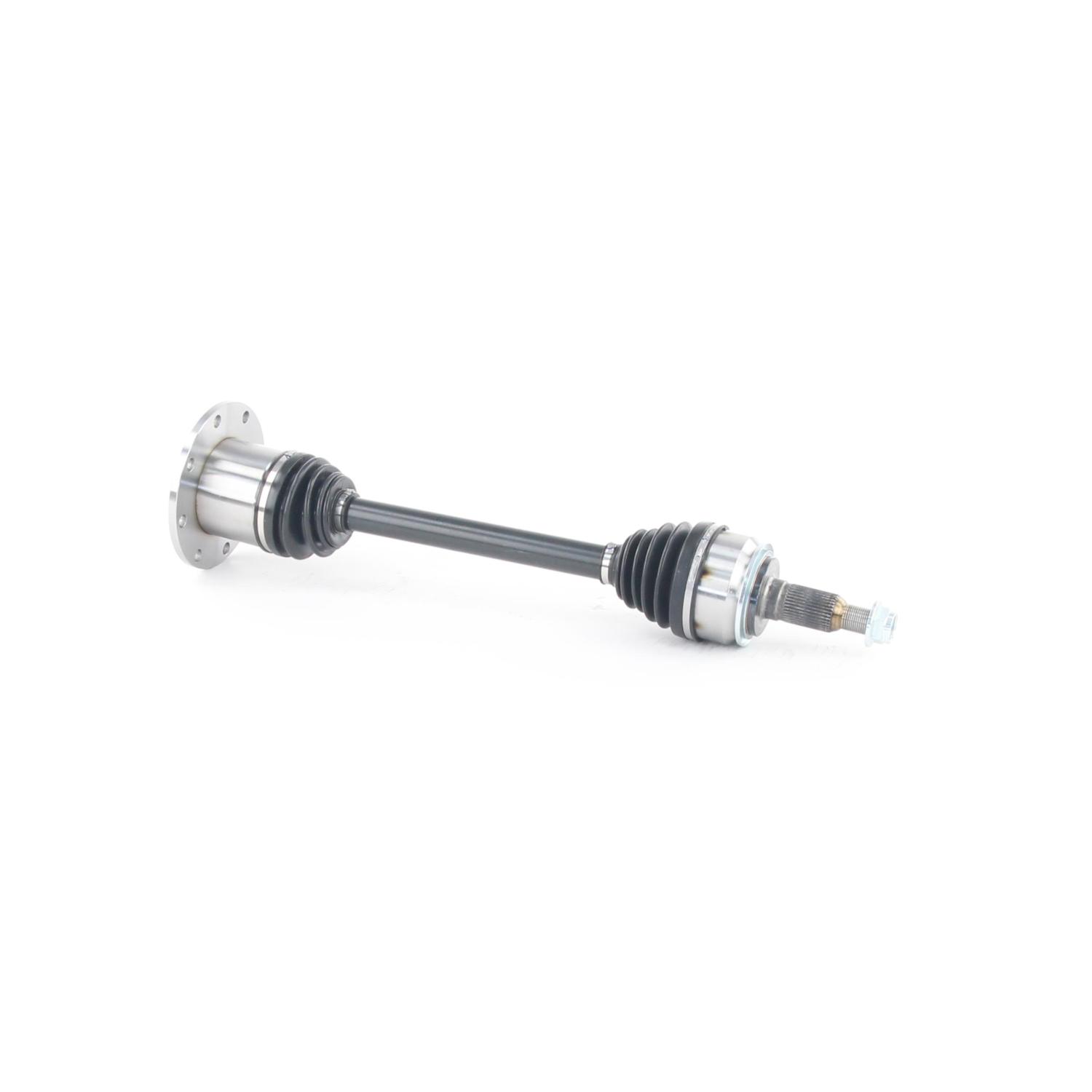

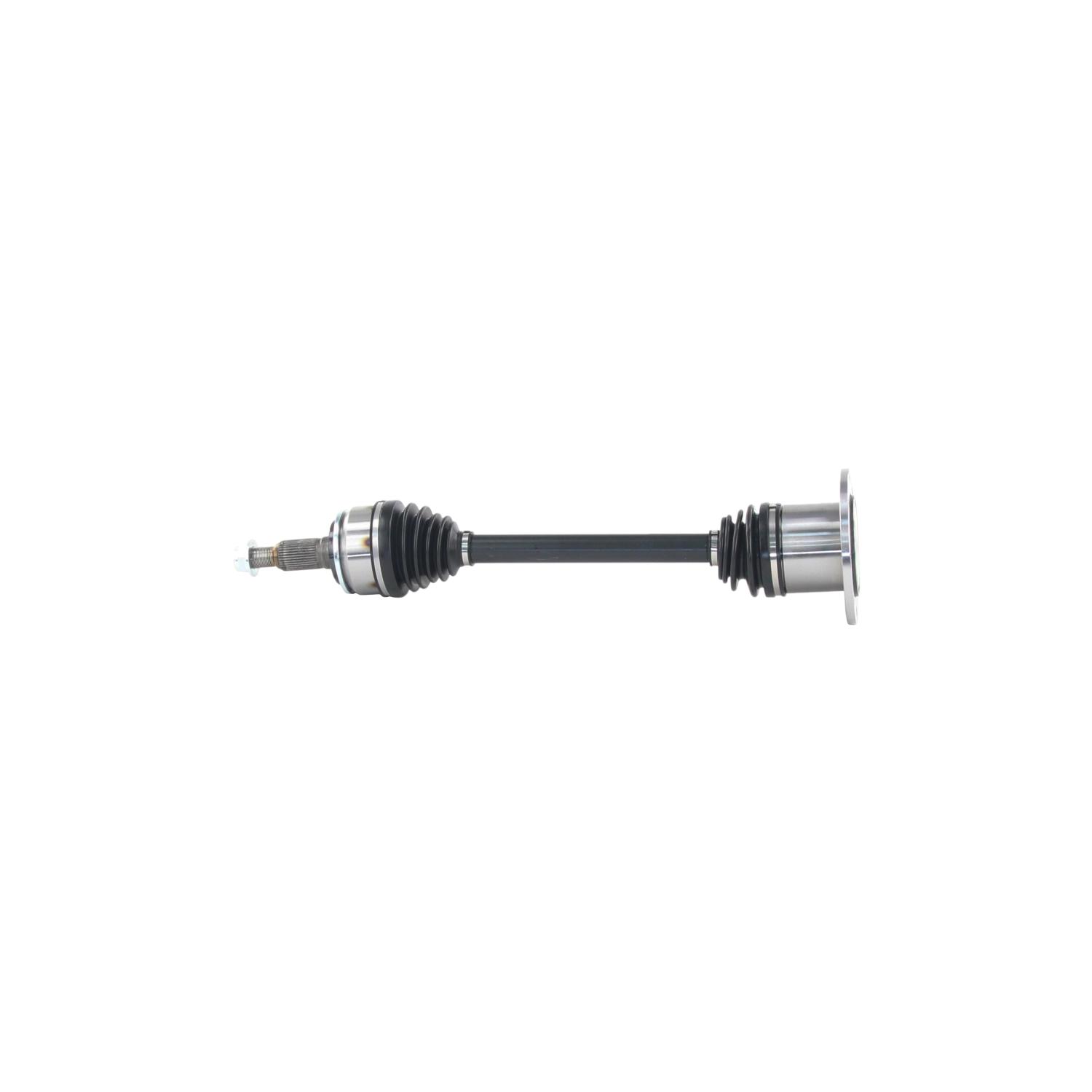

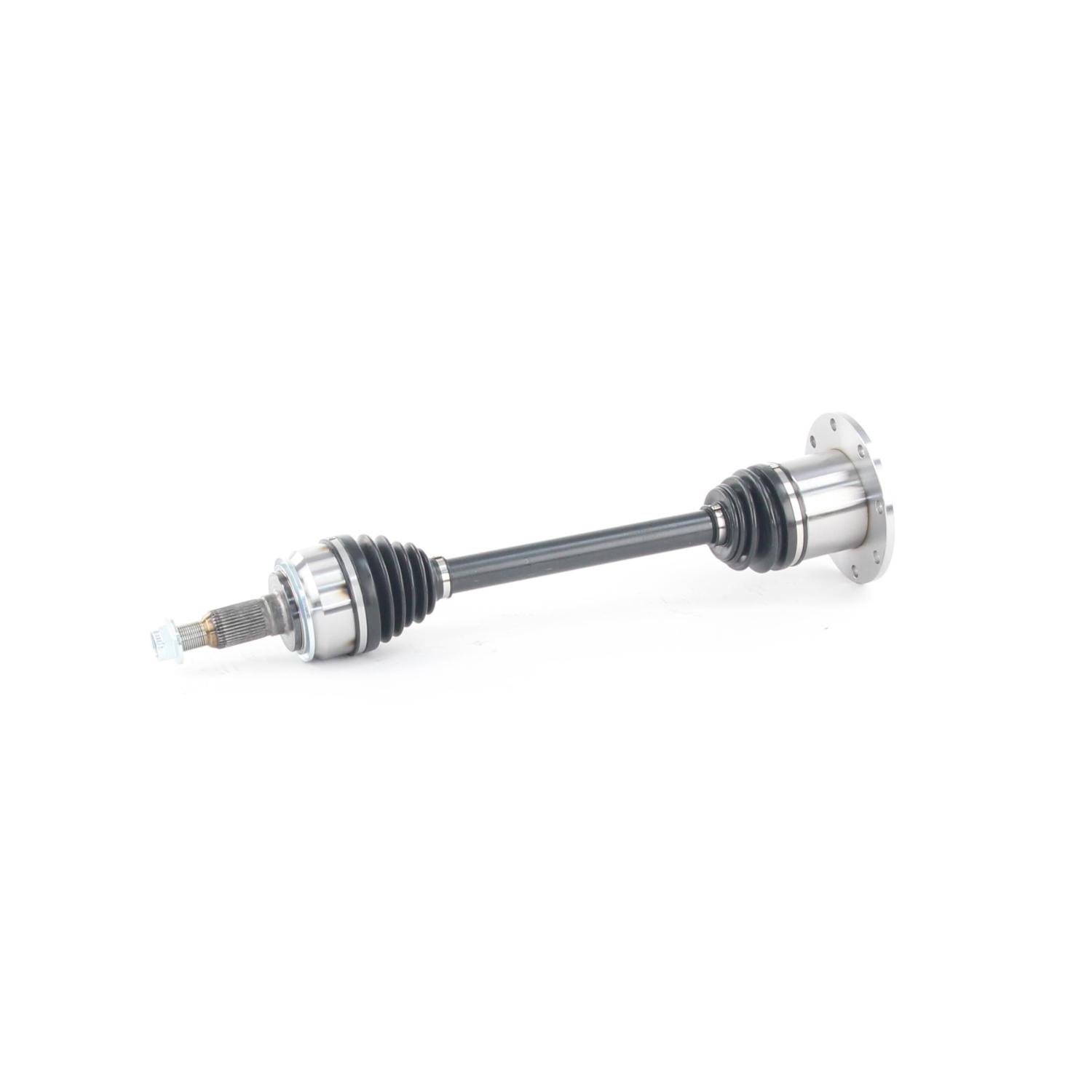

Name: TrakMotive GM-8521 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-gm8521
Price: 303.03 CAD
Availability: LimitedAvailability

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

OEM Part Number 84747326
TrakMotive GM-8521

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Overall Compressed Length (mm)	728
Overall Compressed Length (in)	28.66
Overall Extended Length (in)	31.02
Overall Extended Length (mm)	788
Inboard Shaft Connection Style	Bolt-on
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	33
Axle Nut Thread Size	M27x2
Axle Nut Head Type	Hex
Axle Nut Height (mm)	22
Axle Nut Length (mm)	38
Axle Nut Locking Type	Self-Lock
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	8
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	33
UPC	00840140506488
Origin Country:	CN
Weight:	31.66 lbs (14.4 kg)
Package Length:	33.5" (85 cm)
Package Width:	7.9" (20 cm)
Package Height:	7.9" (20 cm)

1 Year Warranty
