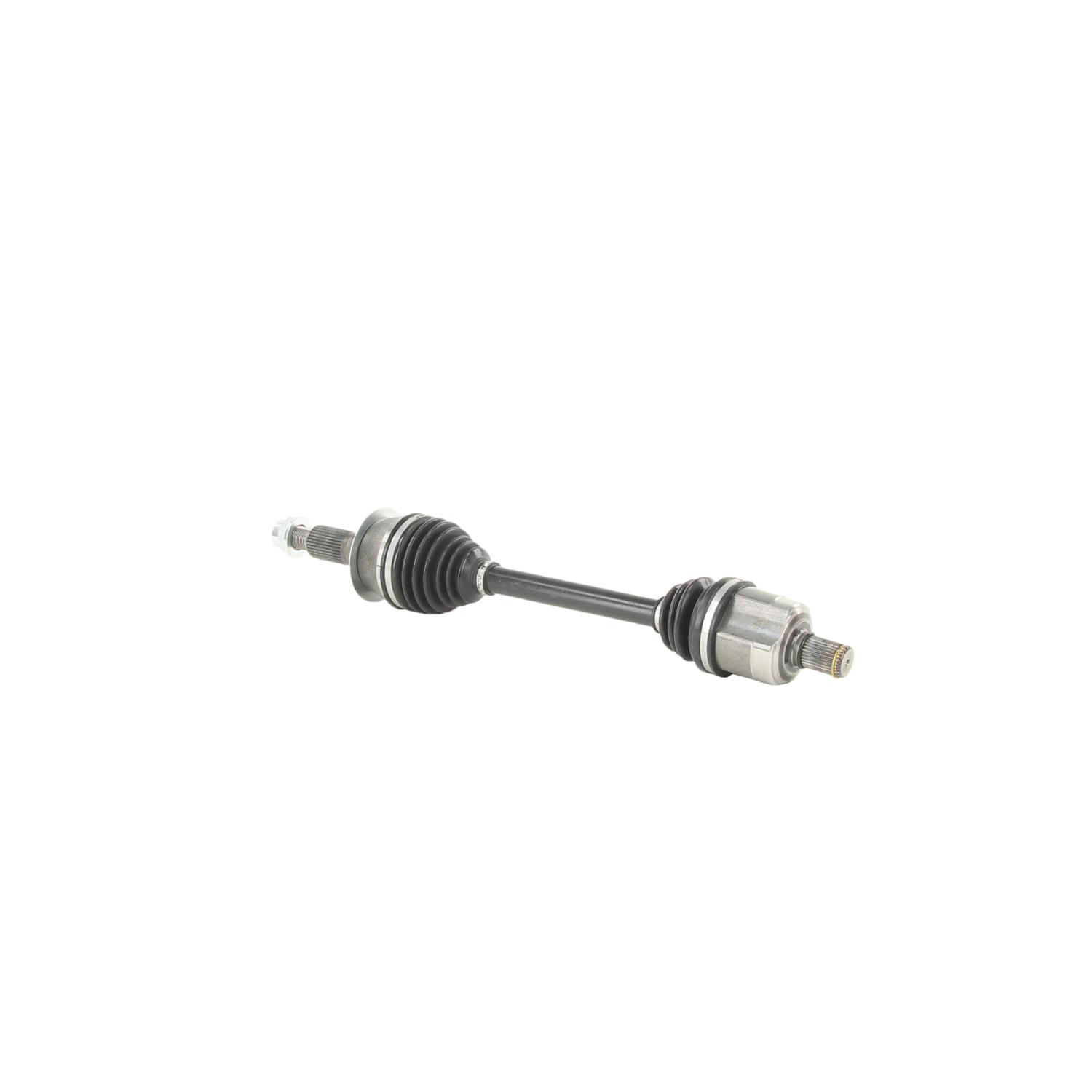

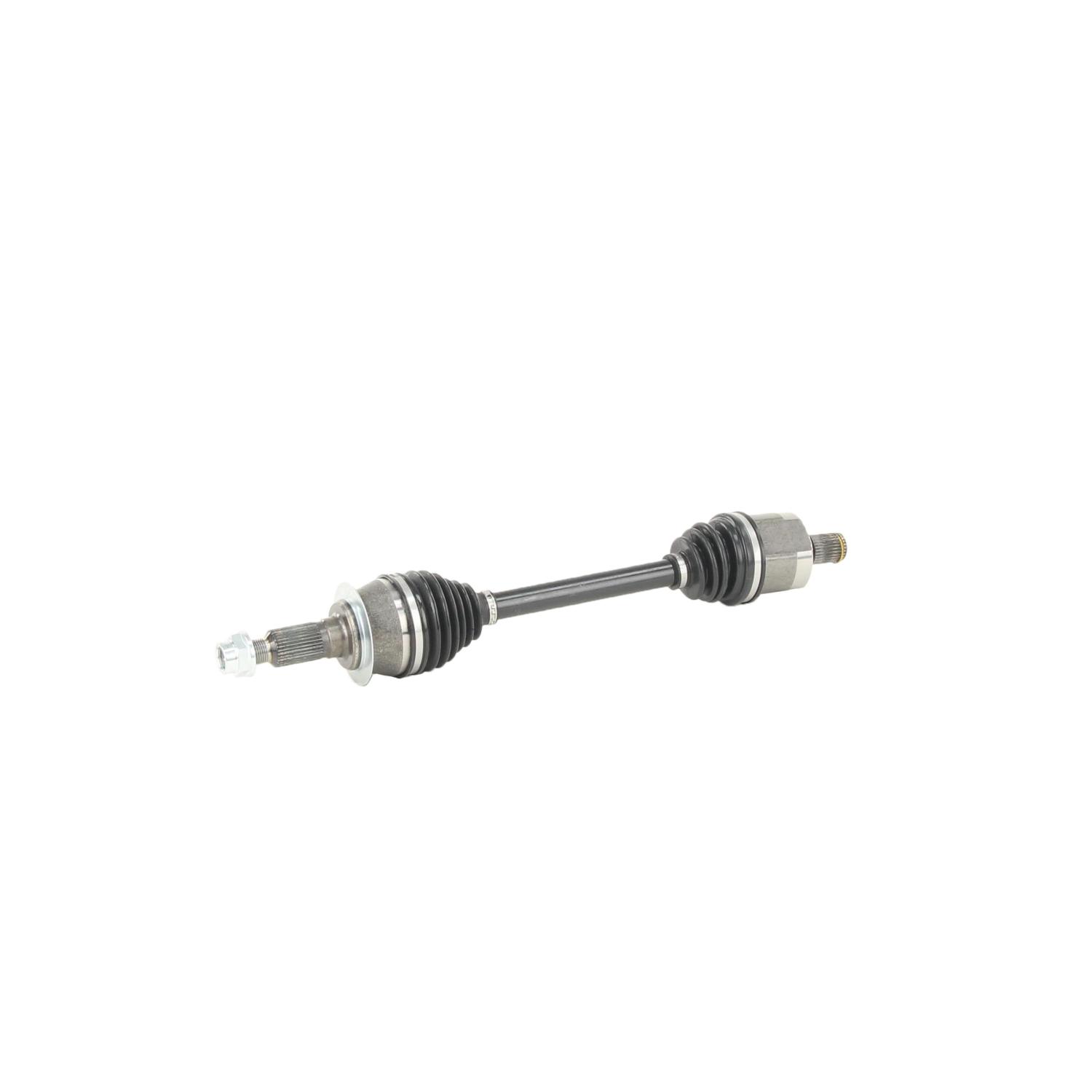

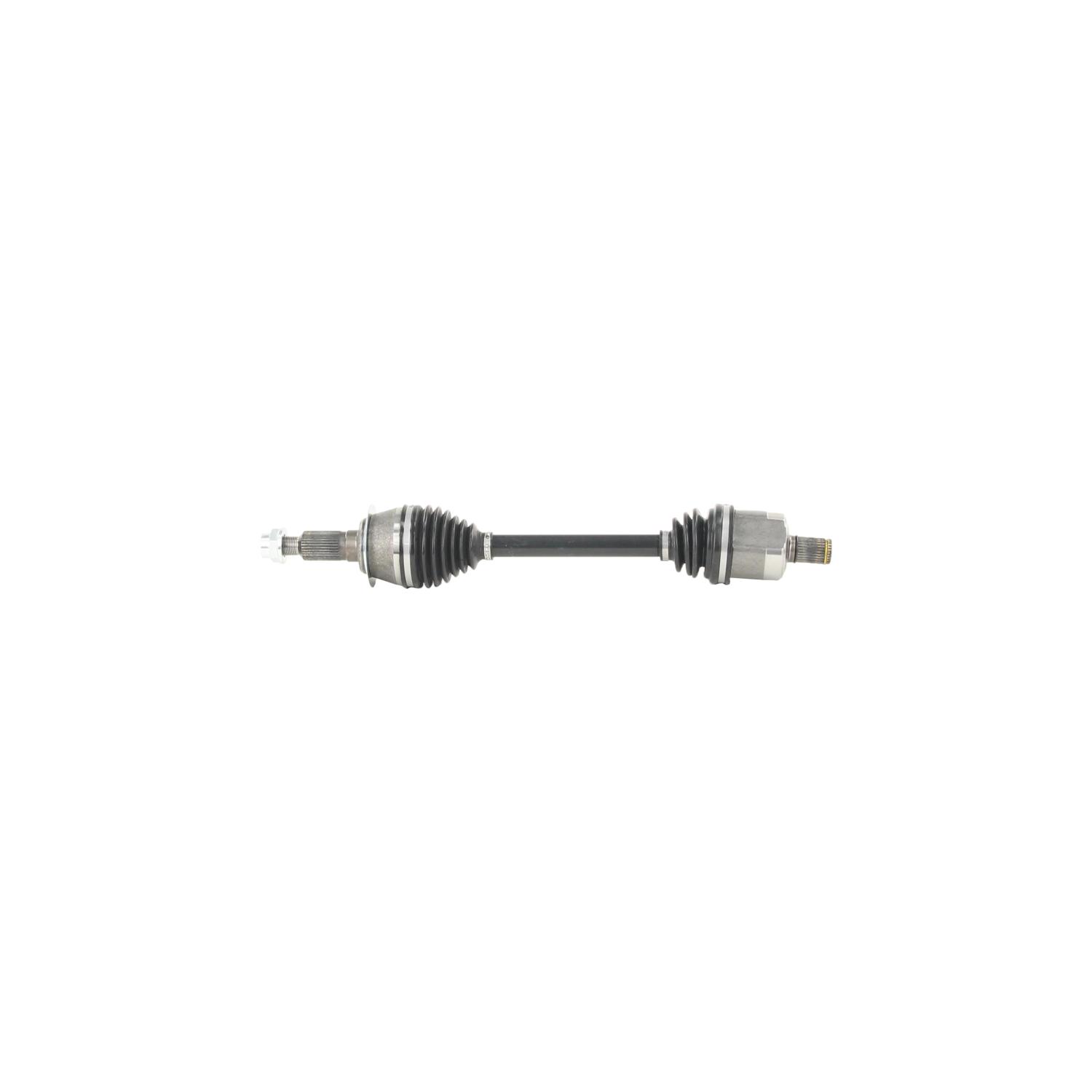

TrakMotive GM-8515 CV Axle Shaft

Name: TrakMotive GM-8515 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-gm8515
Price: 185.51 CAD
Availability: InStock

CV Axle Shaft

$185.51

10+ In Stock

Ships: Wednesday Apr. 1st

Pick-Up: Ready in 1 Hour Wednesday Apr. 1st

Brand: TrakMotive

Stock #: GM8515

Condition: New

UPC: 00840140504552

Weight: 18.44 lbs (8.38 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	631
Overall Compressed Length (in)	24.84
Overall Extended Length (in)	26.71
Overall Extended Length (mm)	679
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	28
Number Of Outboard Splines	33
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	36
Axle Nut Thread Size	M24x2
Axle Nut Head Type	Hex
Axle Nut Height (in)	1
Axle Nut Length (in)	1.64
Axle Nut Height (mm)	26
Axle Nut Length (mm)	42
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.42
Number Of Bolt Holes	0
Outboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	36
UPC	00840140504552
Origin Country:	CN
Weight:	18.44 lbs (8.38 kg)
Package Length:	31.1" (79 cm)
Package Width:	4.3" (11 cm)
Package Height:	4.3" (11 cm)
