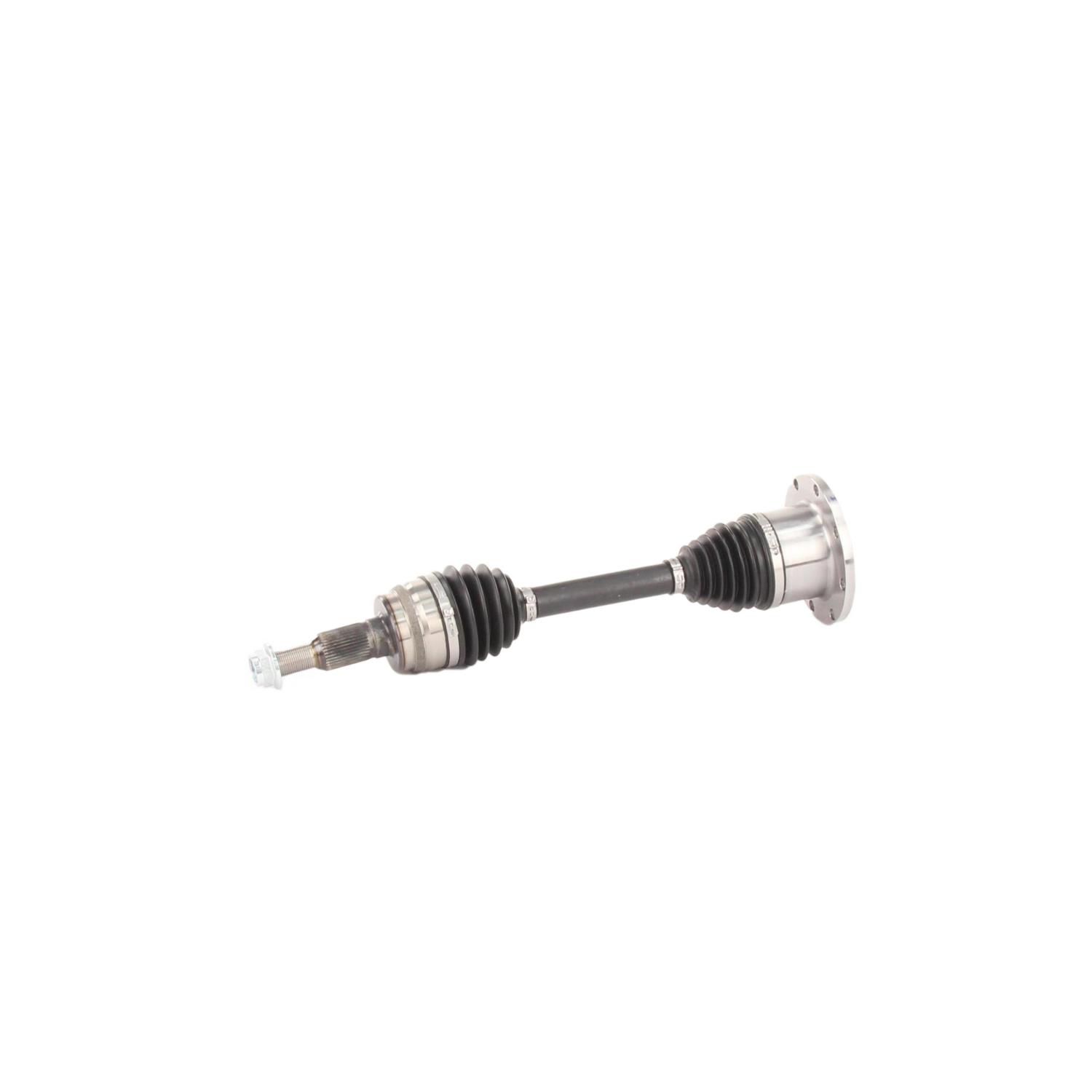

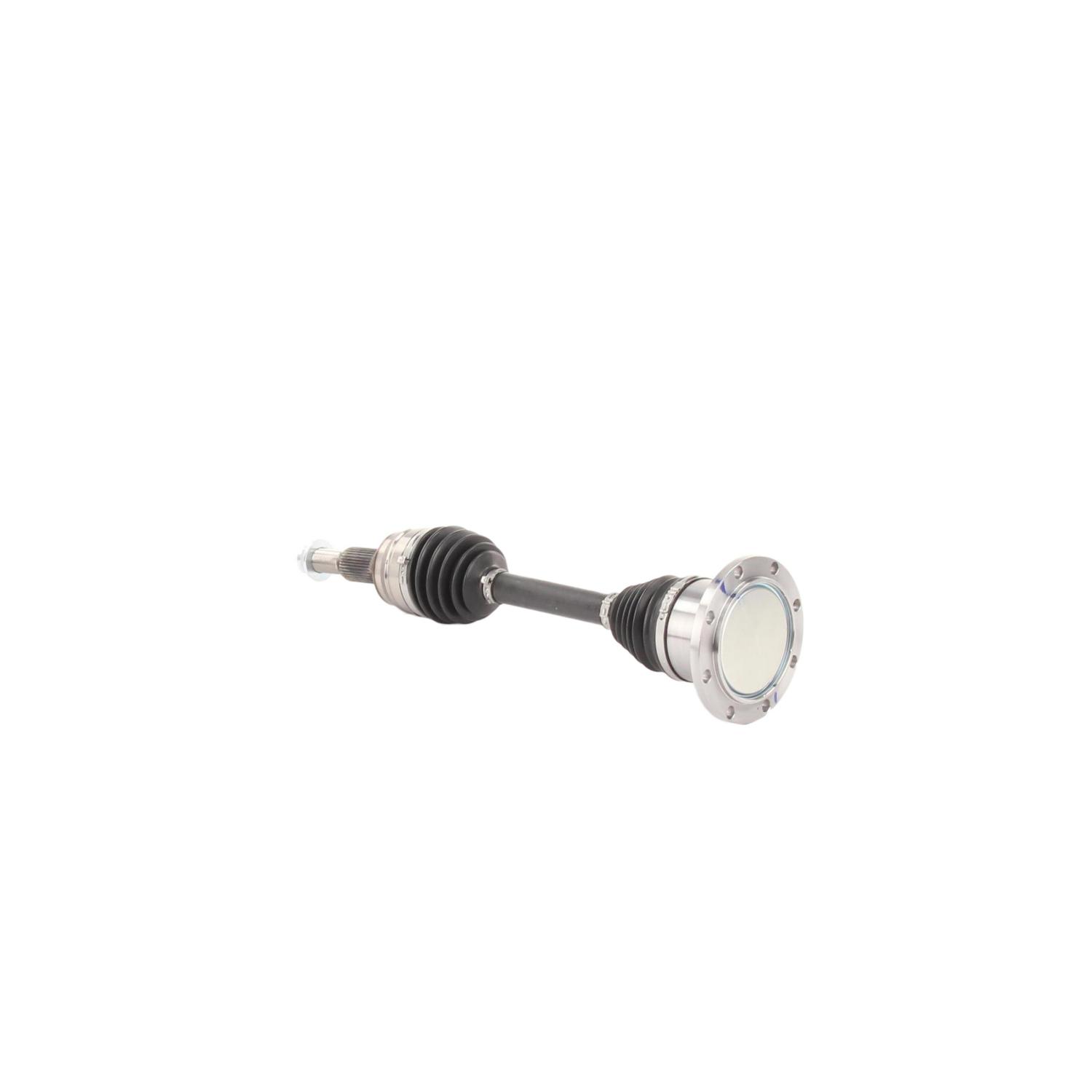

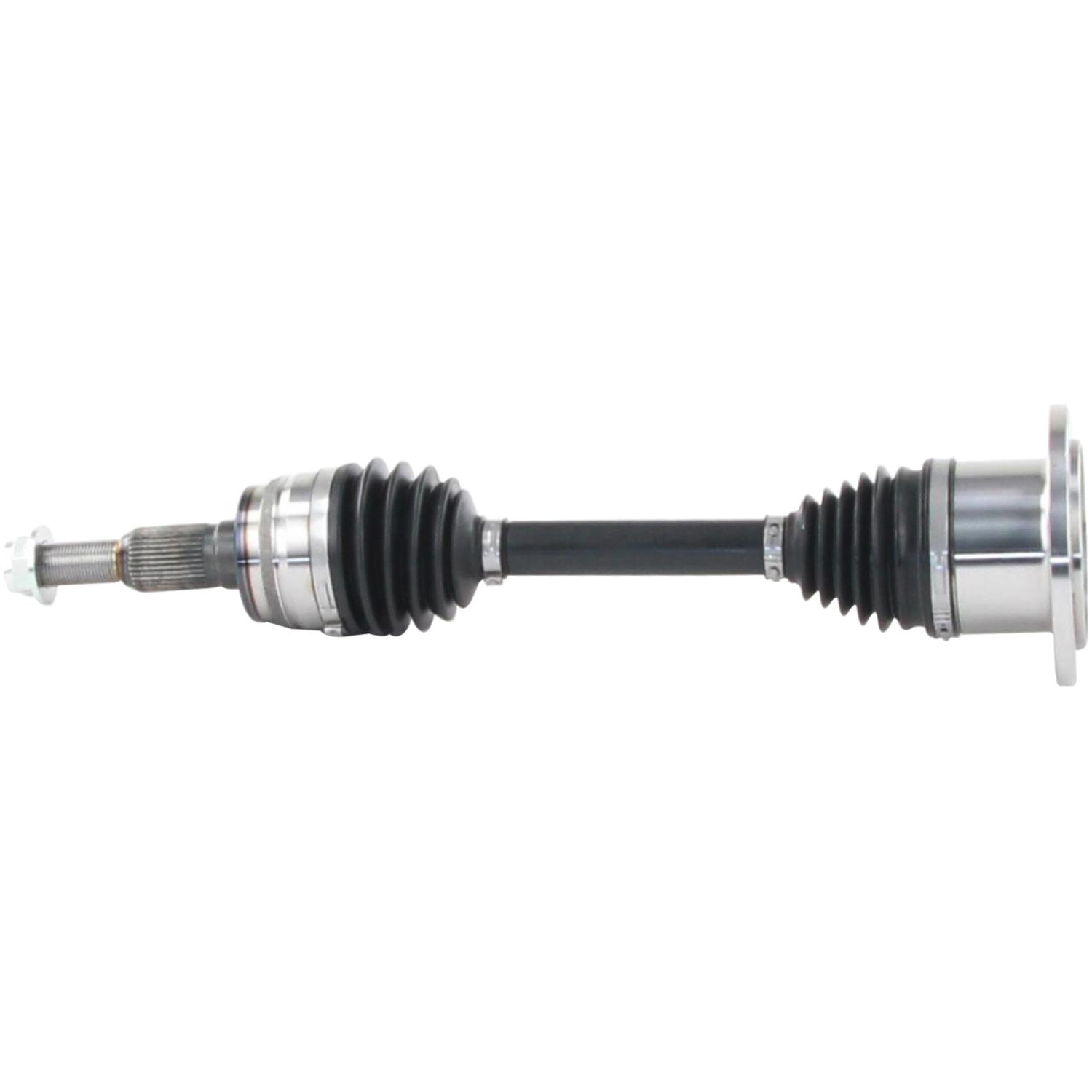

TrakMotive GM-8253HDX CV Axle Shaft

Name: TrakMotive GM-8253HDX CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-gm8253hdx
Price: 202.88 CAD
Availability: InStock

Extreme Climate CV Axle Shaft

$202.88

In Stock

Ships: Today, Apr. 1st

Pick-Up: Ready in 2-4 Hours (Order before 3:00 PM)

Brand: TrakMotive

Stock #: GM8253HDX

Condition: New

UPC: 00195013043639

Weight: 22.53 lbs (10.25 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	585
Overall Compressed Length (in)	23.03
Inboard Shaft Connection Style	Flange
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	0
Number Of Outboard Splines	36
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	33
Axle Nut Thread Size	M27x2
Axle Nut Head Type	Hex
Axle Nut Height (in)	.86
Axle Nut Length (in)	1.5
Axle Nut Height (mm)	22
Axle Nut Length (mm)	38
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.29
Number Of Bolt Holes	0
Inboard Joint Boot Material	Thermoplastic
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Flange
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	33
UPC	00195013043639
Origin Country:	CN
Weight:	22.53 lbs (10.25 kg)
Package Length:	26.4" (67 cm)
Package Width:	6.7" (17 cm)
Package Height:	6.7" (17 cm)
