TrakMotive GM-8063 CV Axle Shaft

Name: TrakMotive GM-8063 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-gm8063
Price: 102.56 CAD
Availability: InStock

CV Axle Shaft

$152.43

$102.56

Limited Stock

Ships: Monday Apr. 13th

Pick-Up: Ready in 2-4 Hours Saturday Apr. 11th

Brand: TrakMotive

Stock #: GM8063

Condition: New

UPC: 844084030634

Weight: 14.97 lbs (6.81 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

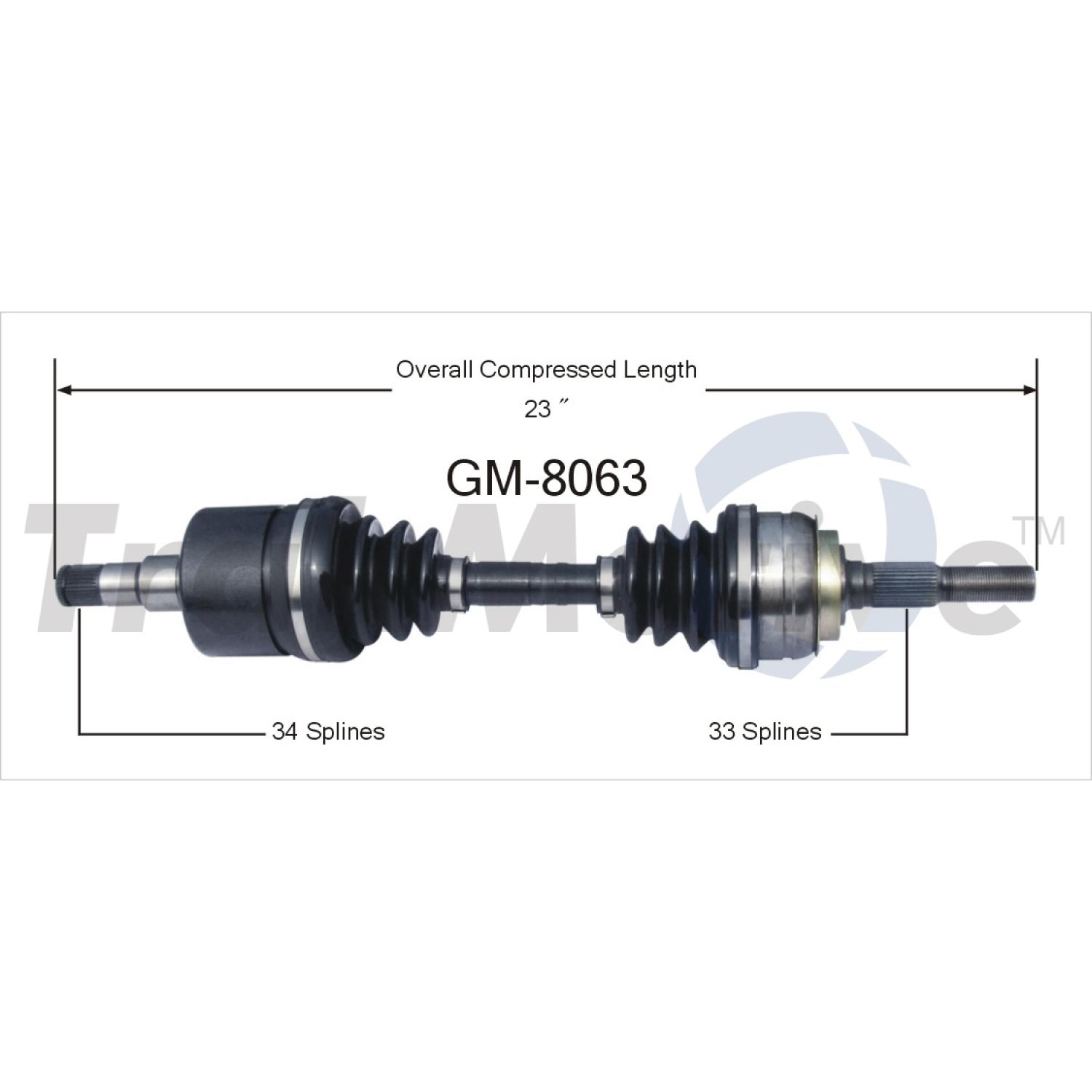

Overall Compressed Length (mm)	584
Overall Compressed Length (in)	22.99
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	34
Number Of Outboard Splines	33
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	30
Axle Nut Thread Size	M20X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.56
Axle Nut Length (in)	1.33
Axle Nut Height (mm)	14
Axle Nut Length (mm)	35
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	1.67
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	30
UPC	844084030634
Origin Country:	CN
Weight:	14.97 lbs (6.81 kg)
Package Length:	26.8" (68 cm)
Package Width:	4.3" (11 cm)
Package Height:	4.3" (11 cm)
