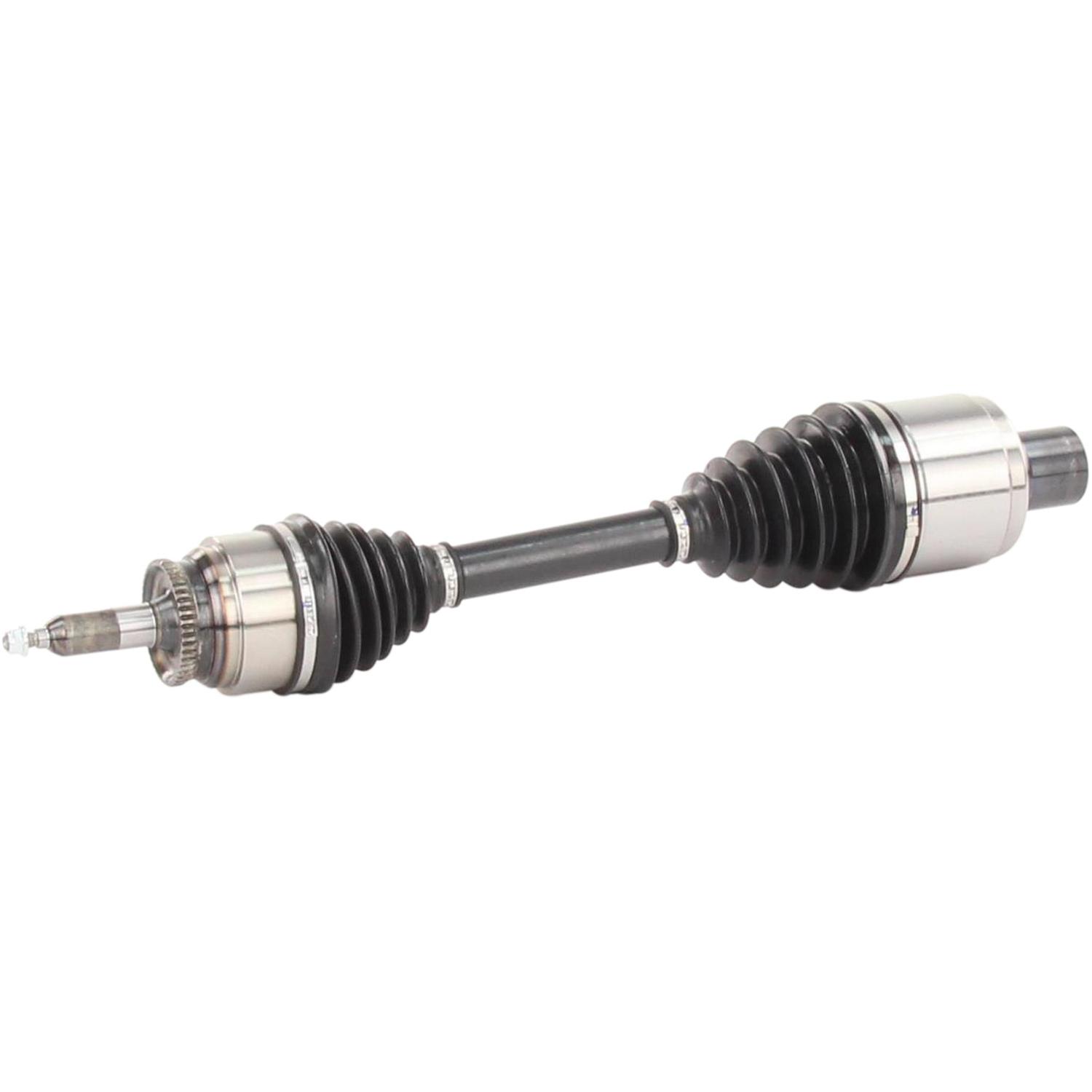

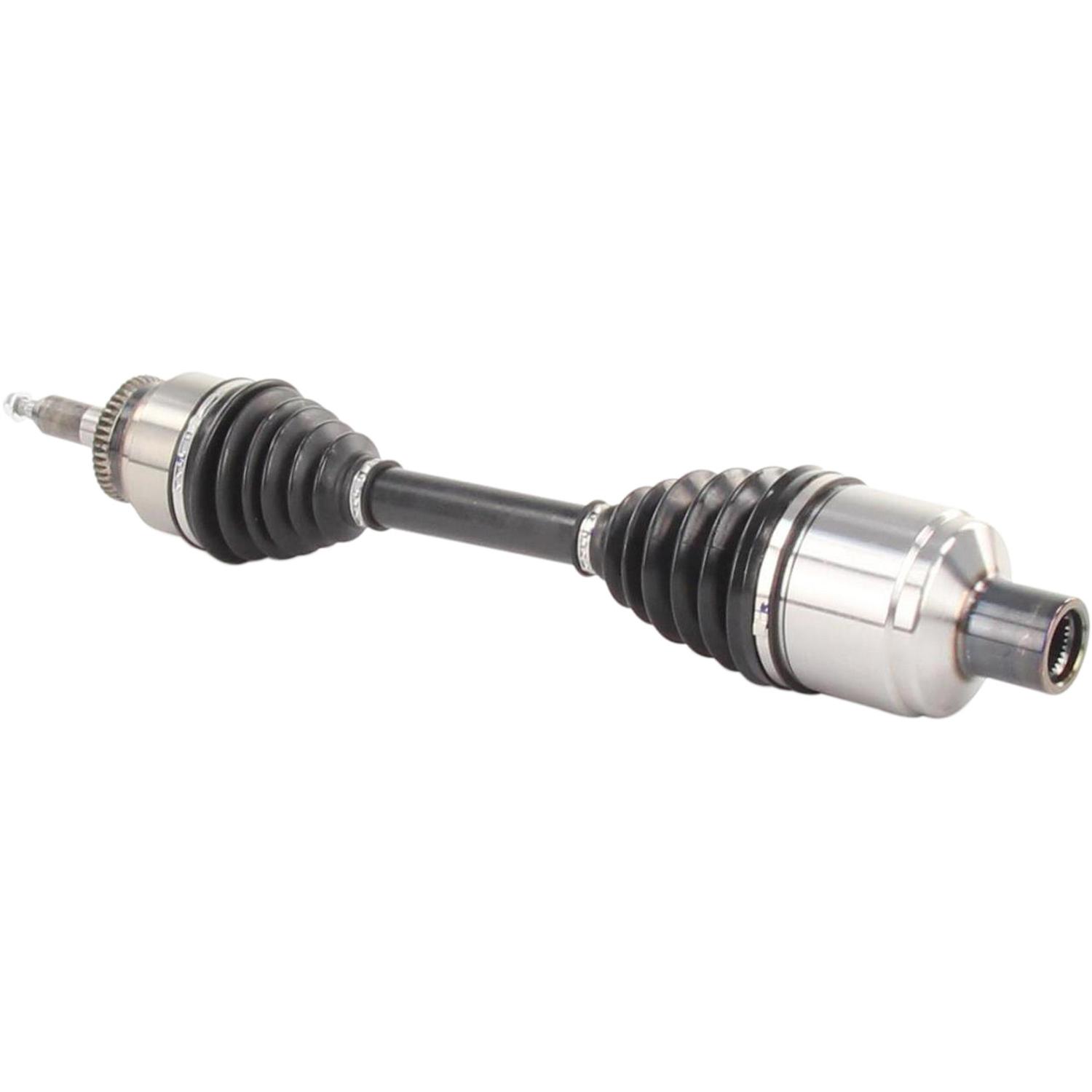

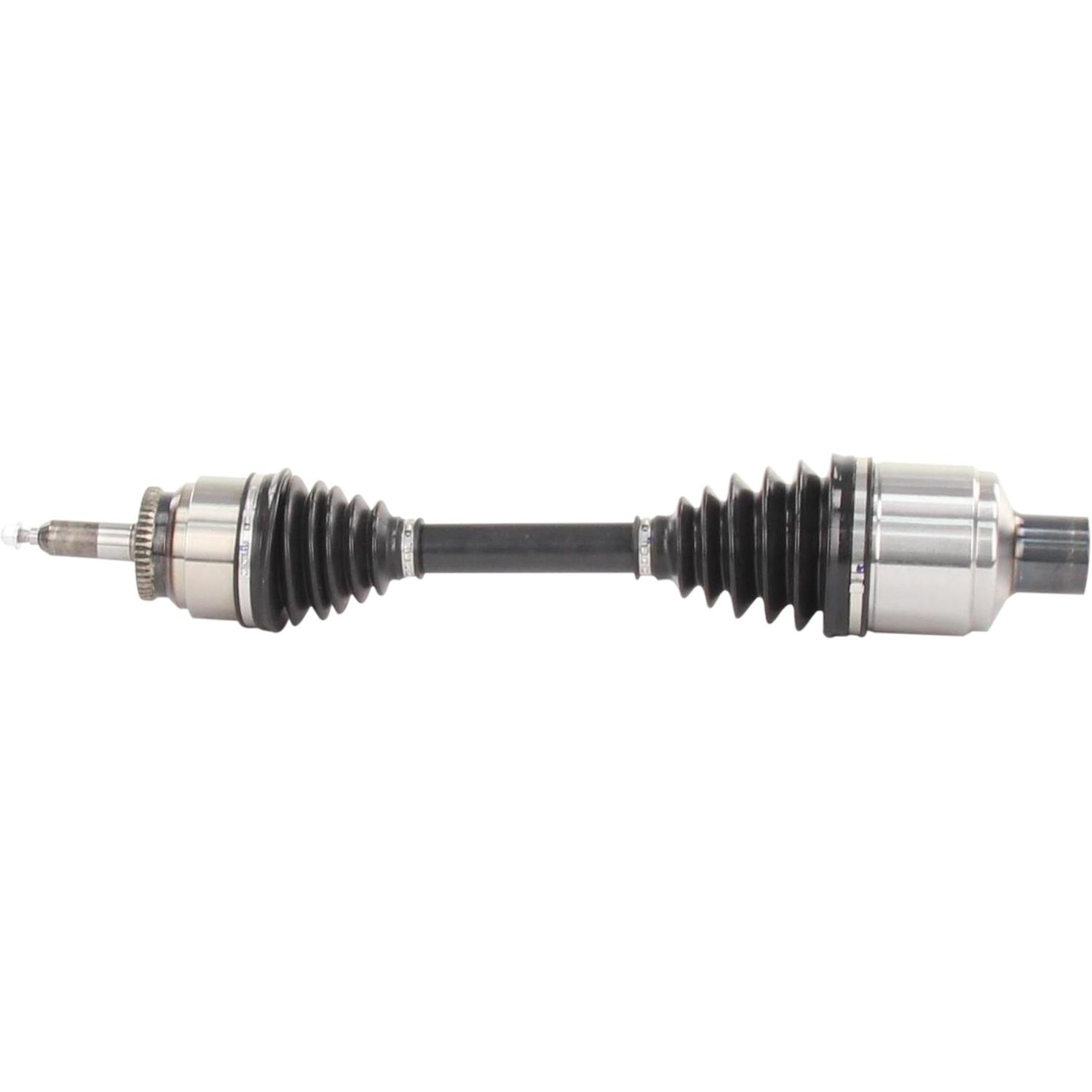

TrakMotive FD-8398 CV Axle Shaft

Name: TrakMotive FD-8398 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-fd8398
Price: 172.07 CAD
Availability: InStock

AAR CV Axle Shaft

$172.07

In Stock

Ships: Today, Apr. 3rd

Pick-Up: Ready in 2-4 Hours (Order before 3:00 PM)

Brand: TrakMotive

Stock #: FD8398

Condition: New

UPC: 00840140503951

Weight: 25.24 lbs (11.48 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Overall Compressed Length (mm)	644
Overall Compressed Length (in)	25.38
Inboard Shaft Connection Style	Spline
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	27-2T
Number Of Outboard Splines	45
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	14
Axle Nut Thread Size	M10x1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.41
Axle Nut Length (in)	.64
Axle Nut Height (mm)	11
Axle Nut Length (mm)	17
Axle Nut Locking Type	Standard
Axle Nut Hex Size (in)	.55
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	14
UPC	00840140503951
Origin Country:	CN
Weight:	25.24 lbs (11.48 kg)
Package Length:	33.5" (85 cm)
Package Width:	5.9" (15 cm)
Package Height:	6.1" (15.5 cm)
