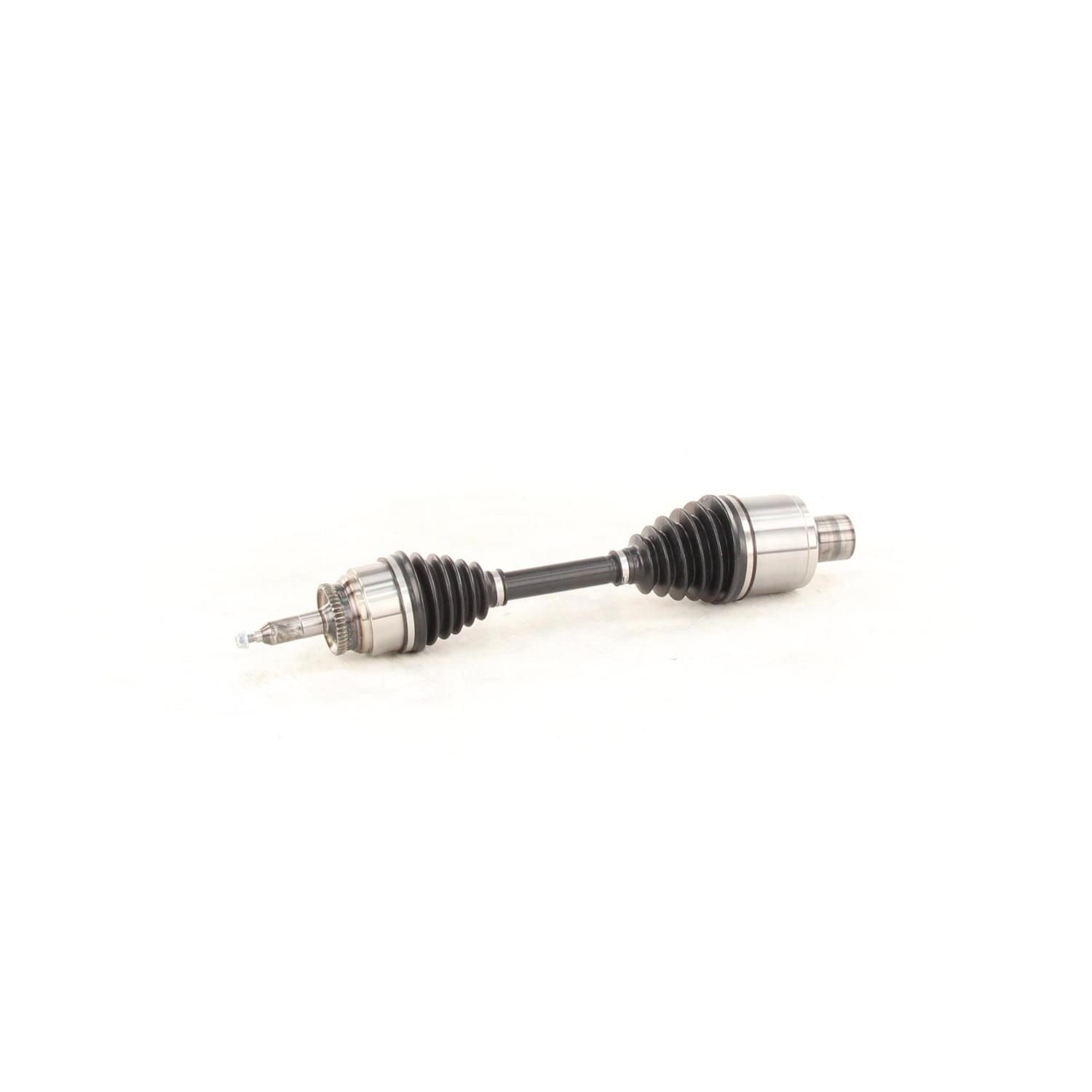

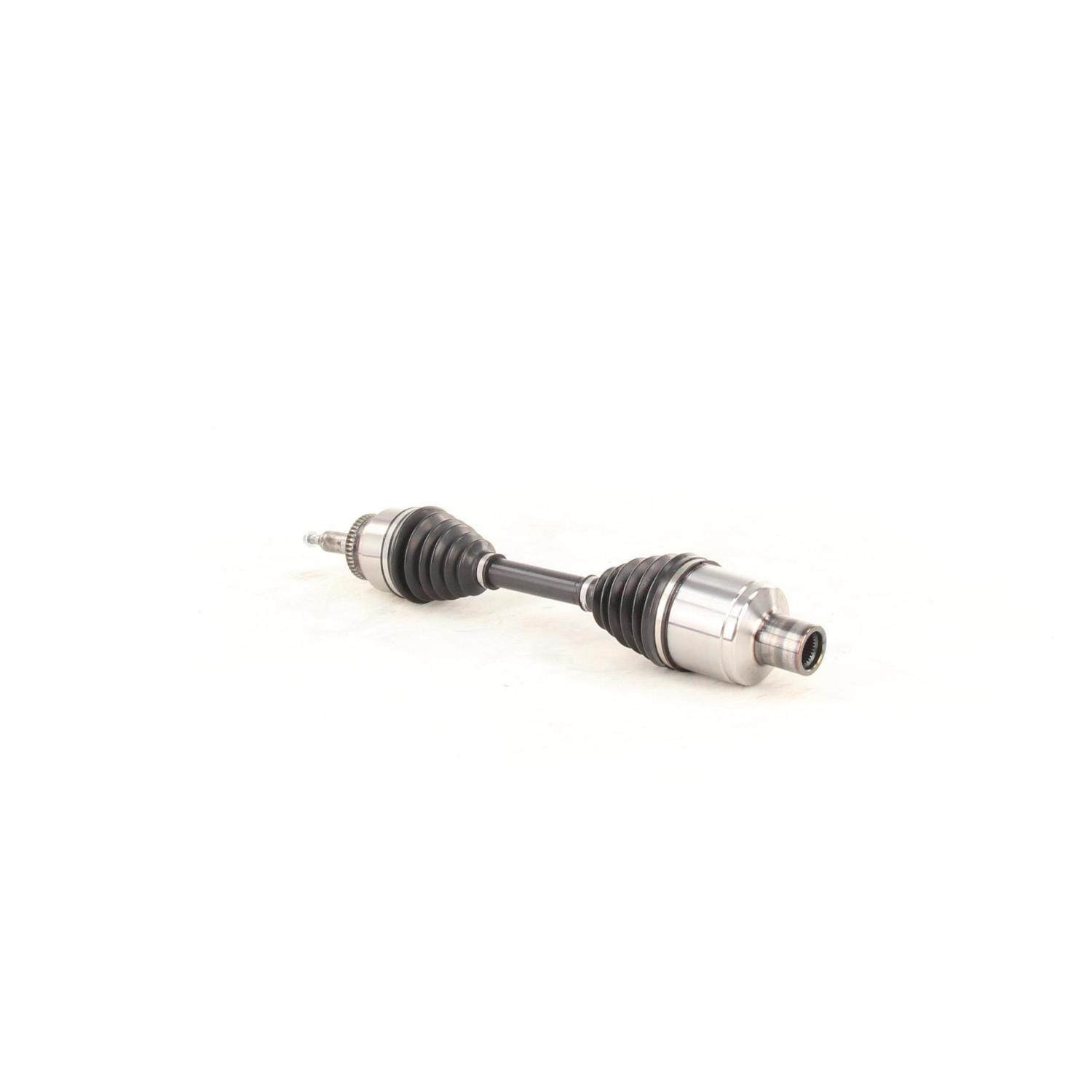

TrakMotive FD-8274 CV Axle Shaft

Name: TrakMotive FD-8274 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-fd8274
Price: 175.81 CAD
Availability: InStock

CV Axle Shaft

$175.81

In Stock

Ships: Friday Apr. 3rd

Pick-Up: Ready in 1 Hour Friday Apr. 3rd

Brand: TrakMotive

Stock #: FD8274

Condition: New

UPC: 844084022745

Weight: 22.03 lbs (10.01 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

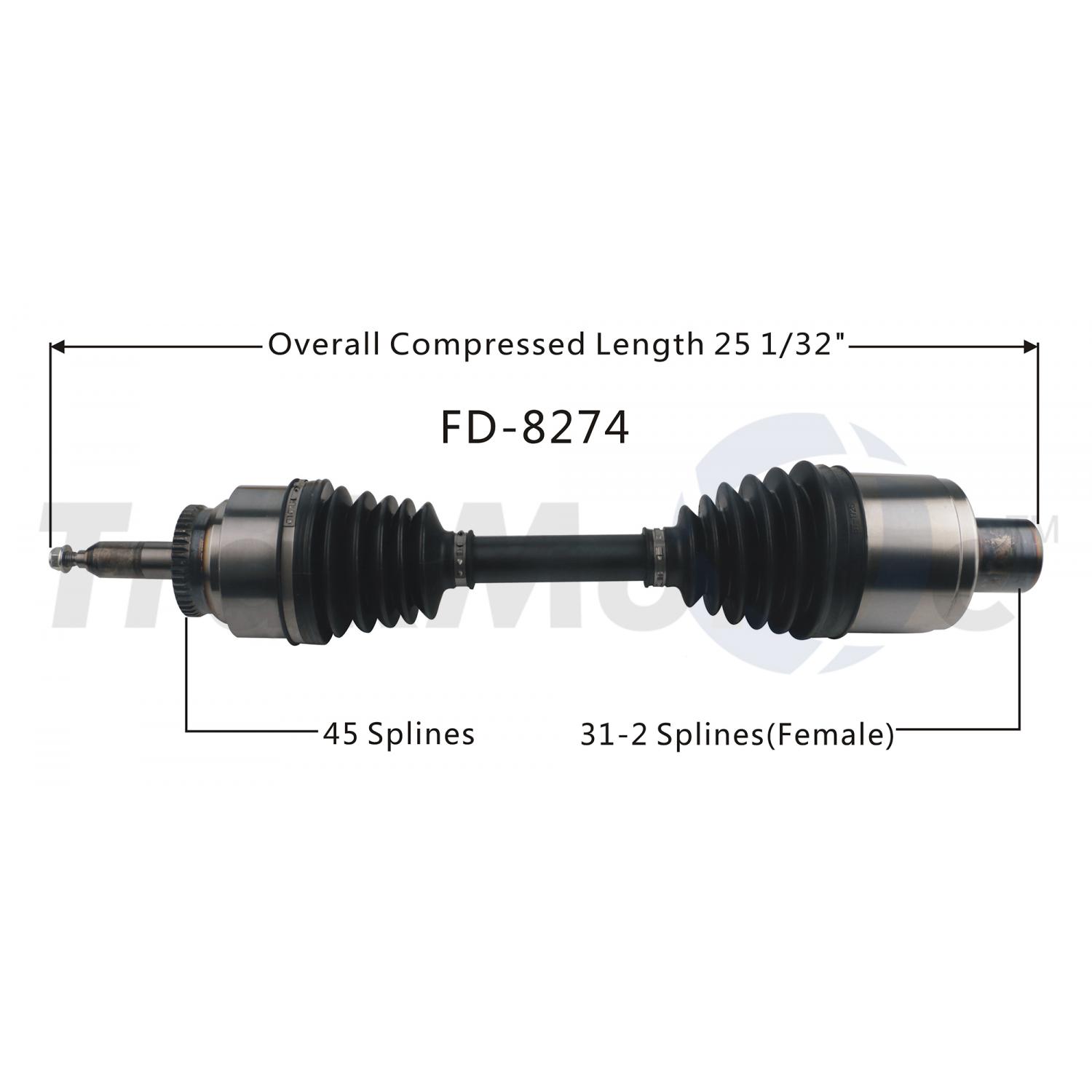

Overall Compressed Length (mm)	636
Overall Compressed Length (in)	25.04
Inboard Shaft Connection Style	Female
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	31-2T
Number Of Outboard Splines	45
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	14
Axle Nut Thread Size	M10x1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.4
Axle Nut Length (in)	.63
Axle Nut Height (mm)	11
Axle Nut Length (mm)	16
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	.56
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	14
UPC	844084022745
Origin Country:	CN
Weight:	22.03 lbs (10.01 kg)
Package Length:	33.5" (85 cm)
Package Width:	5.9" (15 cm)
Package Height:	6.1" (15.5 cm)
