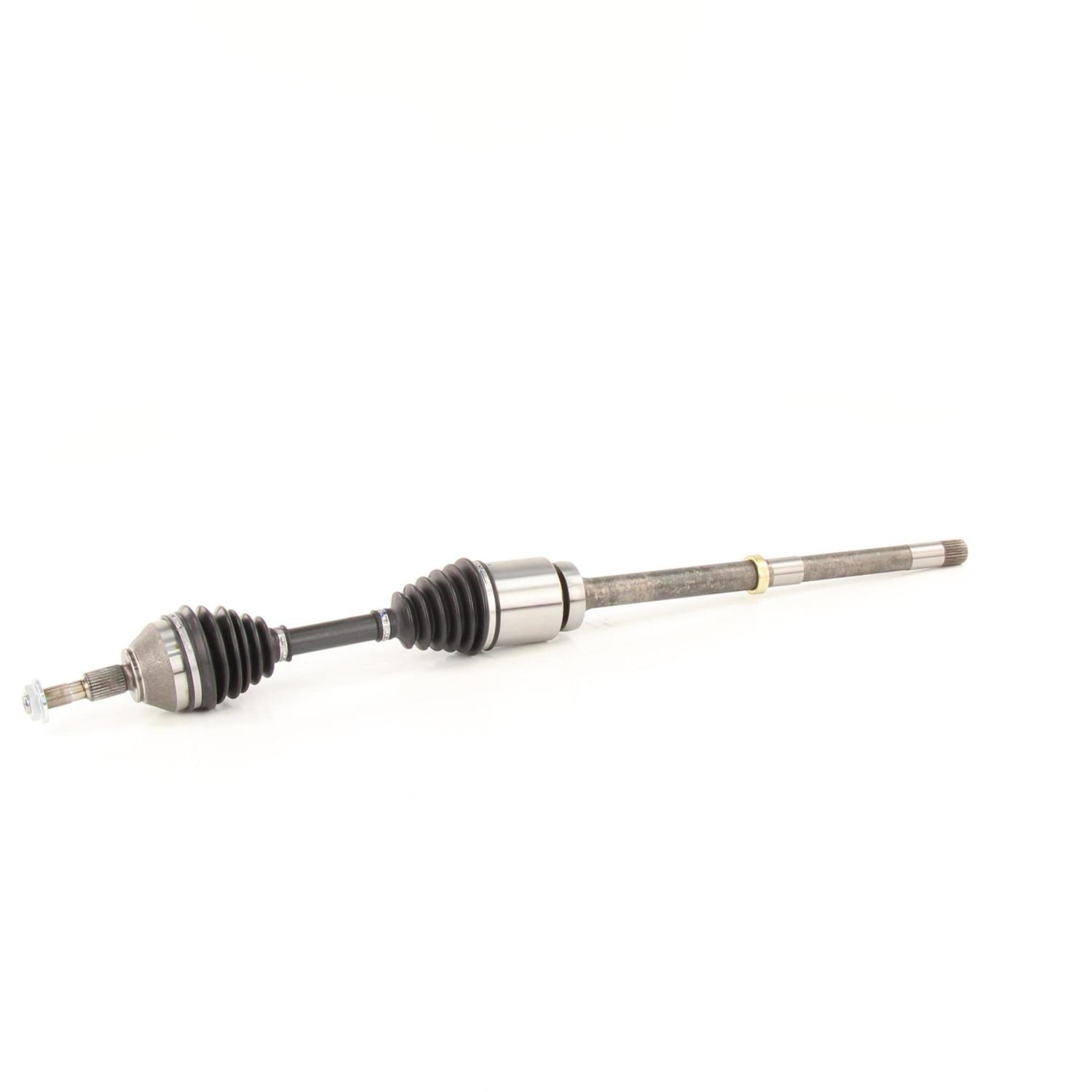

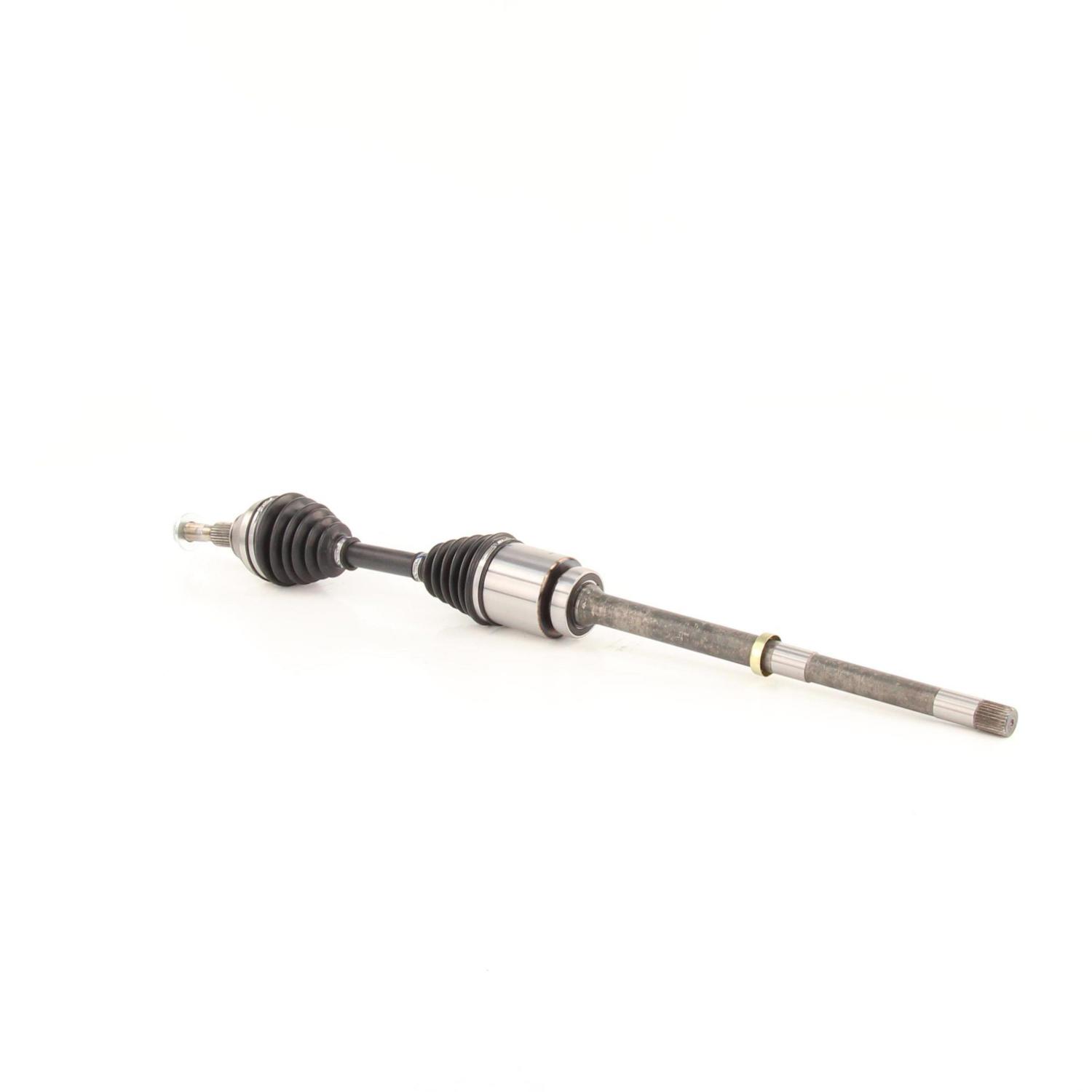

TrakMotive FD-8259 CV Axle Shaft

Name: TrakMotive FD-8259 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-fd8259
Price: 179.74 CAD
Availability: InStock

CV Axle Shaft

$324.88

$179.74

Limited Stock

Ships: Thursday Apr. 2nd

Pick-Up: Ready in 2-4 Hours (Order before 3:00 PM)

Brand: TrakMotive

Stock #: FD8259

Condition: New

UPC: 844084022592

Weight: 24.86 lbs (11.3 kg)

Accepted Payments: Visa, MasterCard, PayPal

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

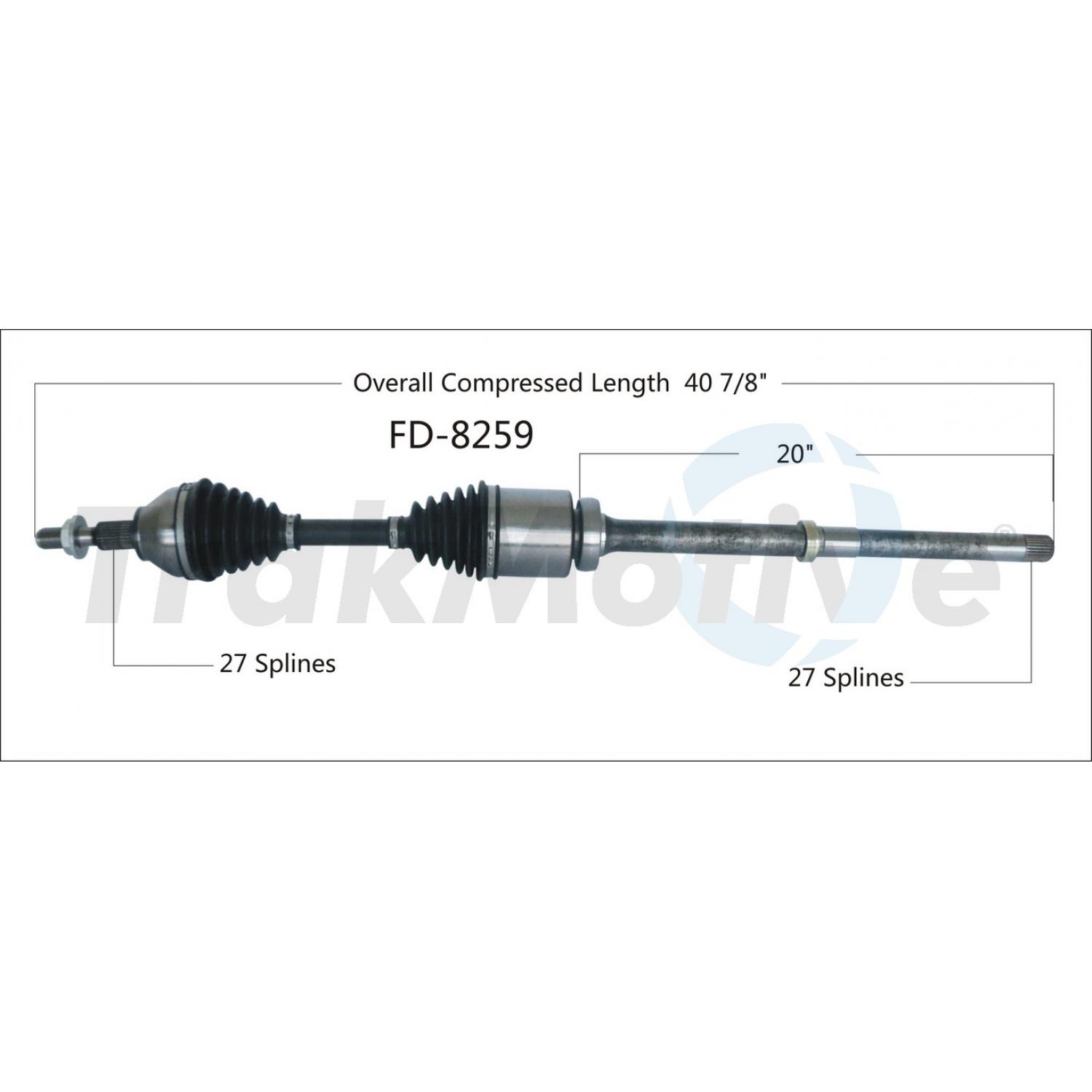

Overall Compressed Length (mm)	1038
Overall Compressed Length (in)	40.87
Inboard Shaft Connection Style	Male
Outboard Shaft Connection Style	CONVENTIONAL
Number Of Inboard Splines	27
Number Of Outboard Splines	27
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	32
Axle Nut Thread Size	M22X1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.57
Axle Nut Length (in)	1.5
Axle Nut Height (mm)	15
Axle Nut Length (mm)	37
Axle Nut Locking Type	Stake
Axle Nut Hex Size (in)	1.25
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Male
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	32
UPC	844084022592
Origin Country:	CN
Weight:	24.86 lbs (11.3 kg)
Package Length:	45.3" (115 cm)
Package Width:	5.1" (13 cm)
Package Height:	5.1" (13 cm)
