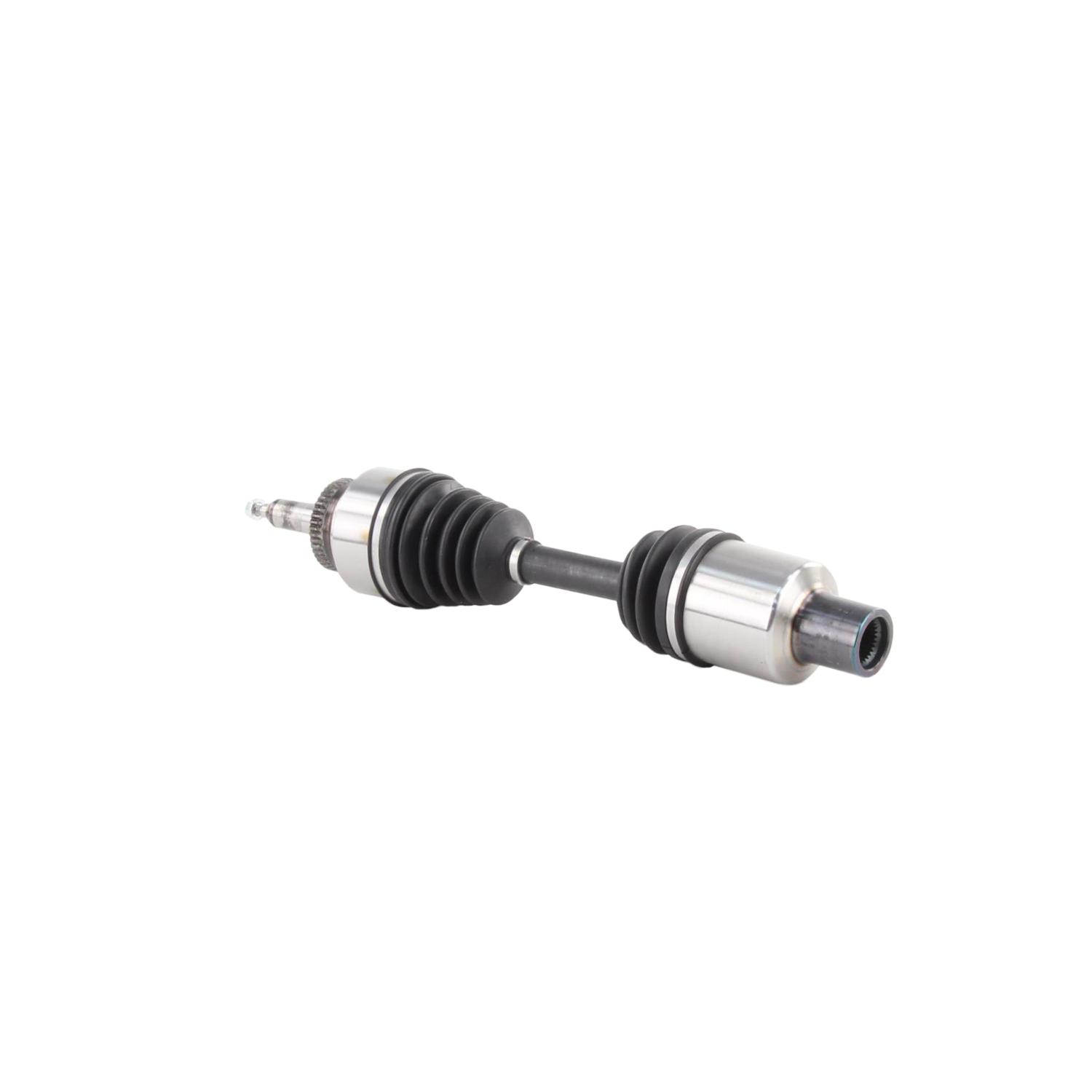

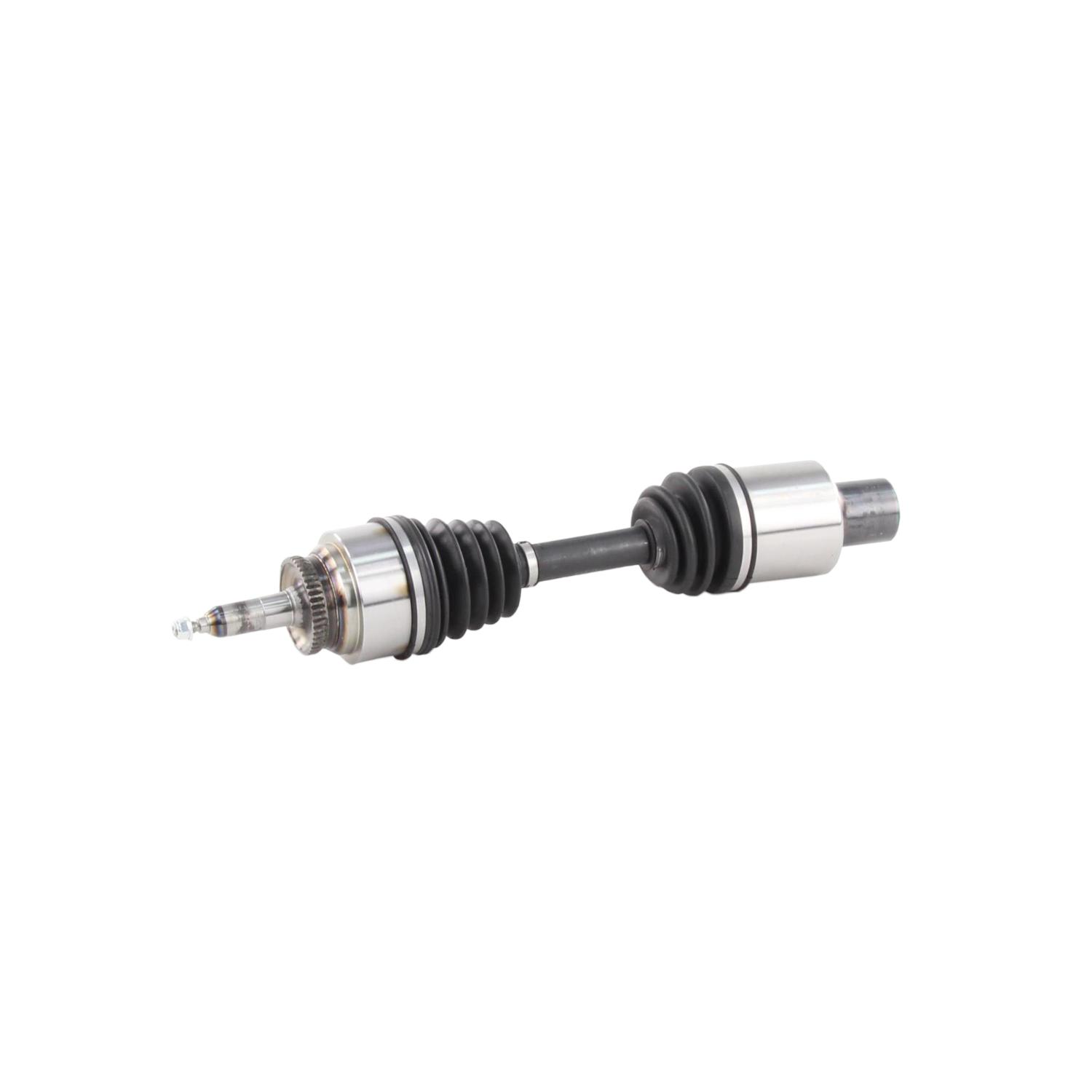

Name: TrakMotive FD-8173 CV Axle Shaft
Brand: TrakMotive
SKU: trakmotive-fd8173
Price: 134.54 CAD
Availability: InStock

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

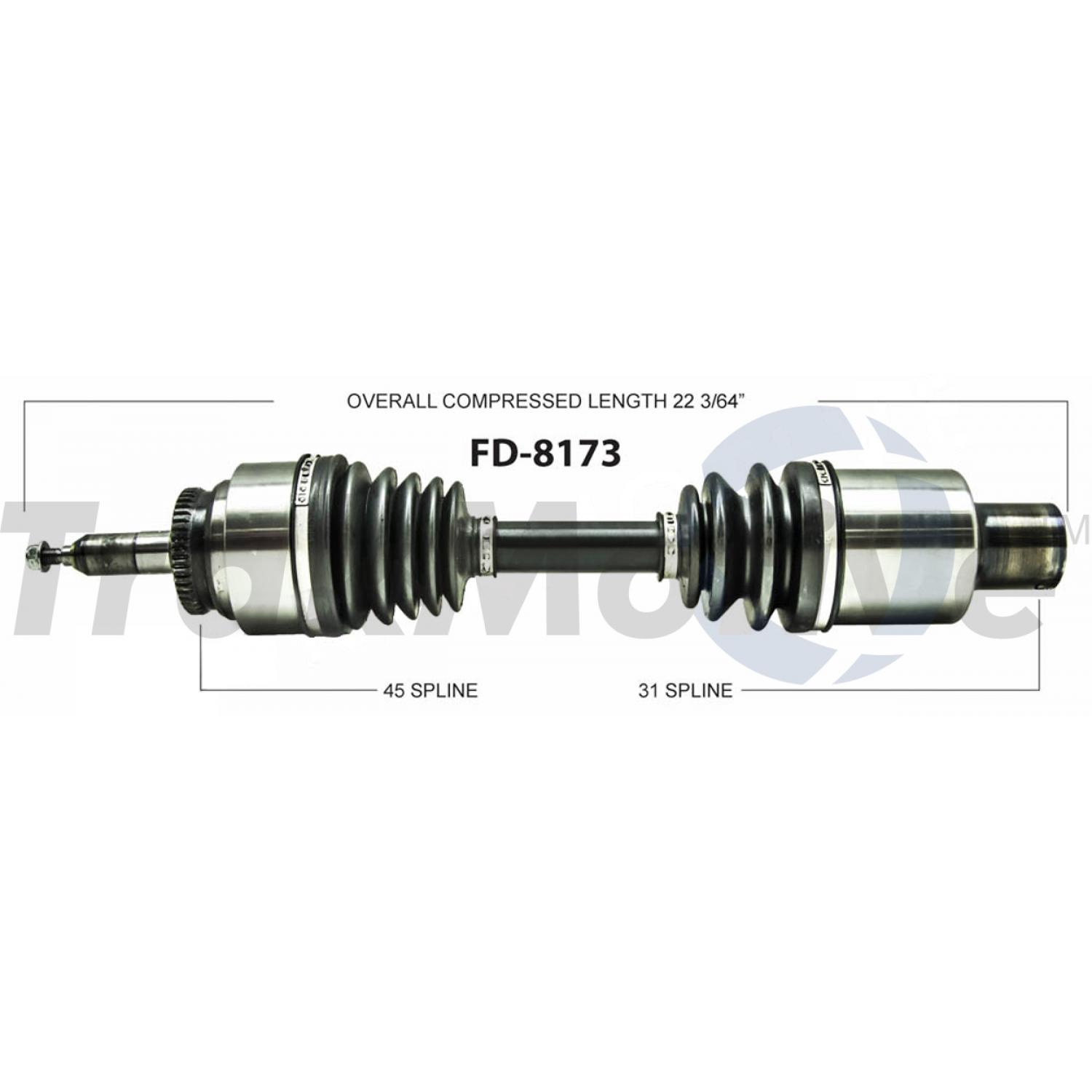

Overall Compressed Length (mm)	560
Overall Compressed Length (in)	22.05
Inboard Shaft Connection Style	Female
Outboard Shaft Connection Style	Spline
Number Of Inboard Splines	31
Number Of Outboard Splines	45
Abs Tone Ring Included	No
ABS Ring Tooth Count	0
Axle Nut Included	Yes
Axle Nut Hex Size (mm)	14
Axle Nut Thread Size	M10x1.5
Axle Nut Head Type	Hex
Axle Nut Height (in)	.4
Axle Nut Length (in)	.63
Axle Nut Height (mm)	11
Axle Nut Length (mm)	16
Axle Nut Locking Type	Self-Lock
Axle Nut Hex Size (in)	.56
Number Of Bolt Holes	0
Inboard Joint Boot Material	Neoprene
Number Of Inboard Shaft Bolts	0
Number Of Outboard Shaft Bolts	0
Inboard Joint Type	Female
Outboard Joint Type	CONVENTIONAL
Number Of Inboard Joint Bolt Holes	0
Number Of Outboard Joint Bolt Holes	0
Grade Type	Premium
Axle Nut Socket Size	14
UPC	844084021731
Origin Country:	CN
Weight:	19.39 lbs (8.81 kg)
Package Length:	24" (61 cm)
Package Width:	5.1" (13 cm)
Package Height:	5.1" (13 cm)

1 Year Warranty
