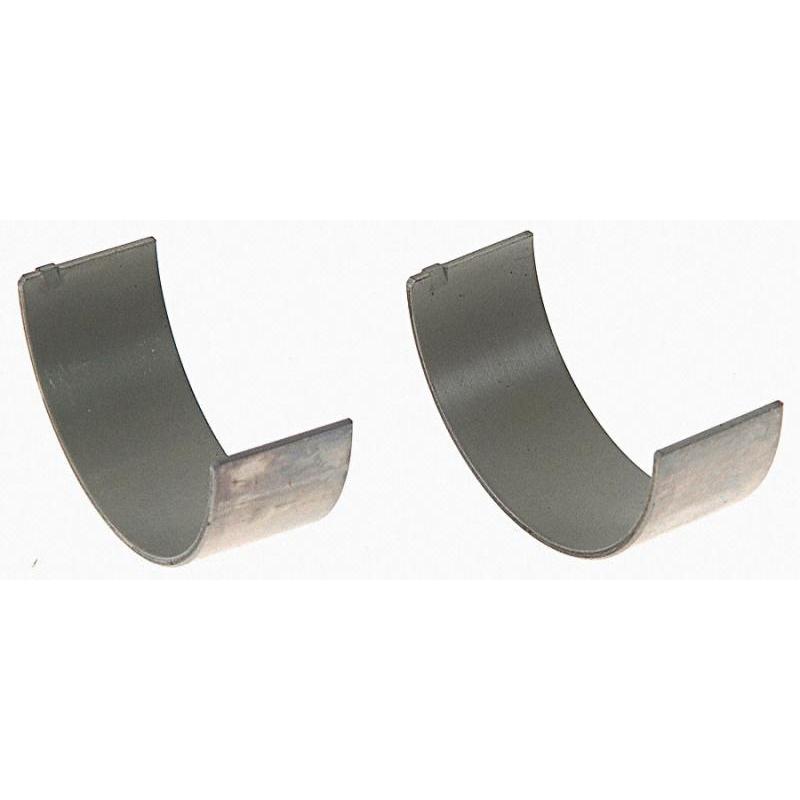

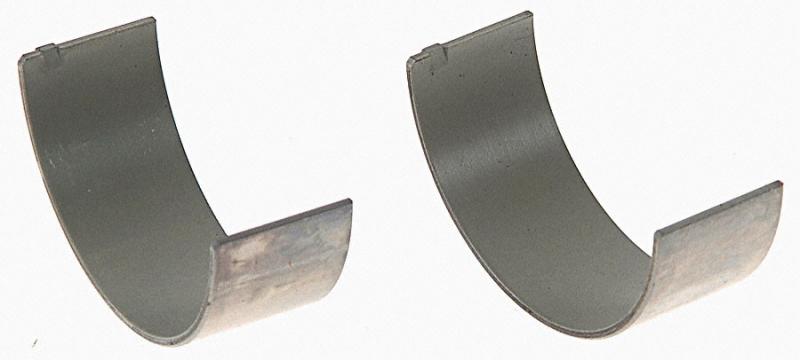

Name: Sealed Power 2555CP 20 Engine Connecting Rod Bearing
Brand: Sealed Power
SKU: 2555CP20
Price: 7.06 CAD
Availability: InStock

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Clevite CB663P20
Dana Commercial Vehicle Service Parts CB663P20
TRW Steering and Suspension Parts CB663P20
Hi-Tech Engine Components CB663P20
Sealed Power CB663P20

Note - This material offers less resistance to wear & corrosion than other materials.
Our standard material is comparable to competitors performance bearing
Popular for fatigue resistance & strength
Provides conformability required for older apps
Steel-backed bronze alloy lining with overplate
Utilizes ISO & QS certified manufacturing
Sealed PowerÂ© parts provide innovative designs, use leading edge materials and utilize ISO & QS certified manufacturing in order to deliver top quality products that meet the rigorous demands of today's modern engines.

Part Description	Engine Connecting Rod Bearing
Design Feature 1	Undersize Inch .020
Housing Bore Max (Inch)	2.2252
Housing Bore Max (MM)	56.5200
Housing Bore Min (Inch)	2.2247
Housing Bore Min (MM)	56.5070
Oil Clearance Max (Inch)	0.0028
Oil Clearance Max (MM)	0.0710
Oil Clearance Min (Inch)	0.0005
Oil Clearance Min (MM)	0.0130
Overall Length Max (Inch)	0.8420
Overall Length Max (MM)	21.3900
Standard Shaft Max (Inch)	2.1000
Standard Shaft Max (MM)	53.3400
Standard Shaft Min (Inch)	2.0990
Standard Shaft Min (MM)	53.3150
Wall Thickness Max (Inch)	0.0622
Wall thickness Max (MM)	1.5800
UPC	724956081578
Origin Country:	MX
Weight:	0.16Lb. (0.07 kg.)
Package Dimensions:	2.8" x 1" x 1.8" (7 cm x 2.5 cm x 4.4 cm)

1 Year Warranty
