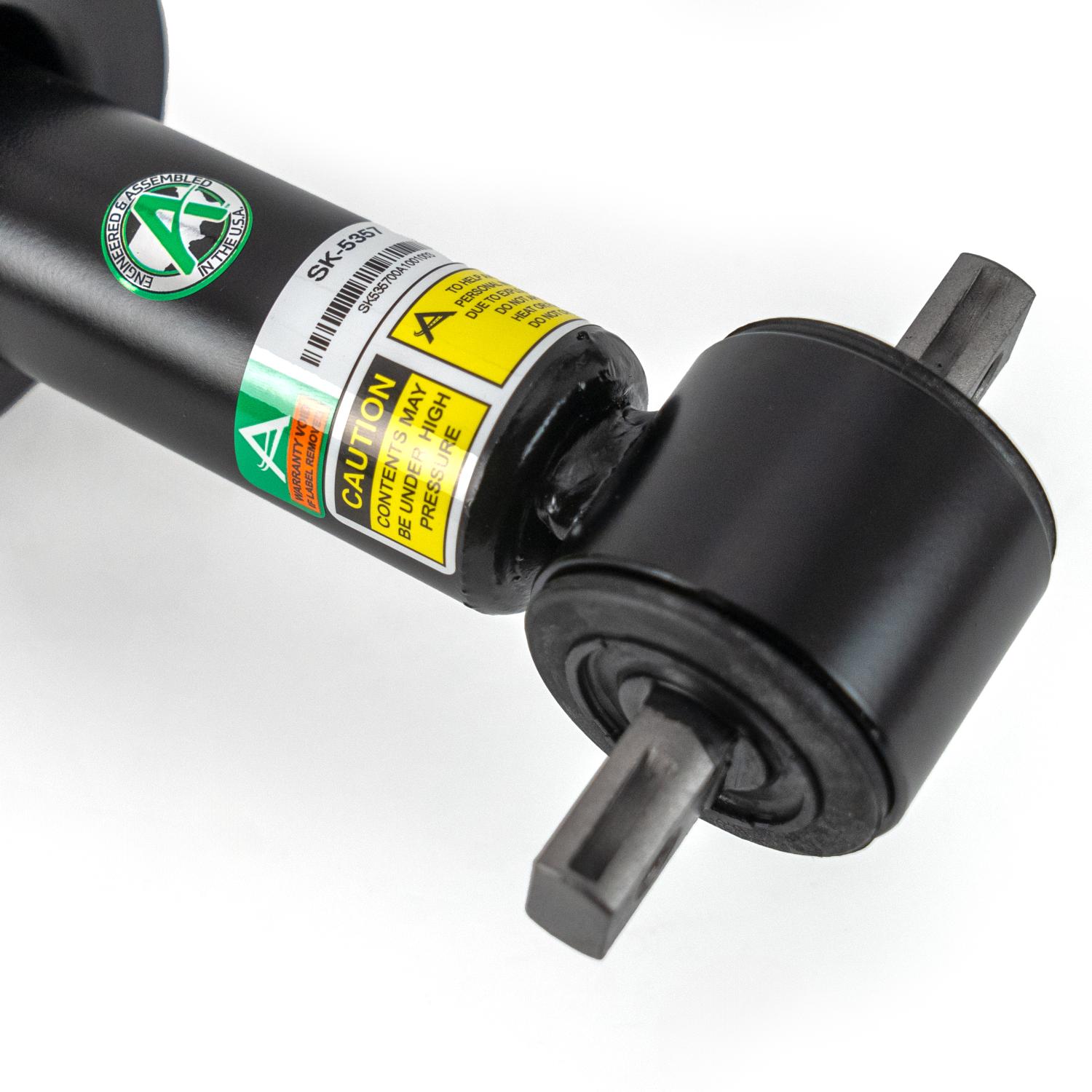

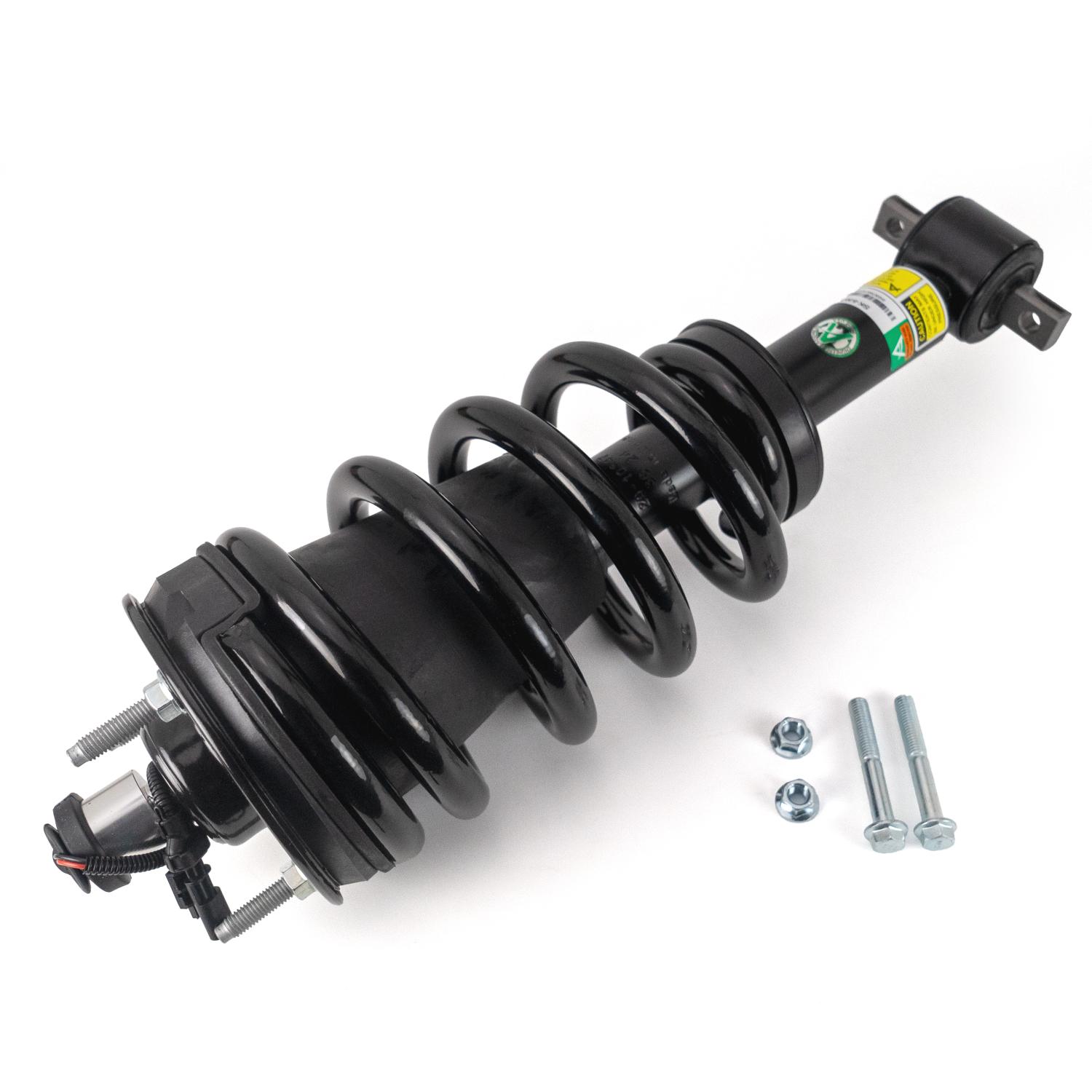

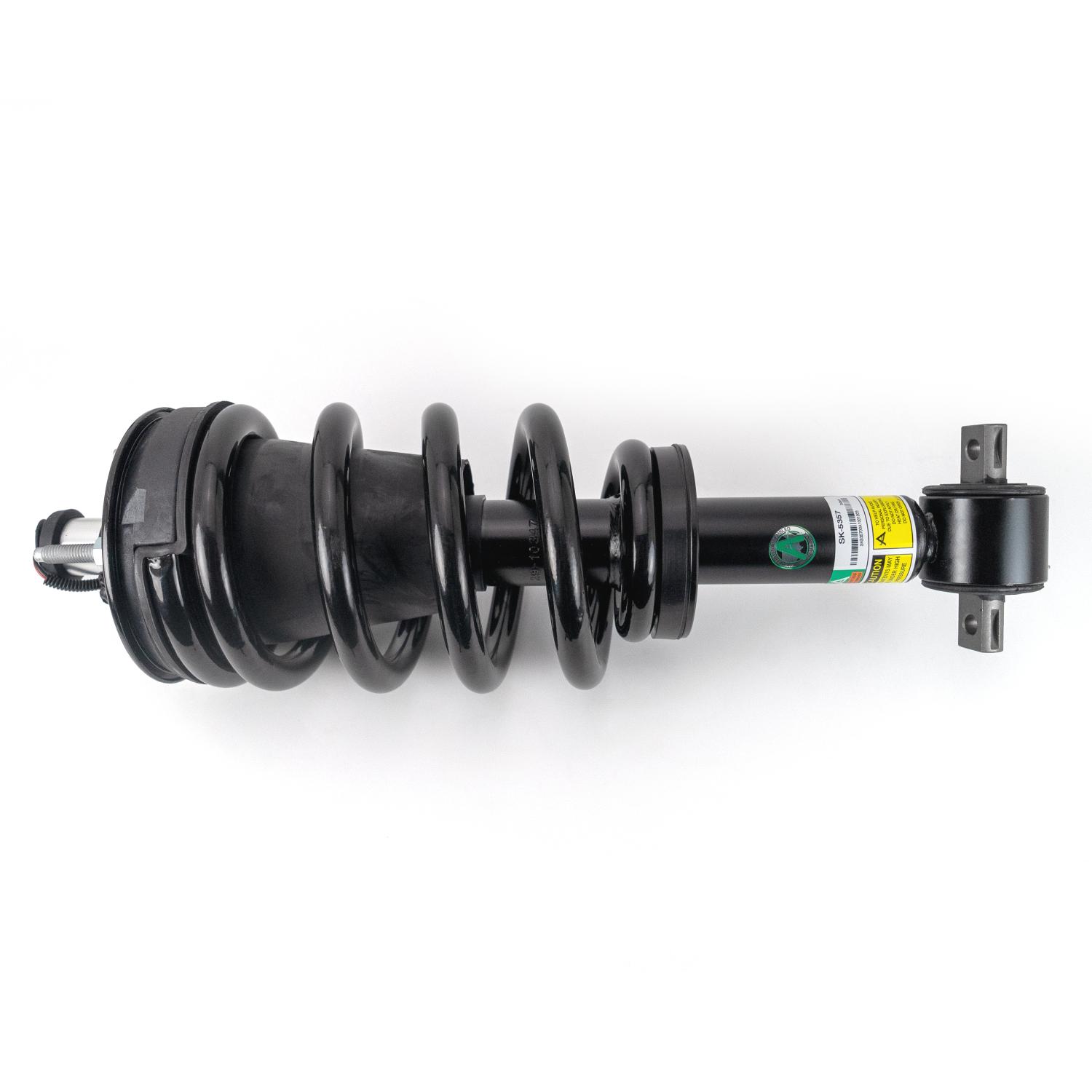

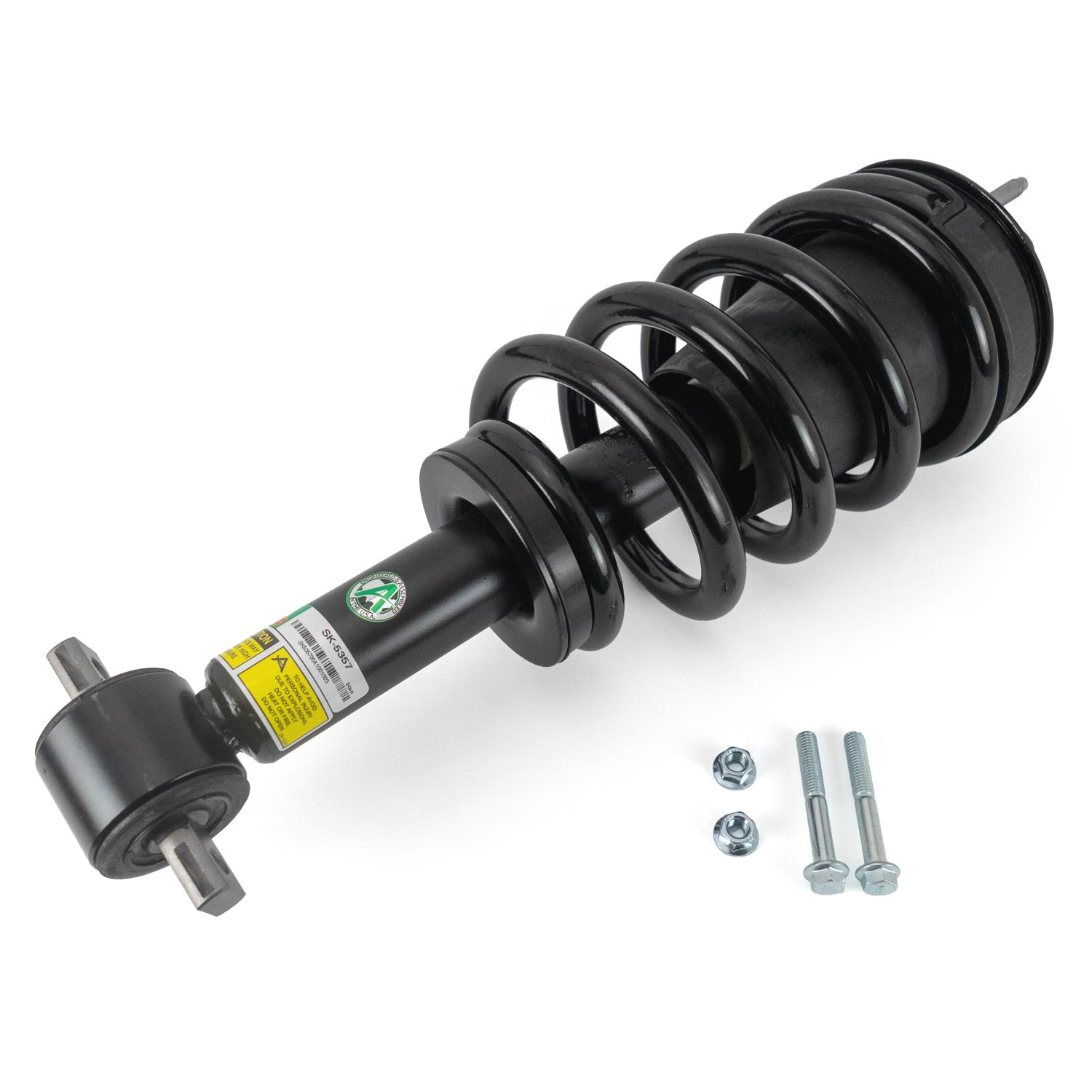

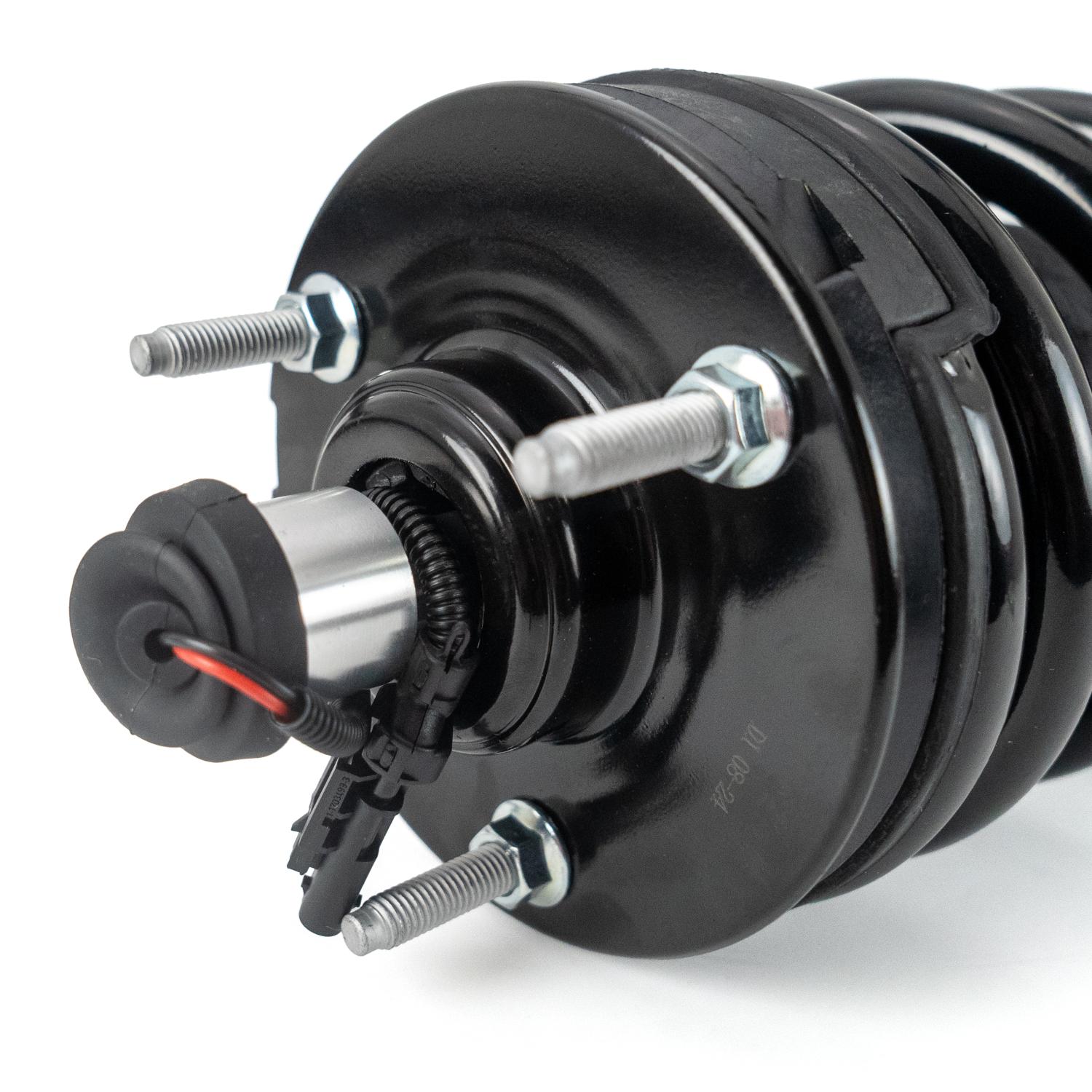

Name: Arnott SK-5357 Suspension Strut and Coil Spring Assembly
Brand: Arnott
SKU: arnott-sk5357
Price: 385.54 CAD
Availability: LimitedAvailability

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

General Motors 23464589
General Motors 84061228
General Motors 23312167
General Motors 23151123
General Motors 84176631
General Motors 84977478

Detailed Installation Manual
New custom-valved shock absorber
Pre-Assembled for Easy Installation
Designed and manufactured in the USA
Converts active to passive
Exclusively for GM K2XL (K2YG/C) w/MagneRide
Fits FRONT RT/LT
Replace in Pairs
Arnott designed new coil strut assembly for the front of 2015-2020 GM Short Wheel Base (4WD) and Long Wheel Base (RWD/4WD) SUVs K2XL (K2YG/C) with MagneRide, SK-5357 fits the right or left side of the vehicle. The new coil strut assembly is built with a custom-tuned damper including a new polyurethane bump stop, protective dust boot, and new top and bottom mounts along with coil resistor to eliminate any suspension dashboard warning lights. This replacement GM front shock is assembled by Arnott in the USA. Note: Includes spacer for increased vehicle weight.

Grade Type	Standard
Housing Material	Steel

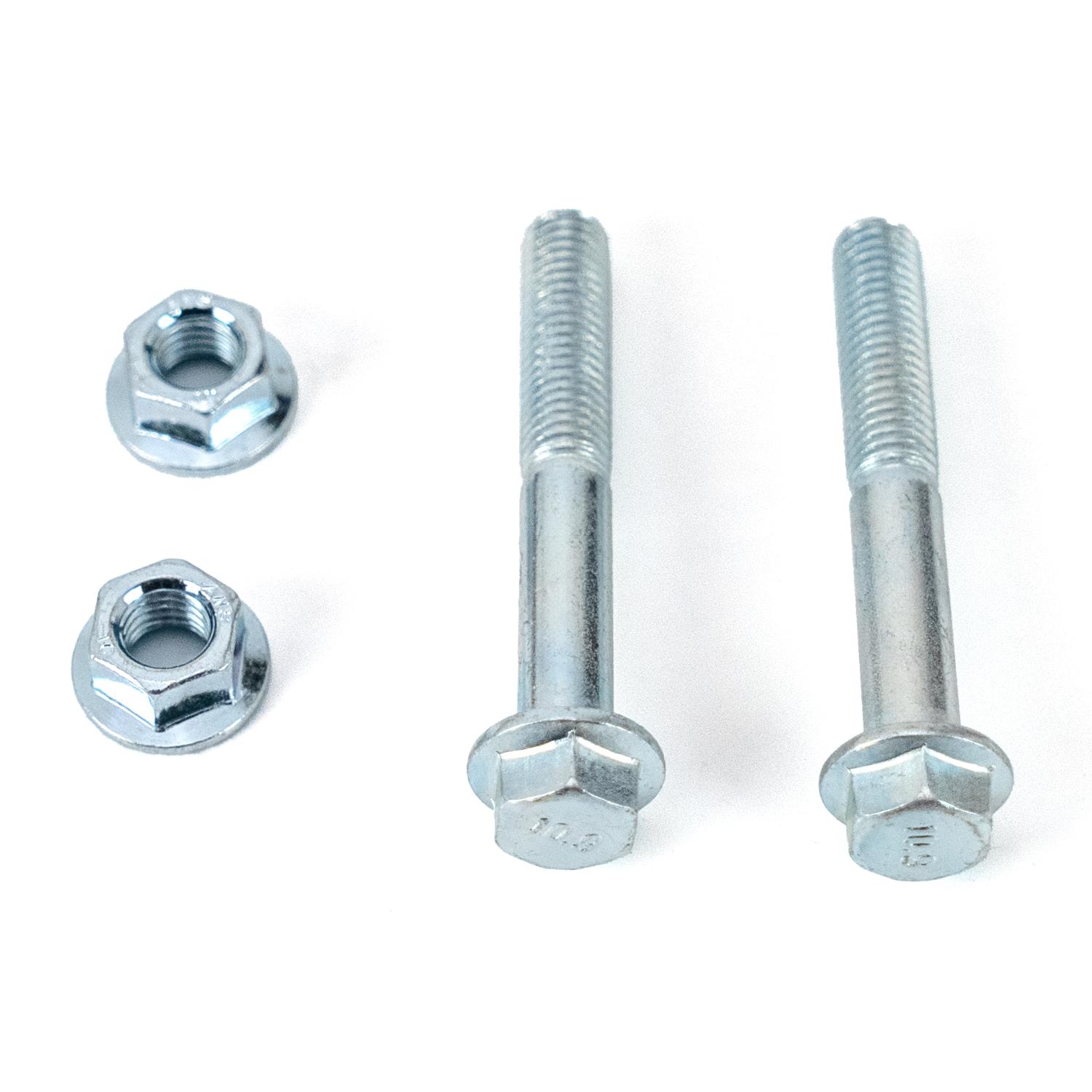

Mounting Hardware Included	Yes
Bearing Plate Included	Yes
Lower Mounting Isolator Included	Yes
Upper Mounting Isolator Included	Yes
Lower Mount Type	Cross Pin
Upper Mount Type	Stud
Adjustable	No
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Compressed Length	12.32
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Linear
New Or Remanufactured	New
Extended Length	17.8
Dust Shield Included	Yes
Dust Shield Material	Rubber
Travel Length	5.48
Springs Included	Yes
Progressive Spring Rate	No
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Adjustable Damping	No
Internal Construction Type	Twin-Tube
Heavy Duty Crimping Rings	No
Internal Damper Type	Hydraulic
Protective Aluminum Can	No
Air Adjustable	No
Air Bladder	No
Air Bladder Material	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Passive
Bladder(s) Included	No
Bladder Heavy Duty Crimping Rings Included	No
Bladder Sleeve(s) Included	No
Adjustable Compression	No
Adjustable Ride Height	No
Coil Spring Included	Yes
Shock/strut Color	Black
UPC	00815710039581
Origin Country:	US
Package Length:	25.8" (65.4 cm)
Package Width:	8.8" (22.2 cm)
Package Height:	7.5" (19.1 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott SK-5357 Suspension Strut and Coil Spring Assembly

New Suspension Shock Kit
