Arnott MR-3435 Suspension Strut in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

General Motors 25940740
General Motors 19300066
General Motors 19353951

MR-3435 is an OES front left or right magnetic strut for long and short wheelbase 2007-2014 GM SUVs (GMT9XX Platform) equipped with the GM magnetorheological damper system (Z95 RPO). This magnetically controlled strut from Arnott provides the same highly adaptive ride as the OE. The monotube damper is filled with magnetorheological fluid which is a synthetic hydrocarbon oil that contains iron particles that are easily magnetized. The damper includes two electromagnetic coils which, when turned on, instantly change the bonds between the magnetized iron particles to alter the viscosity and stiffness of the suspension. Arnott's new universal magnetic strut, which fits the left or right side, connects to the vehicle's ECU with no modifications. WARNING: Can
Connects to ECU
Direct replacement for GM magnetic strut
Fits short & long wheelbase vehicles with Z95 RPO
Installation Manual Available
OES design & components
Universal Strut Fits Left or Right Side
Exclusively for GM SUVs (GMT9XX Platform)
Replace in Pairs

Grade Type	Standard
Grade Type	Standard
Mounting Hardware Included	Yes
Mounting Hardware Included	No
Body Color	N/A
Body Color	N/A
Bearing Plate Included	No
Bearing Plate Included	No
Lower Mounting Isolator Included	No
Upper Mounting Isolator Included	No
Lower Mount Type	Cross Pin
Lower Mount Type	Cross Pin
Upper Mount Type	Stud
Upper Mount Type	Stud
Adjustable	No
Adjustable	No
Shock Spring Assisted	No
Shock Spring Assisted	Yes
Boot Included	Yes
Boot Included	N/A
Compressed Length	379.98
Boot Color	Black
Boot Color	N/A
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	No
Spring Isolators Included	Yes
Spring Rate Type	Linear
Spring Rate Type	N/A
New Or Remanufactured	New
New Or Remanufactured	New
Extended Length	452.88
Travel Length	72.9
Springs Included	No
Springs Included	Yes
Progressive Spring Rate	No
Progressive Spring Rate	No
Spring Seat Included	Yes
Spring Seat Included	Yes
Coil Over Springs Included	Yes
Coil Over Springs Included	N/A
Adjustable Damping	Yes
Adjustable Damping	Yes
Internal Construction Type	Monotube
Internal Construction Type	Monotube
Heavy Duty Crimping Rings	N/A
Heavy Duty Crimping Rings	N/A
Protective Aluminum Can	No
Protective Aluminum Can	No
Air Adjustable	No
Air Adjustable	No
Air Bladder	No
Air Bladder	N/A
Air Bladder Material	N/A
Air Bladder Material	N/A
Air Ride Suspension	No
Air Ride Suspension	No
Body End Measuring Point	Center Eye
Body End Measuring Point	Center Eye
Adjustable Rebound	No
Active or Passive Suspension	Active
Active or Passive Suspension	Active
Shock/strut Color	Black
UPC	00815710020022
Origin Country:	MX
Weight:	25Lb. (11.37 kg.)
Package Dimensions:	25" x 6.5" x 6.5" (63.5 cm x 16.5 cm x 16.5 cm)

2 Year Warranty - (Air Compressors 2 Years)

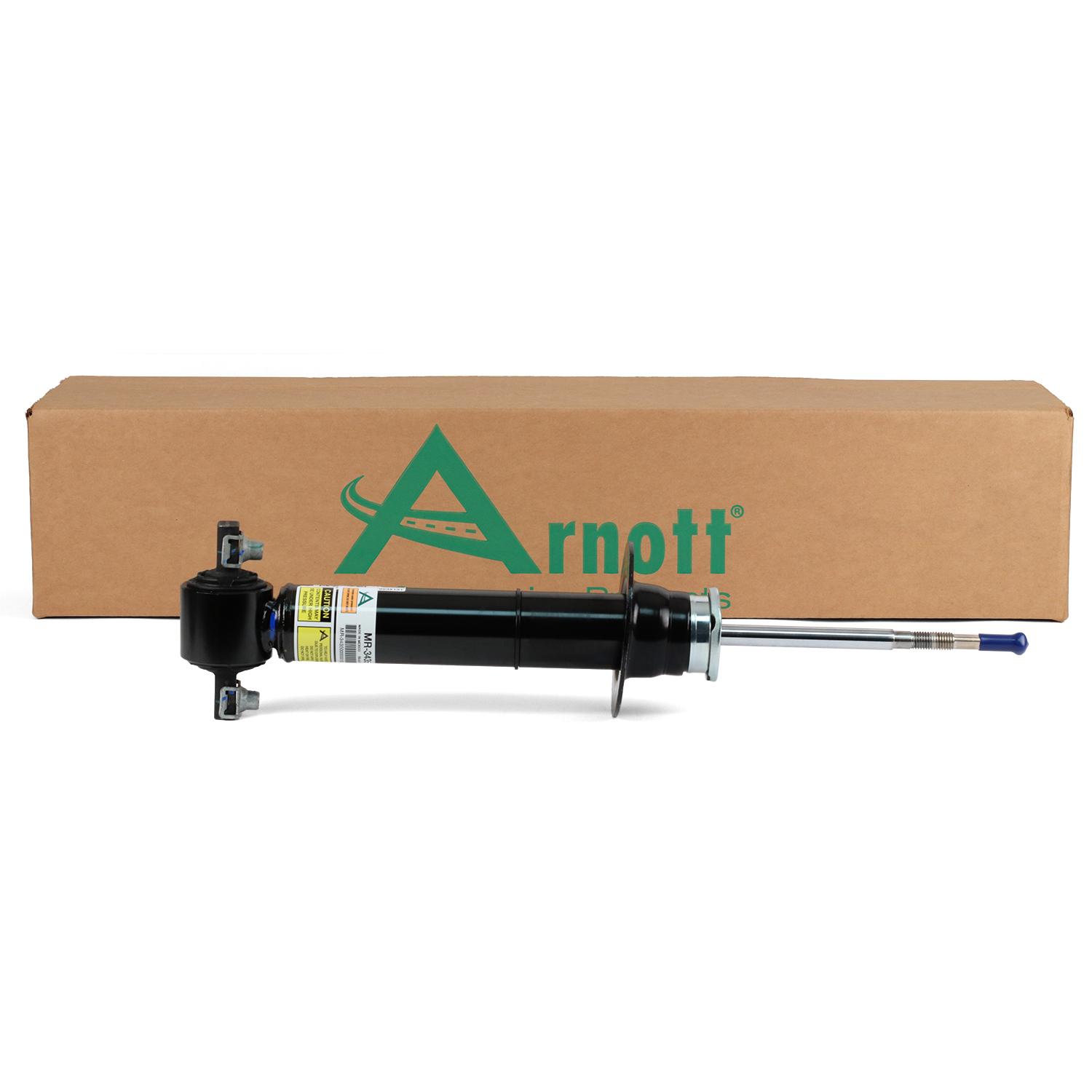

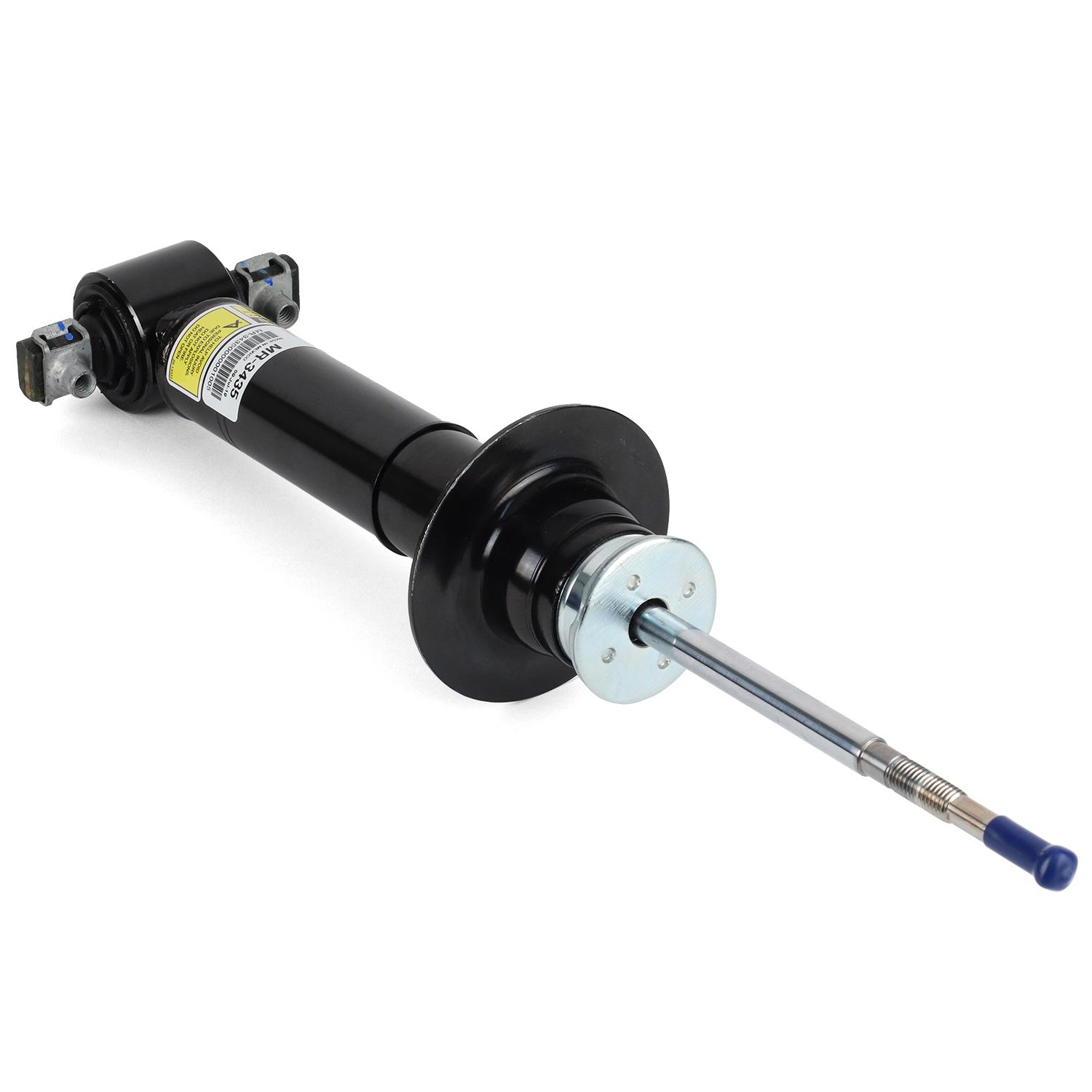

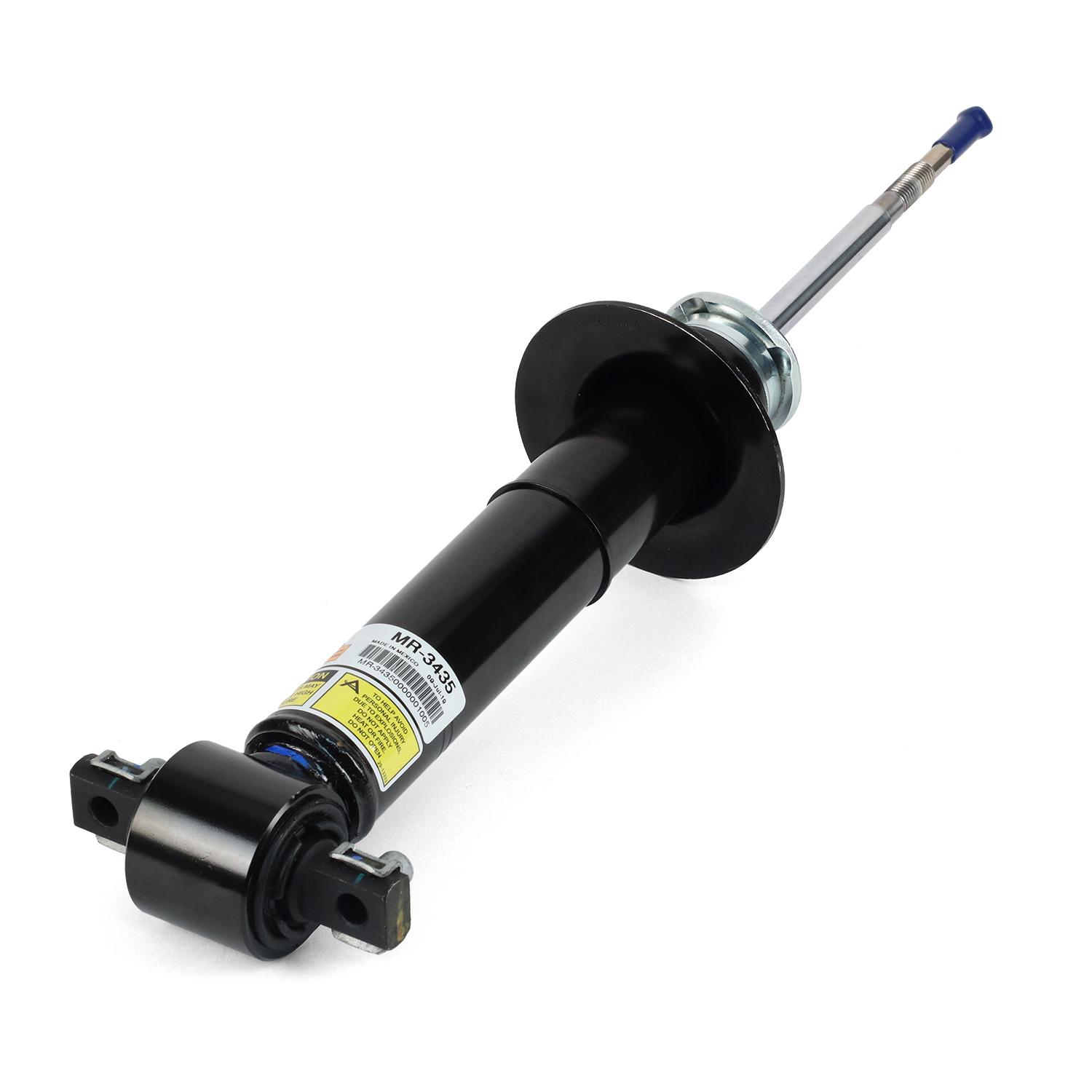

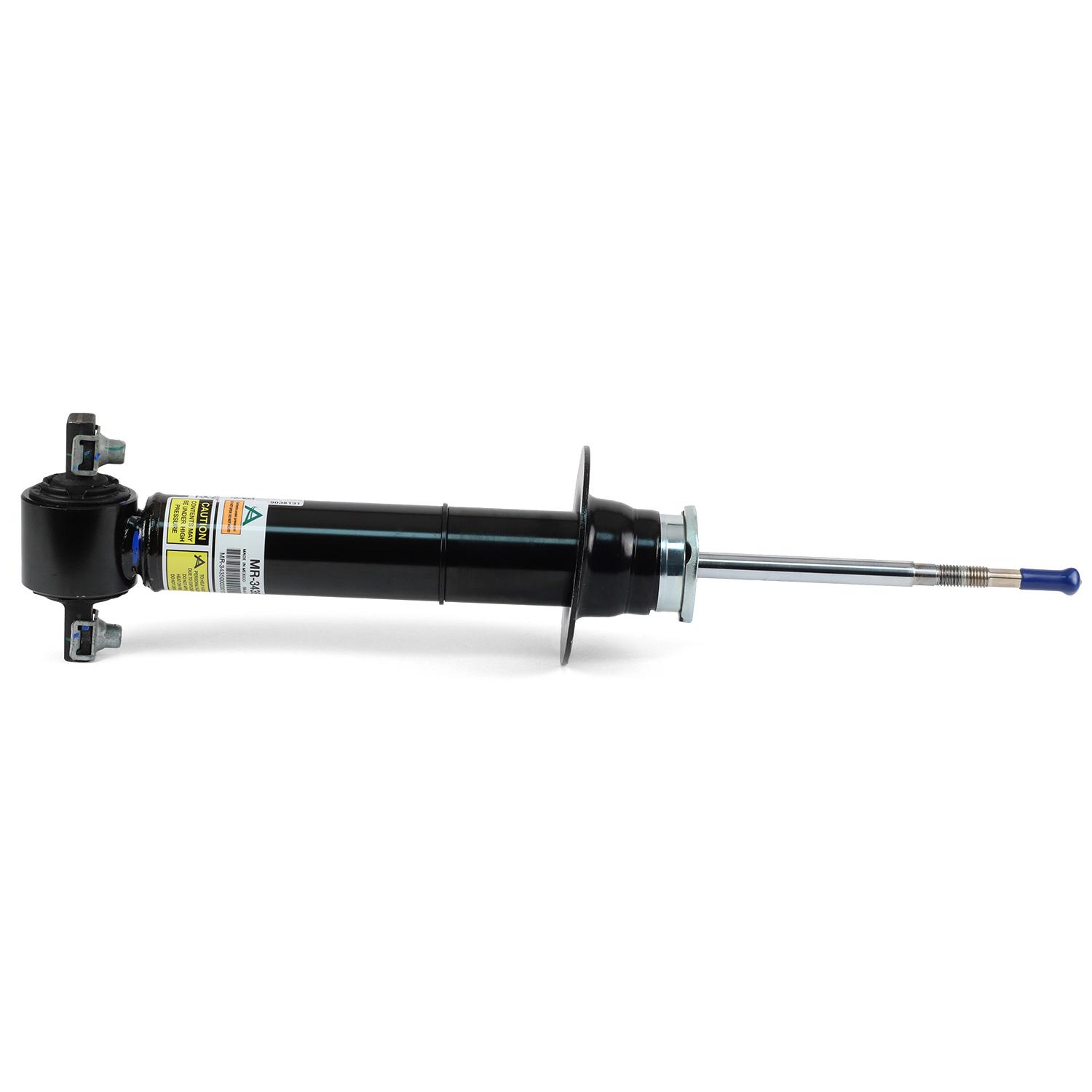

Arnott MR-3435 Suspension Strut

Magnetic Suspension Strut
