Arnott AS-2822 Suspension Air Strut in Canada

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

Detailed Instruction Manual Available
Durable ContiTech Air Bladder
Engineered & Assembled in the USA
Pre-Assembled for Easy Installation
Replace in Pairs

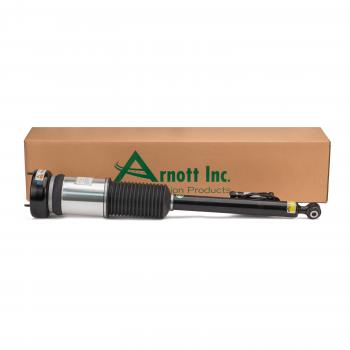

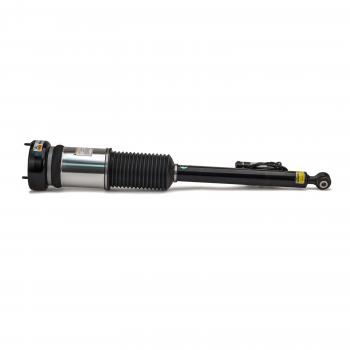

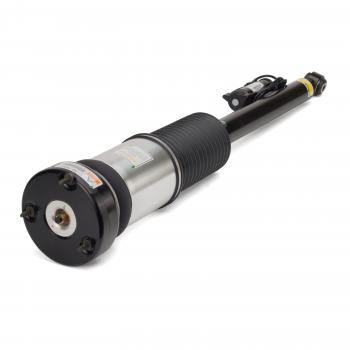

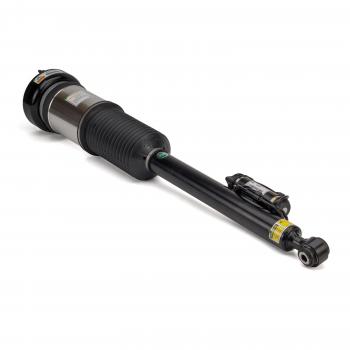

Arnott part AS-2821 (AS-2822 Left) is a new, not remanufactured, aftermarket rear strut assembly for the 2007-2013 Mercedes Benz S-Class (W221) and 2007-2014 CL-Class (W216) Sedan with AIRMATIC and both with and without 4MATIC. This replacement strut, designed and assembled in the USA, features a new custom-valved shock absorber assembled with a durable new Continental ContiTech rubber air spring bladder and no lower isolator seal which is subject to failure on the O.E. The strut is partly protected by an aluminum can and dust baffle to keep out debris and is assembled with heavy-duty crimping rings, seals, O-Rings and bump stop. This fully assembled air strut plugs directly into the vehicle's electronic connector and eliminates fault codes

Mounting Hardware Included	No
Bearing Plate Included	No
Lower Mounting Isolator Included	No
Upper Mounting Isolator Included	Yes
Lower Mount Type	Loop/Eyelet
Upper Mount Type	Stud
Gas Charged	Yes
Shock Spring Assisted	Yes
Boot Included	Yes
Boot Color	Black
Shock Absorber Rod End Measuring Point	Shoulder of Stud
Spring Isolators Included	Yes
Spring Rate Type	Progressive
New Or Remanufactured	New
Springs Included	N/A
Progressive Spring Rate	Yes
Spring Seat Included	No
Coil Over Springs Included	N/A
Adjustable Damping	No
Internal Damper Type	Hydraulic
Air Adjustable	Yes
Air Ride Suspension	Yes
Body End Measuring Point	Center Eye
Bladder Heavy Duty Crimping Rings Included	Yes
Adjustable Compression	No
UPC	00815710013741
Origin Country:	US
Weight:	21.5 lbs (9.78 kg)
Package Length:	39" (99.1 cm)
Package Width:	8.5" (21.6 cm)
Package Height:	7.5" (19.1 cm)

2 Year Warranty - (Air Compressors 2 Years)

Arnott AS-2822 Suspension Air Strut
