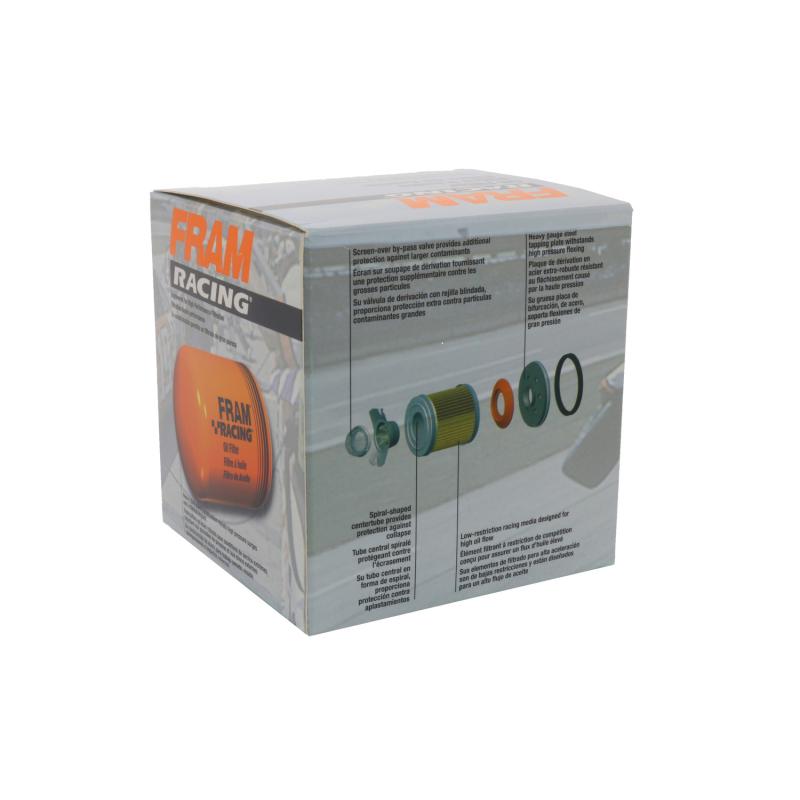

Fram HP5 Engine Oil Filter

Buyer fitment guide only intended as reference. Please use catalogue search by vehicle to ensure proper fitment.

• Hastings B255 BF614
• ACDelco TP920F
• Purolator F70085
• Case 18502
• Caterpillar 1R-0712 1R-0749
• Caterpillar 1R-0749
• Hastings BF614
• Caterpillar 1R-0712
• K&N HP-2003
• Luberfiner PH24R
• K&N SS-2004
• Wix 51243
• John Deere AR58956
• John Deere T-19044T
• John Deere T19044
• Caterpillar 1R0749
• K&N HP2003
• John Deere T19044T

• Compatible with all oil types, this filter is optimized for racing and high-performance street cars
• Low-restriction synthetic blend racing media designed for high oil flow. The media features 94% efficiency @20 microns for excellent engine protection**
• Maximum burst pressure: 350-500psi, depending on model***
• Maximum operating pressure: 200psi on all models***
• Recommended maximum oil flow: 10-18gpm, depending on model***
• Silicone anti-drain back valve.
• FRAM Racing© filters are designed with a heavy-gauge tapping plate and an extra-thick* steel can that is able to withstand the high pressure flexing caused by demanding driving conditions. A spiral-shaped center tube provides protection against collapse, and tough steel end caps add even more durability. A screen-over 22psi filter bypass valve provides additional protection against larger contaminants.**
